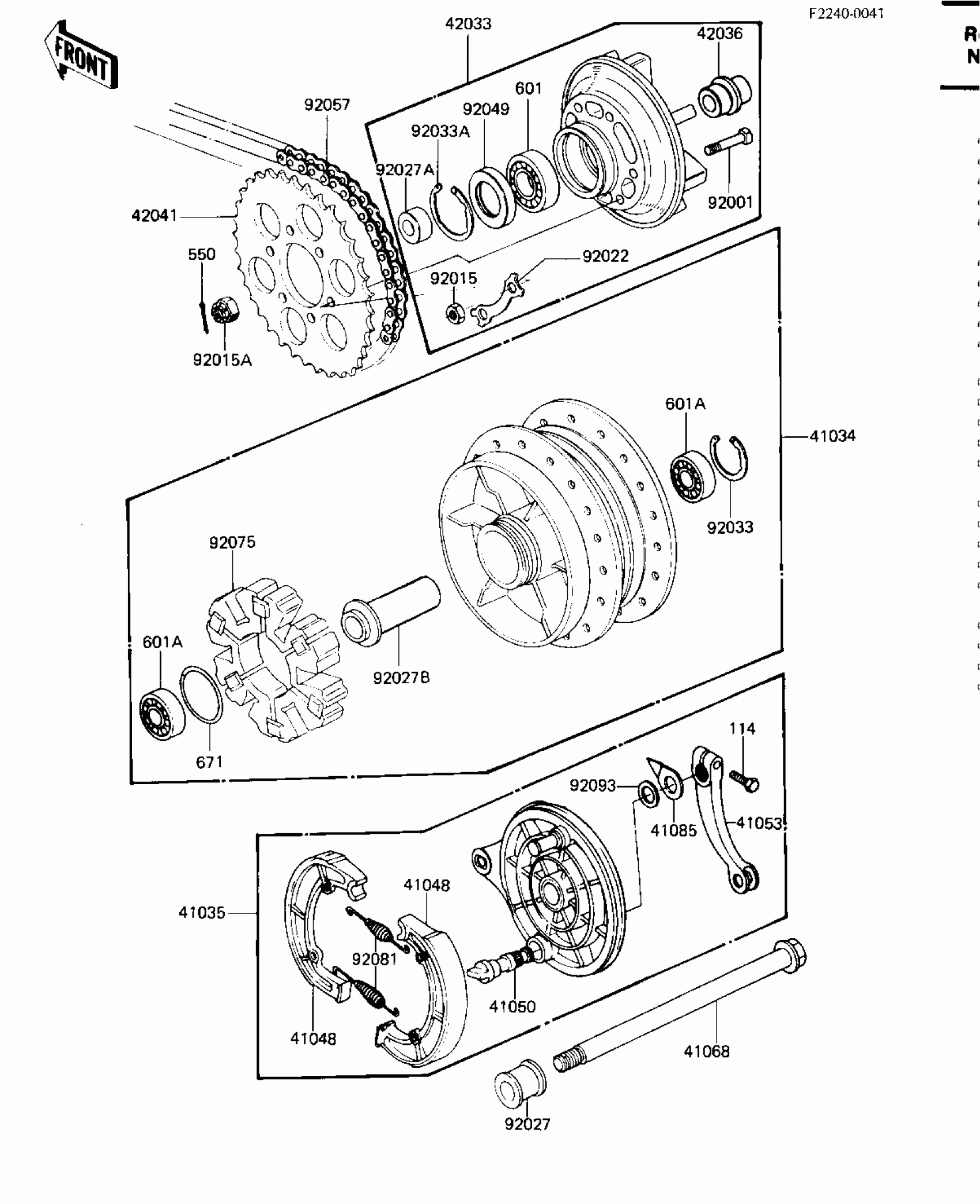

Kawasaki CSR Twin REAR HUB/BRAKE/CHAIN Diagram

#

Description
Price

41034

DRUM-ASSY,RR BRK

41034-1055

$530.03

41035

PANEL-ASY,RR BRK

41035-1056

$365.56

41048

SHOE,BRAKE

42019-012

$37.86

41050

CAM-BRAKE

41050-017

Unavailable

41053

LEVER-BRAKE CAM

42029-039

$67.01

41068

AXLE,RR

41068-1086

$80.14

41085

INDICATOR,BRAKE SHOE

41085-004

Unavailable

42033

COUPLING ASSY,RR HUB

42033-1021

$247.72

42036

SLEEVE,RR HUB L=33M/M

42036-1036

$37.43

42041

SPROCKET,REAR,38T

42041-1054

$119.67

92001

BOLT,10X41

92001-161

Unavailable

92015

NUT,10MM

42045-005

$6.08

92015A

NUT,16MM

92015-055

$11.03

92022

WASHER,LOCK

92022-1212

$4.84

92027

COLLAR,AXLE,L=28M/M

92027-1226

$47.61

92027A

COLLAR,RR AXLE L.H

92027-1262

Unavailable

92027B

COLLAR,RR WHEEL BRG

92027-1267

$30.27

92033

RING-SNAP,47MM

92033-1042

$3.25

92033A

RING-SNAP,62MM

92033-1044

$9.36

92049

SEAL-OIL,AJN40627

92050-027

$16.96

92057

CHAIN,530X106 SH-D

92057-1044

$433.04

92075

DAMPER,RR HUB SHOCK,"1000"

42014-033

$114.22

92081

SPRING,BRAKE SHOE

41049-012

$7.23

92093

SEAL,BRAKE CAM

41051-003

$3.25

114

BOLT HEX HEAD 8X28

114G0828

Unavailable

550

PIN-COTTER,4.0X35

550D4035

$1.57

601

BALL BEARING,#6206

601B6206

$17.84

601A

UNAVAILABLE IN PRICE BOOK

601B630322

Unavailable

671

O RING,65MM

671B2565

$6.75
