1982 Kawasaki CSR Twin Brake Pedal/torque Link Diagram

← All diagrams

Find the part on the Brake Pedal/torque Link diagram for your 1982 Kawasaki CSR Twin, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

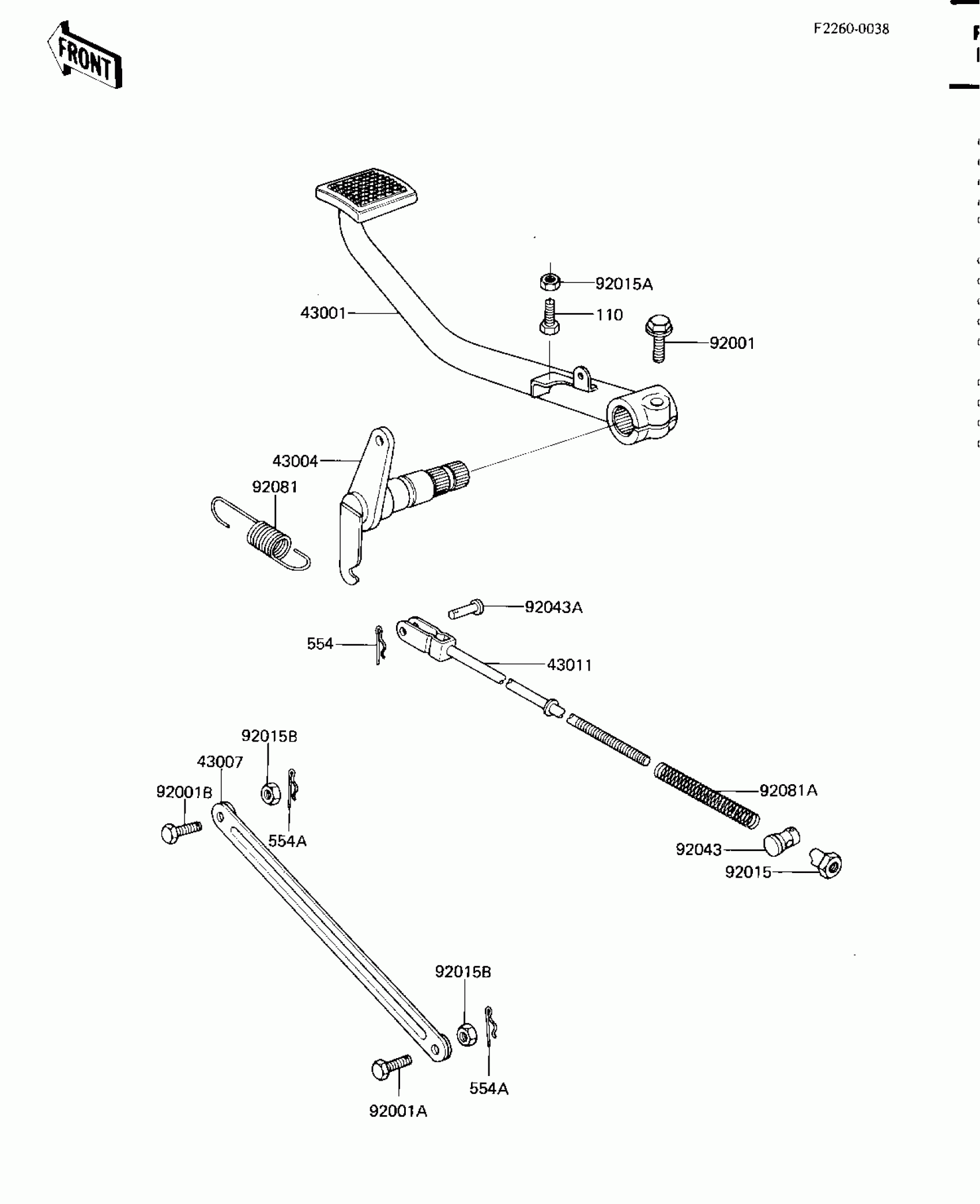

1982 Kawasaki CSR Twin Brake Pedal/torque Link Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

43001

LEVER-BRAKE

43001-1067

1
Out of stock

43004

SHAFT-BRAKE

43004-1027

1
Out of stock

43007

TORQUE ROD

43007-1016

1
Out of stock

43011

ROD,BRAKE

43011-1016

1
Out of stock

92001

BOLT-FLANGED,8X25

130G0825

1
Out of stock

92001A

BOLT,10X37

92001-1519

1
Out of stock

92001B

BOLT TORQUE LINK FITT

92003-103

1
Out of stock

92015

NUT,BRAKE ROD

92015-042

1
Out of stock

92015A

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92015B

NUT,FLANGED,10MM

92015-1428

1
Out of stock

92043

PIN,BRAKE ROD

92043-065

1
Out of stock

92043A

PIN,BRAKE ROD FITTING

92043-090

1
Out of stock

92081

SPRING,BRAKE PEDAL

43005-029

1
Out of stock

92081A

SPRING,BRAKE ROD

43012-001

1
Out of stock

110

BOLT-UPSET,6X20

112G0620

1
Out of stock

461

WASHER SPRING 10MM

461F1000

1
Out of stock

554

PIN,SNAP

554A0600

1
Out of stock

554A

PIN-SNAP,8MM

554A0800

1
Out of stock
