1982 Kawasaki CSR Twin Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 1982 Kawasaki CSR Twin, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

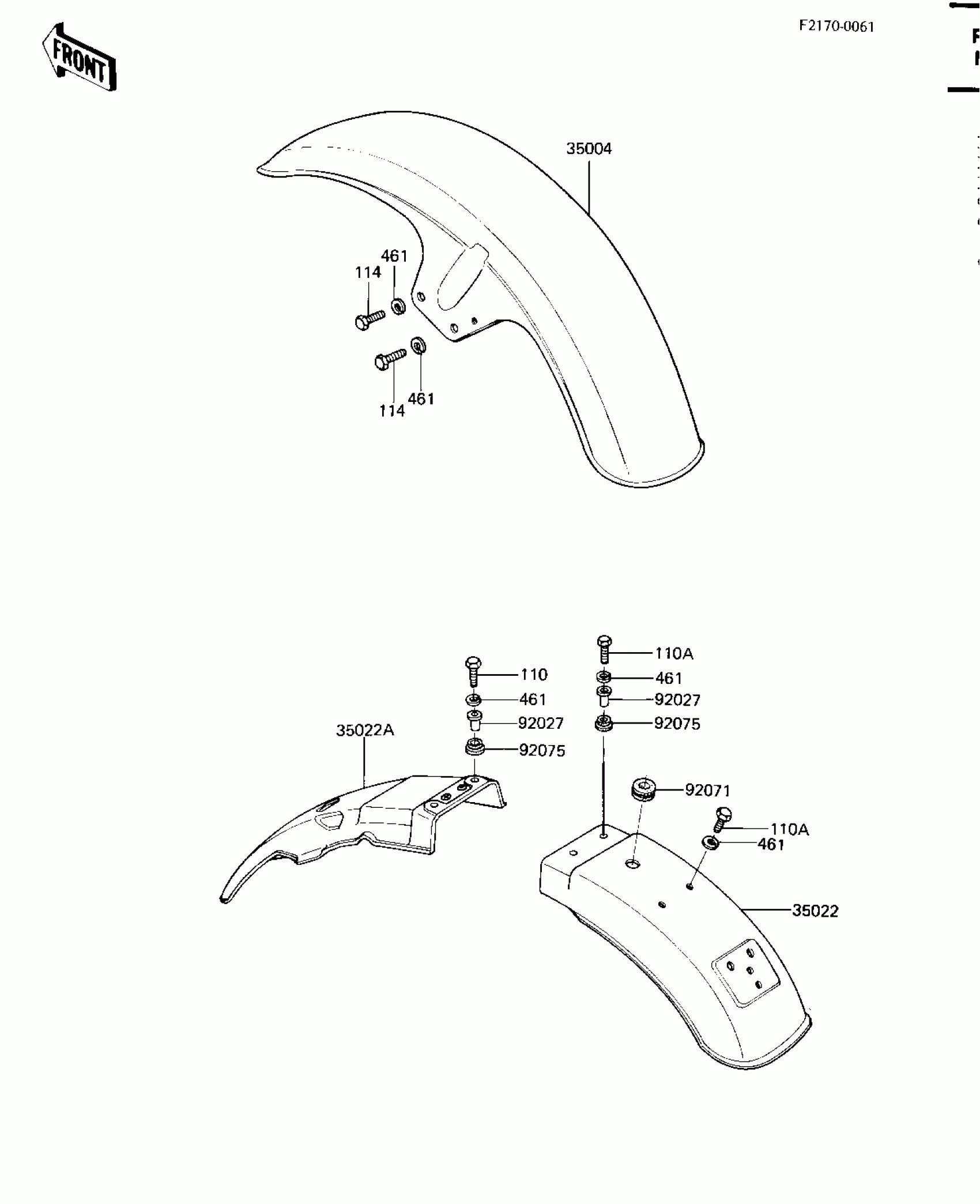

1982 Kawasaki CSR Twin Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35004

FENDER-FR

35004-1047

1
Out of stock

35022

FENDER-RR

35022-1059

1
Out of stock

35022A

FENDER-RR

35022-1087

1
Out of stock

92027

COLLAR

92027-194

1
Out of stock

92071

GROMMET,10MM

92071-019

1
Out of stock

92075

DAMPER

92075-277

1
Out of stock

110

BOLT-UPSET

112G0618

1
Out of stock

110A

BOLT 6X22

112B0622

1
Out of stock

114

BOLT-SMALL-UPSET,8X16

115G0816

1
Out of stock

461

WASHER SPRING 6MM

461F0600

1
Out of stock

461A

WASHER SPRING 8MM

461F0800

1
Out of stock
