1982 Kawasaki CSR Twin Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 1982 Kawasaki CSR Twin, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

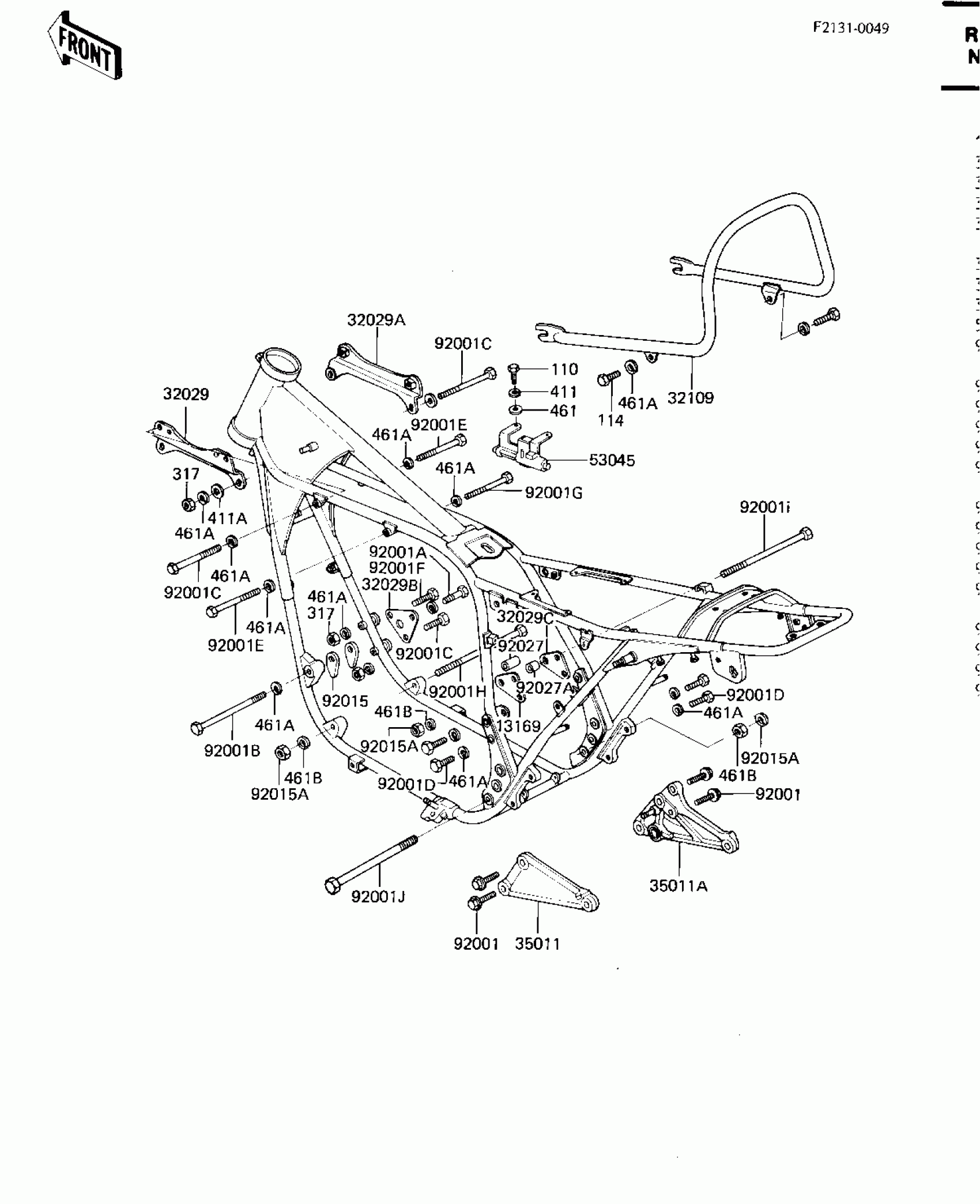

1982 Kawasaki CSR Twin Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13169

PLATE,REAR ENG MOUNT

13169-1048

1
Out of stock

32029

BRACKET-ENGINE

32029-1167

1
Out of stock

32029A

BRACKET-ENGINE

32029-1168

1
Out of stock

32029B

PLATE,ENG FIT,FRONT

32030-047

1
Out of stock

32029C

PLATE,ENG FIT,RR R.H

32030-049

1
Out of stock

32109

GRIP,FRAME

32109-1016

1
Out of stock

35011

STAY,MUFFLER,LH

35011-1076

1
Out of stock

35011A

STAY,MUFFLER,RH

35011-1077

1
Out of stock

53045

HOOK ASSY,HELMET

53045-1001

1
Out of stock

92001

BOLT,FLANGED,8X28

92001-1095

1
Out of stock

92001A

BOLT,HEX HEAD,10X50

92001-1254

1
Out of stock

92001B

BOLT,FLANGED,10X70

92001-1618

1
Out of stock

92001C

BOLT,FLANGED,8X60

92001-1581

1
Out of stock

92001D

BOLT,FLANGED,8X35

92001-1577

1
Out of stock

92001E

BOLT,10X45

92001-1182

1
Out of stock

92001F

BOLT,FLANGED,8X70

92001-1583

1
Out of stock

92001G

BOLT FLANGED 8X55

92001-1398

1
Out of stock

92001H

BOLT,FLANGED,10X325

92001-1654

1
Out of stock

92001I

BOLT

92003-185

1
Out of stock

92001J

BOLT

92003-186

1
Out of stock

92015

NUT

92016-055

1
Out of stock

92015A

NUT,LOCK,10MM

92019-021

1
Out of stock

92027

COLLAR

92027-245

1
Out of stock

92027A

COLLAR

92027-246

1
Out of stock

110

BOLT-UPSET,6X12

112G0612

1
Out of stock

114

BOLT-SMALL-UPSET,8X14

115B0814

1
Out of stock

317

NUT-HEX-SMALL,8MM

317B0800

1
Out of stock

411

WASHER PLAIN 6MM

411B0600

1
Out of stock

411A

WASHER PLAIN 8MM

411B0800

1
Out of stock

461

WASHER SPRING 6MM

461F0600

1
Out of stock

461A

WASHER SPRING 8MM

461F0800

1
Out of stock

461B

WASHER SPRING 10MM

461F1000

1
Out of stock
