Partiron

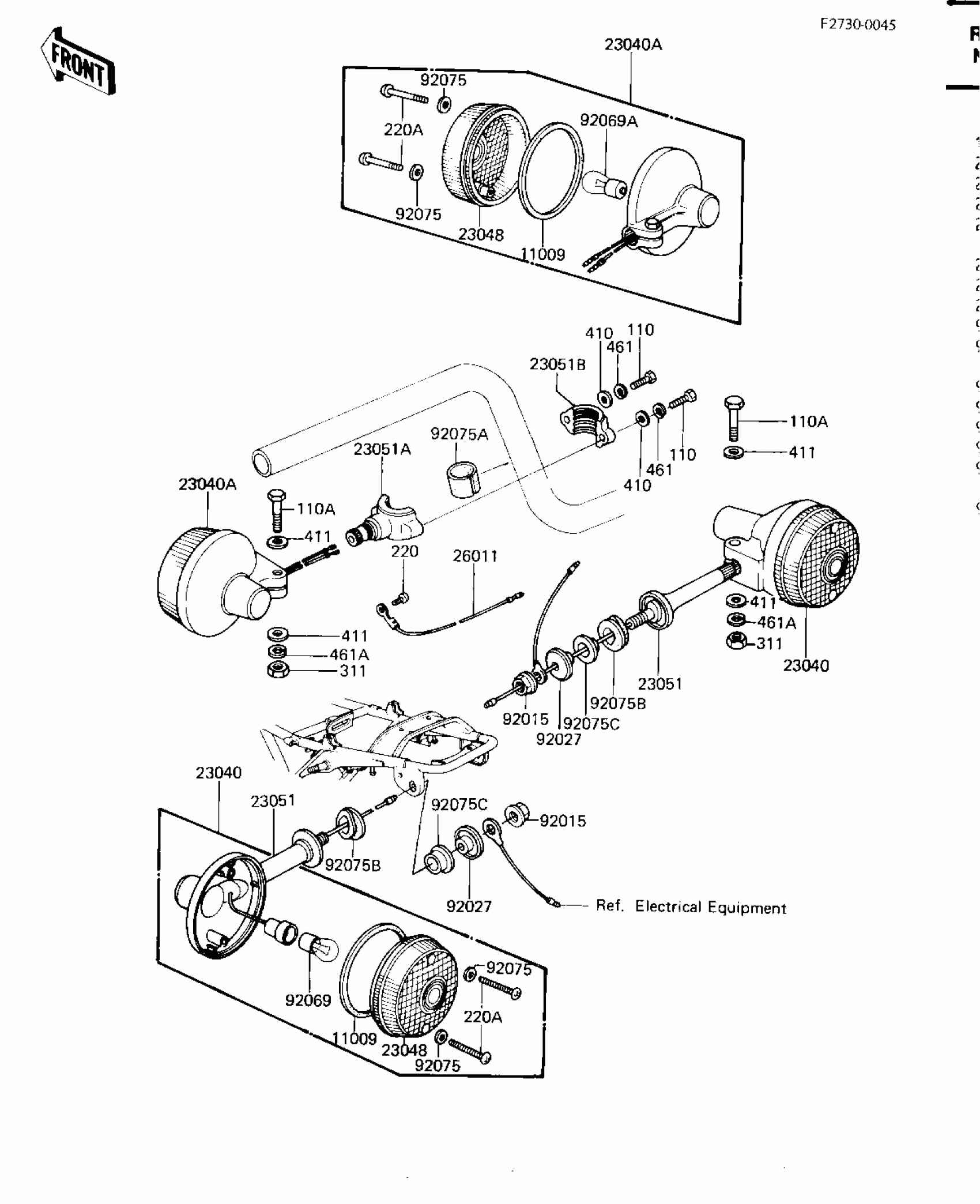

Kawasaki CSR Twin TURN SIGNALS Diagram

#

Description
Price

11009

GASKET,SIGNAL LAMP

23050-003

$5.80

23040

LAMP-SIGNAL

23040-054

Unavailable

23040A

LAMP,FRNT,TURN SIGNAL

23040-1004

$139.11

23048

LENS-SIGNAL LAMP,"045-6588"

23048-1001

$10.57

23051

BRACKET,TURN SIGNAL.L

23051-053

Unavailable

23051A

BRACKET-SIGNAL LAMP,FR

23051-1004

Unavailable

23051B

BRACKET-SIGNAL LAMP,FR

23051-1013

$20.20

26011

WIRE-LEAD,SIGNAL LAMP

26011-061

Unavailable

92015

NUT,FLANGED,10MM

92015-1428

$5.00

92027

COLLAR

92027-147

$15.20

92069

BULB,12V 32CP(23W)

92069-055

$5.18

92069A

BULB,12V 32/3CP(23/8W)

92069-060

$9.70

92075

WASHER,PLAIN,4MM

23058-002

$2.49

92075A

DAMPER

23066-003

$7.71

92075B

DAMPER,LAMP

92075-128

$5.86

92075C

DAMPER RUBBER,SIG LM

92075-158

$5.47

110

BOLT

110N0516

Unavailable

110A

BOLT-UPSET

112G0630

Unavailable

220

SCREW PAN HEAD 3X5

220B0305A

$0.48

220A

SCREW-PAN HEAD,4X20

220E0420A

Unavailable

311

NUT 6MM

311B0600

Unavailable

410

WASHER-PLAIN-SMALL,5MM

410D0500

$1.14

411

WASHER PLAIN 6MM

411B0600

Unavailable

461

WASHER SPRING 5MM

461F0500

Unavailable

461A

WASHER SPRING 6MM

461F0600

Unavailable
