1972 Yamaha CS5 (CS5) Transmission Diagram

← All diagrams

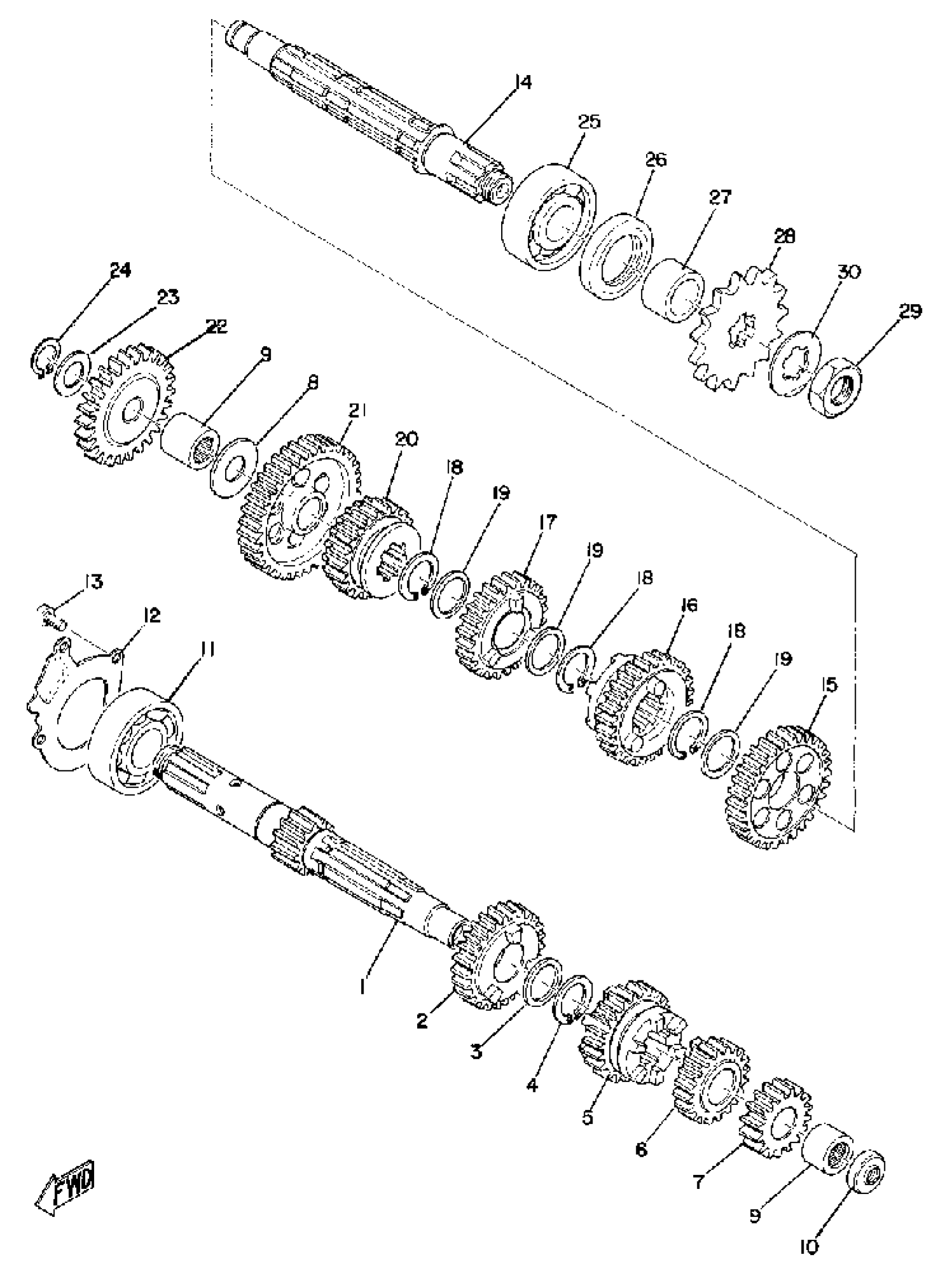

Find the part on the Transmission diagram for your 1972 Yamaha CS5 (CS5), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha CS5 (CS5) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, MAIN

(174-17411-01-00)

1
Out of stock

2

GEAR, 5TH PINION

(174-17151-00-00)

1
Out of stock

3

WASHER PLATE 132172160000

90201-20266-00

1
Out of stock

4

CIRCLIP (525)

93410-20038-00

1

$2.62

In stock

5

GEAR, 4TH PINION

(174-17141-00-00)

1
Out of stock

6

GEAR, 3RD PINION

(174-17131-00-00)

1
Out of stock

7

GEAR, 2ND PINION

(174-17121-00-00)

1
Out of stock

8

SHIM, DRIVE AXLE

164-17427-00-06

1

$5.15

In stock

9

BRG,CYL-CAL ROLLER 16G TM

93315-31502-00

1
Out of stock

10

OIL SEAL(12E)

93109-08061-00

1

$5.68

In stock

11

BEARING(3BC)

93306-30437-00

1

$55.54

In stock

12

PLATE, COVER

(248-17471-01-00)

1
Out of stock

13

SCREW,PAN HEAD (646)

98580-05012-00

1

$5.60

In stock

14

SCREW,PAN HEAD (646)

98580-05012-00

1

$5.60

In stock

15

UNAVAILABLE IN PRICE BOOK

174-27221-00-00

1
Out of stock

16

GEAR, 3RD WHEEL

(174-17231-00-00)

1
Out of stock

17

GEAR, 4TH WHEEL

(174-17241-00-00)

1
Out of stock

18

CIRCLIP (525)

93410-20038-00

1

$2.62

In stock

19

WASHER PLATE 132172160000

90201-20266-00

1
Out of stock

20

GEAR, 5TH WHEEL

(174-17251-00-00)

1
Out of stock

21

GEAR, 1ST WHEEL

(174-17211-01-00)

1
Out of stock

22

GEAR, KICK IDLE

403-15651-00-00

—

$41.88

In stock

23

WASHER

(132-15653-00-10)

1
Out of stock

24

CIRCLIP(13M)

99009-13400-00

—

$5.66

In stock

25

—

$54.91

In stock

26

OIL SEAL

93106-28043-00

—

$11.88

In stock

27

COLLAR

90387-20346-00

1
Out of stock

28

SPROCKET, DRIVE (13T)

93822-13213-00

—

$19.66

In stock

28

SPROCKET,DRIVE 14T(5N01746141)

93822-14043-00

—
Out of stock

28

SPROCKET,DRIVE 15T(1741746150)

93822-15065-00

—
Out of stock

28

—

$18.58

In stock

29

NUT,SPEC'L SHAPE

90179-16018-00

—

$11.26

In stock

30

WASHER, LOCK (1L8)

90215-16127-00

—

$8.91

In stock
