1972 Yamaha CS5 (CS5) Shifter A Diagram

← All diagrams

Find the part on the Shifter A diagram for your 1972 Yamaha CS5 (CS5), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

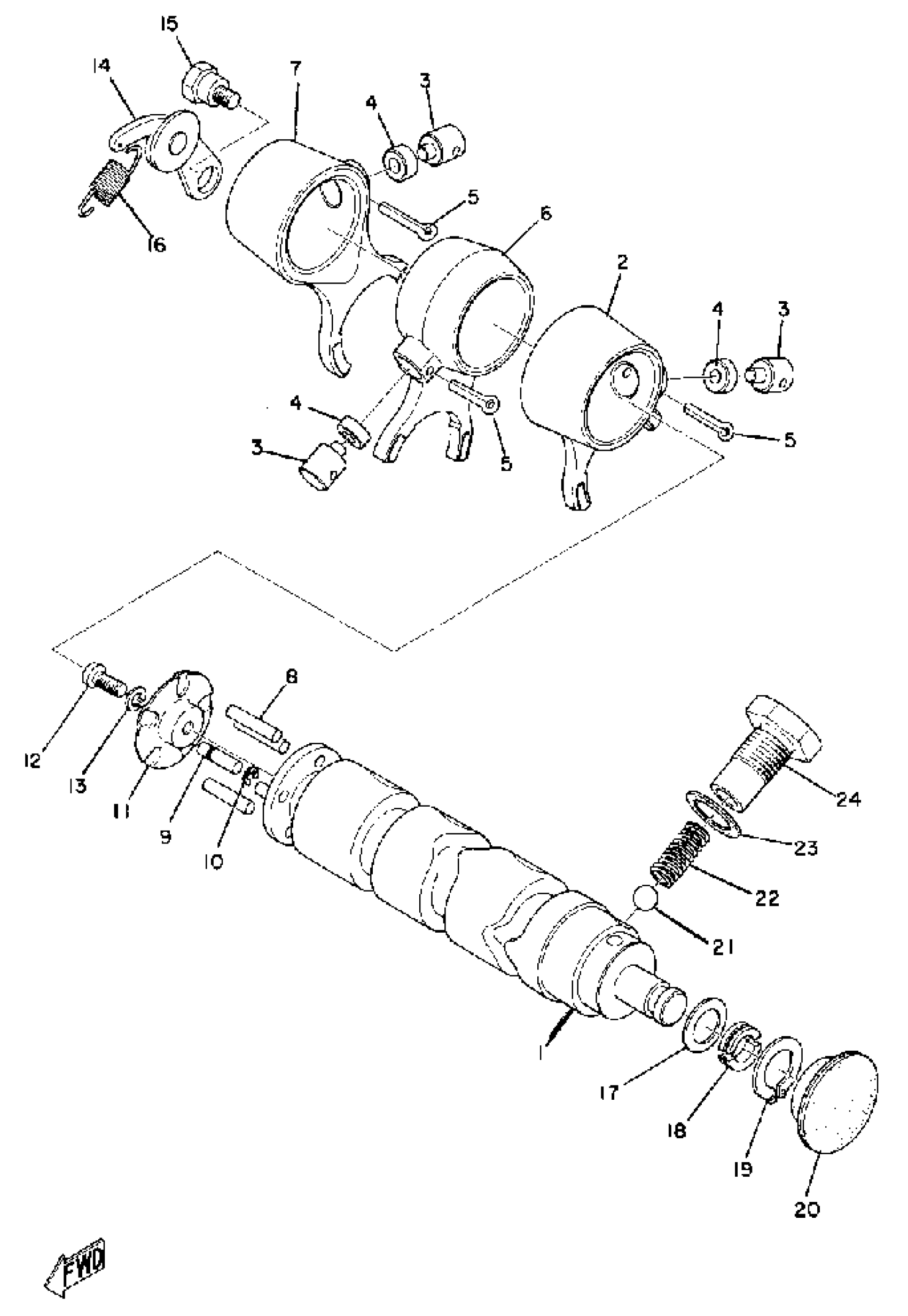

1972 Yamaha CS5 (CS5) Shifter A Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFTER ASSEMBLY

(174-18500-03-00)

1
Out of stock

1

CAM, SHIFT

(174-18541-03-00)

1
Out of stock

2

FORK, SHIFT 1

(174-18511-00-00)

1
Out of stock

3

PIN, STRAIGHT

(90250-10020-00)

1
Out of stock

4

ROLLER, CAM FOLWR

(164-18551-00-00)

1
Out of stock

5

PIN, COTTER

91490-25020-00

1

$2.94

In stock

6

FORK, SHIFT 2

(174-18512-00-00)

1
Out of stock

7

FORK, SHIFT 3

(174-18513-00-00)

1
Out of stock

8

PIN,DOWEL (620)

93604-22050-00

1

$6.68

In stock

9

. PIN, SPEC''L SHAPE (174-18544-00)

90249-04039-00

1
Out of stock

10

. CIRCLIP, E-TYPE

93430-03014-00

1
Out of stock

11

PLATE, SIDE

164-18561-00-00

1

$5.42

In stock

12

SCREW,PAN HEAD (646)

98580-05012-00

1

$5.60

In stock

13

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

14

STOPPER LEVER ASSY

132-18140-01-00

1

$14.20

In stock

15

BOLT

90109-06239-00

—

$5.77

In stock

16

SPRING, TENSION (260)

90506-09112-00

—
Out of stock

17

WASHER PLATE 164185720000

90201-12166-00

—

$6.29

In stock

18

HOLDER, SHIFT CAM

307-18571-00-00

1
Out of stock

19

CIRCLIP

93440-15012-00

—
Out of stock

20

PLUG, BLIND

(307-18533-00-00)

1
Out of stock

21

BALL

93505-16006-00

—

$2.22

In stock

22

SPRING, COMPRESION

90501-12750-00

1
Out of stock

23

WASHER, PROTECTOR

4F4-14766-00-00

—

$6.11

In stock

24

BOLT

90109-14385-00

—

$13.66

In stock
