1972 Yamaha CS5 (CS5) Clutch Diagram

← All diagrams

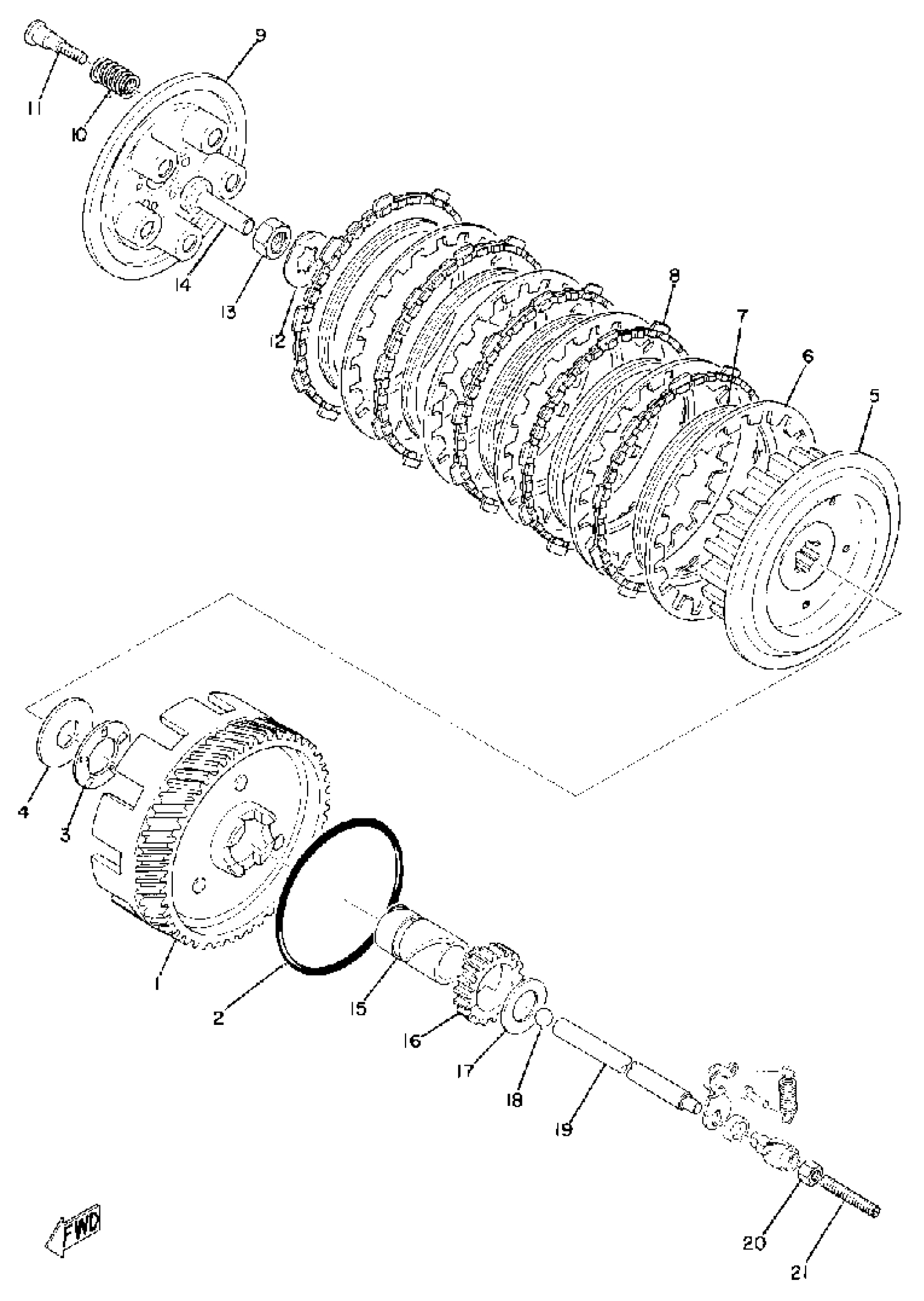

Find the part on the Clutch diagram for your 1972 Yamaha CS5 (CS5), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha CS5 (CS5) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PRI DRVN GEAR

(174-16105-01-00)

1
Out of stock

1

CLUTCH ASSEMBLY

(174-16301-02-00)

1
Out of stock

2

O-RING (173)

93210-85075-00

1

$4.52

In stock

3

. BEARING, FLAT #41

93341-22603-00

1
Out of stock

4

. PLATE, THRUST 1

174-16154-00-00

1
Out of stock

5

. BOSS, CLUTCH

174-16371-01-00

1
Out of stock

6

PLATE, CLUTCH 1

336-16324-10-00

1

$17.51

In stock

7

RING, CUSHION

137-16367-00-00

1

$14.80

In stock

8

PLATE, FRICTION

3HA-16321-00-00

1

$26.75

In stock

9

PLATE, PRESSURE

132-16351-00-00

1

$50.51

In stock

10

1

$6.17

In stock

11

SCREW, SPECL SHAPE

(90149-05147-00)

1
Out of stock

12

WASHER, LOCK (1L8)

90215-16127-00

1

$8.91

In stock

13

NUT,SPEC'L SHAPE

90179-16018-00

1

$11.26

In stock

14

ROD, PUSH

174-16356-00-00

1
Out of stock

15

COLLAR (174-16181-00)

90387-20439-00

1
Out of stock

16

GEAR, KICK PINION

251-15631-01-00

1
Out of stock

17

PLATE, THRUST 2

174-16164-00-00

1
Out of stock

18

BALL

93505-16006-00

—

$2.22

In stock

19

ROD, PUSH 2

237-16357-01-00

1
Out of stock

20

NUT(650)

95380-06700-00

—

$6.17

In stock

21

BOLT SET 241163430000

90113-06013-00

—
Out of stock
