1970 Yamaha CS3C (CS3C) Oil Tank Diagram

← All diagrams

Find the part on the Oil Tank diagram for your 1970 Yamaha CS3C (CS3C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

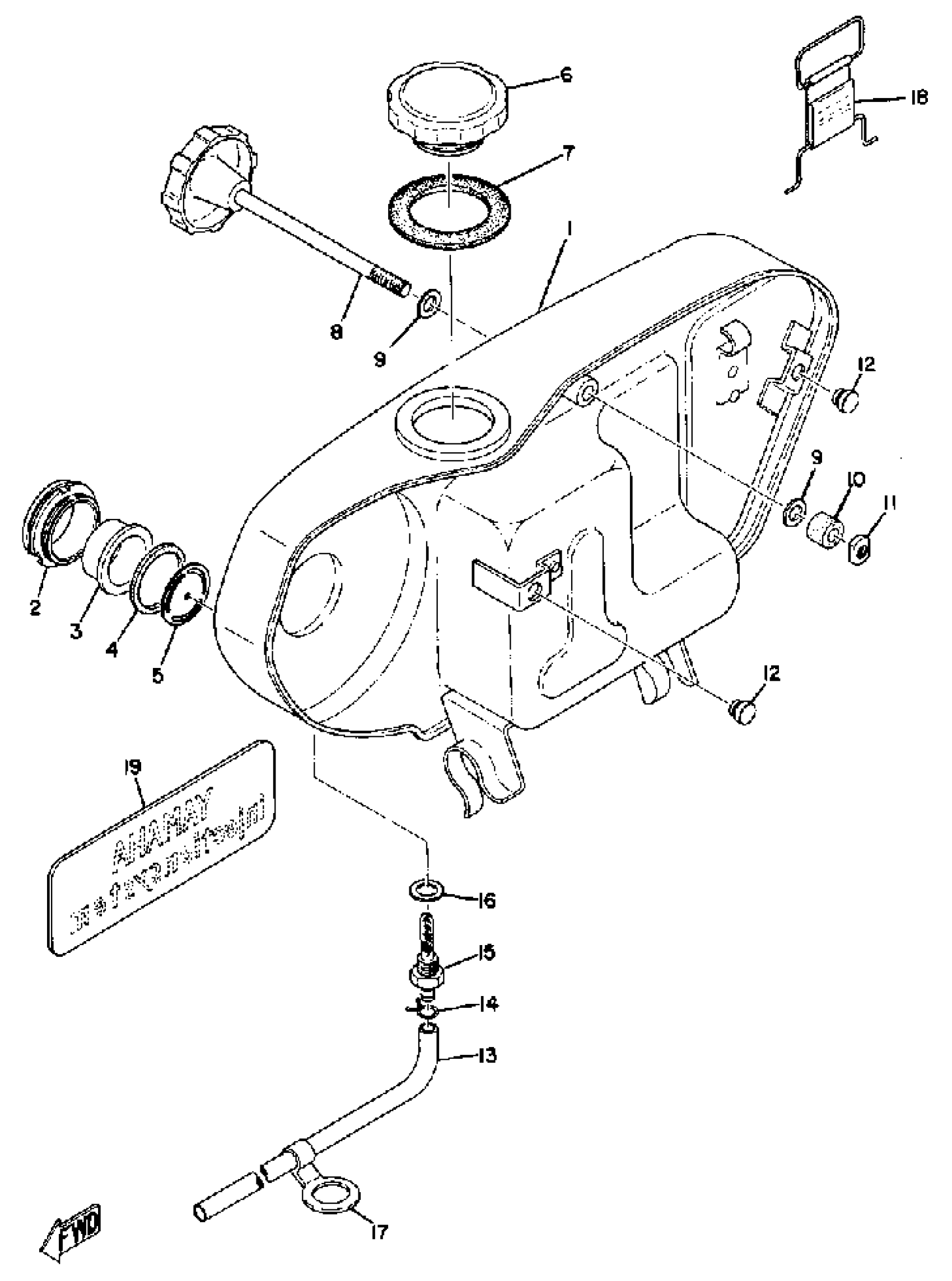

1970 Yamaha CS3C (CS3C) Oil Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK, OIL

(237-21751-00-04)

1
Out of stock

1

TANK, OIL

(237-21751-00-05)

1
Out of stock

2

NUT,SPEC'L SHAPE

90179-36107-00

1
Out of stock

3

LENS, LEVEL GAUGE

137-21764-00-00

1
Out of stock

4

GASKET, LEVEL GAUGE

(137-21763-00-00)

1
Out of stock

5

GAUGE, LEVEL

(137-21761-00-00)

1
Out of stock

6

OIL TANK CAP ASSY

183-21770-12-00

—

$21.37

In stock

7

GASKET 214217720000

90430-29114-00

1

$6.20

In stock

8

KNOB, SIDE COVER 1

(168-21714-00-00)

1
Out of stock

9

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

10

CLAMP, DAMPER

(168-21729-00-00)

1
Out of stock

11

NUT, SPEC''L SHAPE

90179-08035-00

1
Out of stock

12

DAMPER, LOCATING 1

(137-21778-00-00)

1
Out of stock

13

HOSE (L420)

90445-092K1-00

1

$10.63

In stock

14

CLIP 101235600

90467-08003-00

1

$6.13

In stock

15

SCREW, UNION

(137-21768-01-00)

1
Out of stock

16

GASKET

(90430-10029-00)

1
Out of stock

17

CLAMP

(90464-09007-00)

1
Out of stock

18

BAND, TANK FITTING

(174-21776-00-00)

1
Out of stock

19

EMBLEM 2

(117-21782-00-00)

1
Out of stock
