1970 Yamaha CS3C (CS3C) Kick Diagram

← All diagrams

Find the part on the Kick diagram for your 1970 Yamaha CS3C (CS3C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

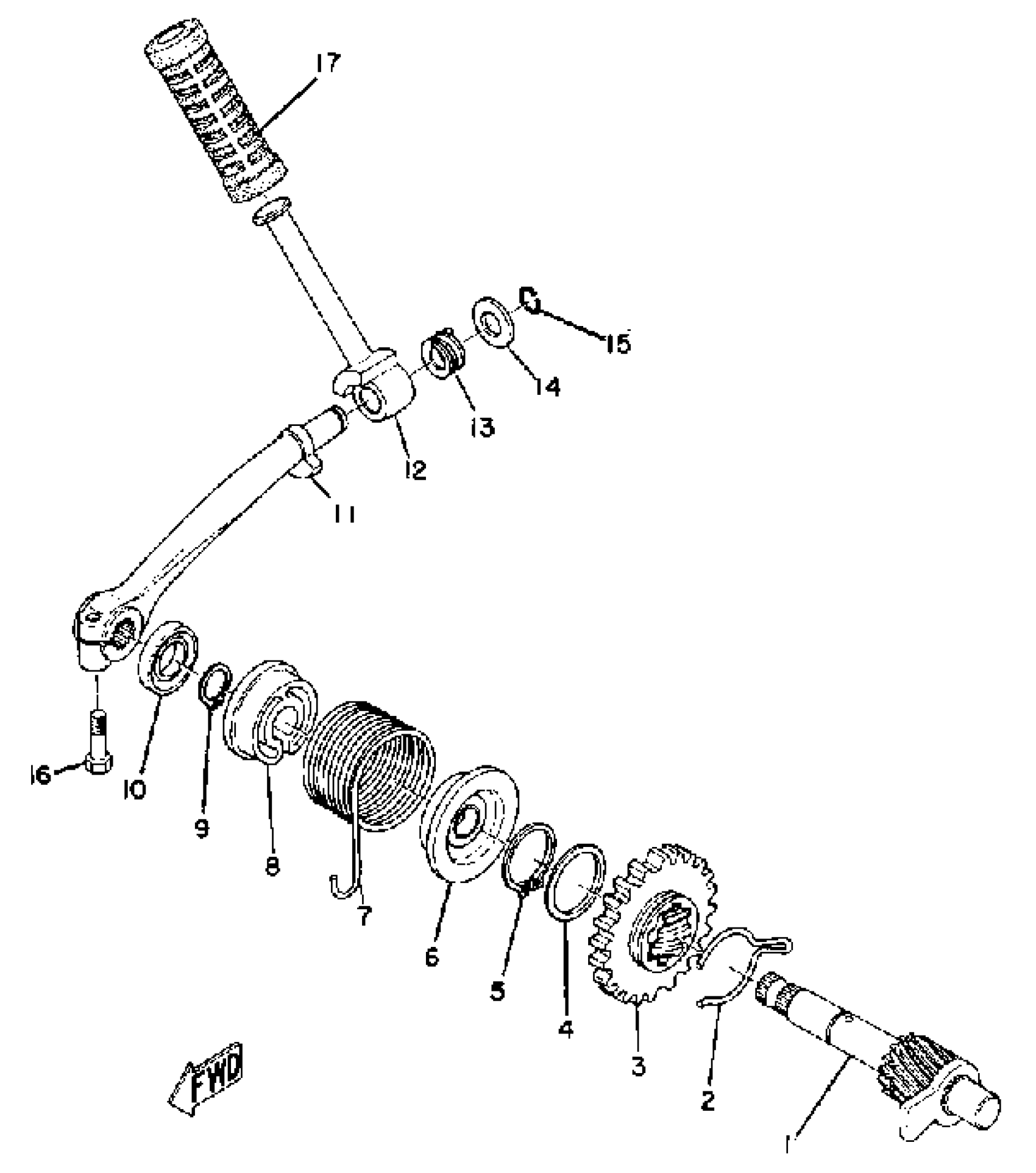

1970 Yamaha CS3C (CS3C) Kick Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK CRANK ASSEMBLY

(178-15610-01-93)

1
Out of stock

1

KICK AXLE ASSEMBLY

180-15660-01-00

1
Out of stock

1

KICK CRANK ASSEMBLY

3AY-15620-00-00

1
Out of stock

2

CLIP 315156870000

90468-26048-00

1
Out of stock

3

GEAR, KICK

180-15641-00-00

1
Out of stock

4

WASHER, PLATE(59W)

90201-253K0-00

1

$6.18

In stock

5

CIRCLIP (256)

93410-25017-00

1
Out of stock

6

GUIDE, KICK SPRING

132-15664-01-00

1
Out of stock

7

SPRING TORSION 304156650000

90508-26136-00

—
Out of stock

8

COVER, KICK SPRING

132-15676-01-00

—

$9.02

In stock

9

CIRCLIP(1AR)

99009-15400-00

1

$5.10

In stock

10

OIL SEAL (15X26X6-102)

93109-15001-00

1

$7.42

In stock

11

TOOL

UNA-VAILA-BL-EI

1
Out of stock

12

LEVER,KICK

205-15612-01-00

1
Out of stock

12

LEVER, KICK

(214-15612-09-00)

1
Out of stock

13

SPRING,KICK CRANK

214-15625-00-00

1
Out of stock

14

WASHER,SPEC'L SHAPE

90209-10210-00

1
Out of stock

15

. CIRCLIP, OUTER

93440-10028-00

1
Out of stock

16

BOLT(3DM)

97024-06020-00

—

$6.17

In stock

17

COVER, KICK LEVER

156-15618-01-00

—

$6.43

In stock
