1990 Yamaha Ovation (CS340P) Electrical 2 Diagram

← All diagrams

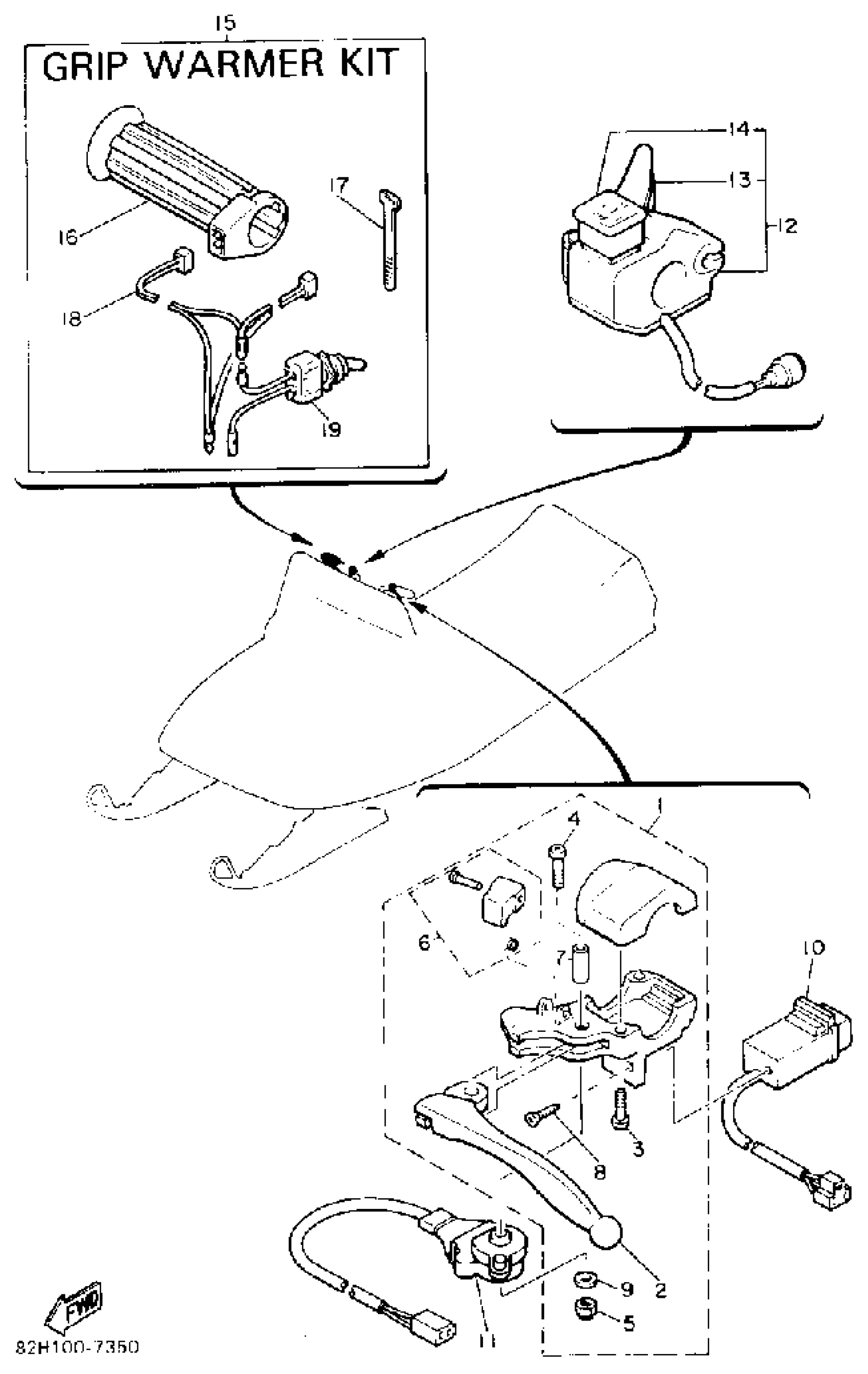

Find the part on the Electrical 2 diagram for your 1990 Yamaha Ovation (CS340P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha Ovation (CS340P) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER HOLDER ASSY (LEFT)

88R-W8291-00-00

1

$110.75

In stock

2

LEVER 1

8H8-83912-00-00

1

$18.40

In stock

3

SCREW, PAN HEAD(41N)

90157-05057-00

—

$2.23

In stock

4

SCREW, PAN

98507-05040-00

1

$6.68

In stock

5

NUT, NYLON

95707-05300-00

1

$2.74

In stock

6

. LEVER LOCK ASSEMBLY (8K4-83930-00-00)

82A-83930-00-00

1
Out of stock

7

COLLAR, LEVER

802-83913-00-00

—

$6.35

In stock

8

. SCREW, TAPPING

97780-30312-00

1
Out of stock

9

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

10

BEAM SWITCH ASSY

8H8-83950-01-00

1

$68.89

In stock

11

STOP SWITCH ASSY

88R-82530-00-00

1

$25.06

In stock

12

LEVER HOLDER ASSEMBLY (RIGHT)

84R-82720-00-00

1
Out of stock

13

LEVER, THROTTLE

8V0-42138-00-00

1

$55.57

In stock

14

. ENGINE STOP SWITCH ASSEMBLY

84R-82575-09-00

1
Out of stock

15

UNAVAILABLE IN PRICE BOOK

(80K-W2626-00-00)

1
Out of stock

16

88T GRIP BLACK 1 PC

88T-26240-85-BK

1
Out of stock

17

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

18

WIRE, SUB-LEAD

80X-82318-00-00

1
Out of stock

19

SWITCH

82J-82917-00-00

—

$107.95

In stock
