1990 Yamaha Ovation (CS340P) Electrical 1 Diagram

← All diagrams

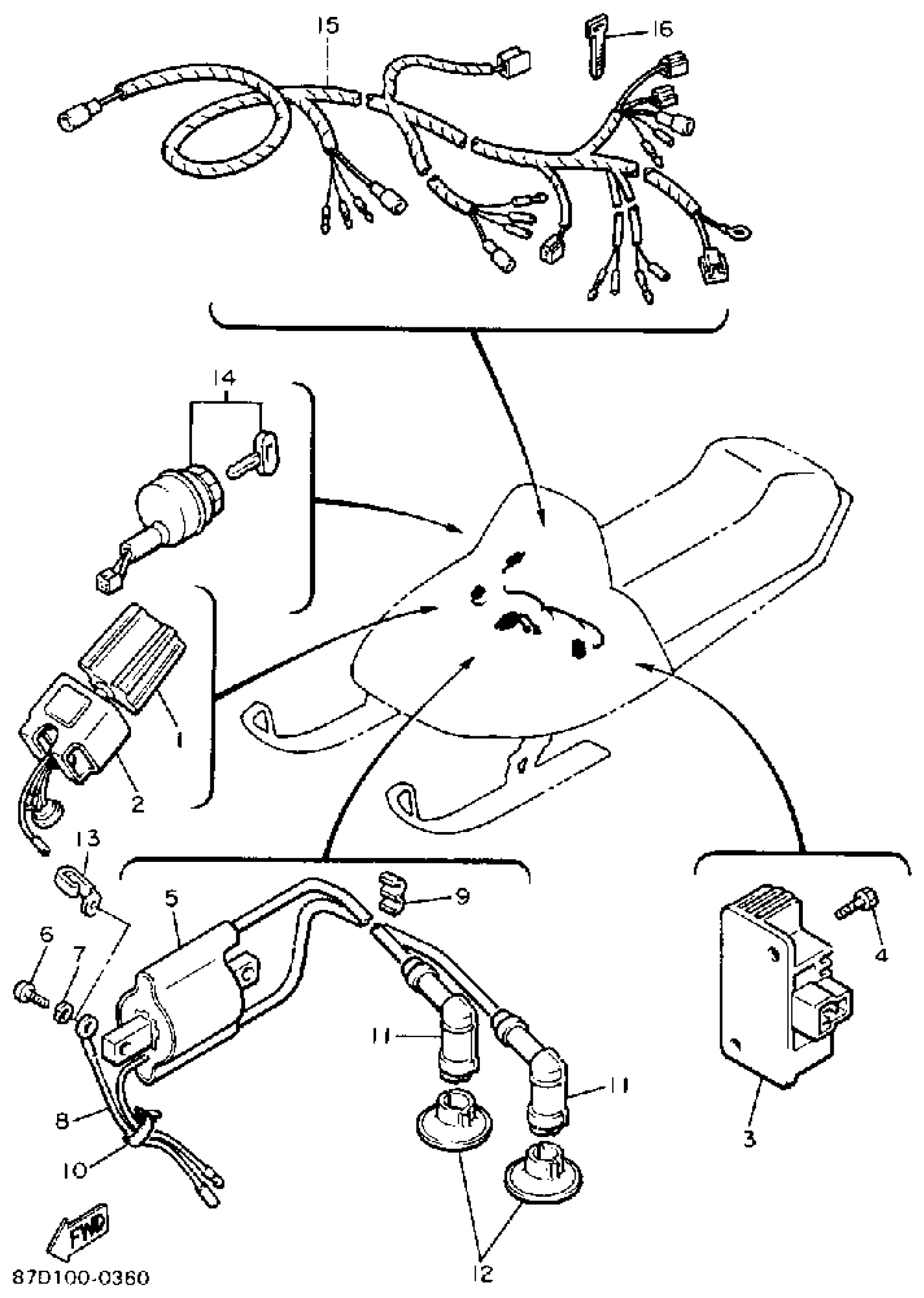

Find the part on the Electrical 1 diagram for your 1990 Yamaha Ovation (CS340P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha Ovation (CS340P) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

C.D.I. UNIT ASSEMBLY

81E-85540-M0-00

1
Out of stock

2

BAND

2A7-85546-00-00

—

$20.40

In stock

3

RECTIFIER & REGULATOR ASSY

22J-81960-92-00

1
Out of stock

4

BOLT(4GV)

97017-05012-00

1

$6.17

In stock

5

IGNITION COIL ASSY

85T-82310-06-00

1
Out of stock

6

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

7

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

8

WIRE, SUB-LEAD

87D-82318-00-00

1
Out of stock

9

CLAMP, CORD

861-82361-00-00

—

$5.34

In stock

10

CLAMP(4MX)

90465-06376-00

1

$7.08

In stock

11

PLUG CAP ASSY

85G-82370-20-00

1

$28.09

In stock

12

SEAL

8G5-82372-00-00

1

$4.66

In stock

13

CLAMP(51Y)

90465-08277-00

—
Out of stock

14

MAIN SWITCH ASSY

8K4-82510-20-00

1
Out of stock

15

WIRE HARNESS ASSY

87D-82590-00-00

—

$55.12

In stock

16

BAND

341-26397-01-00

1
Out of stock
← Steering Gate Electrical 2 →
