AIR CLEANER

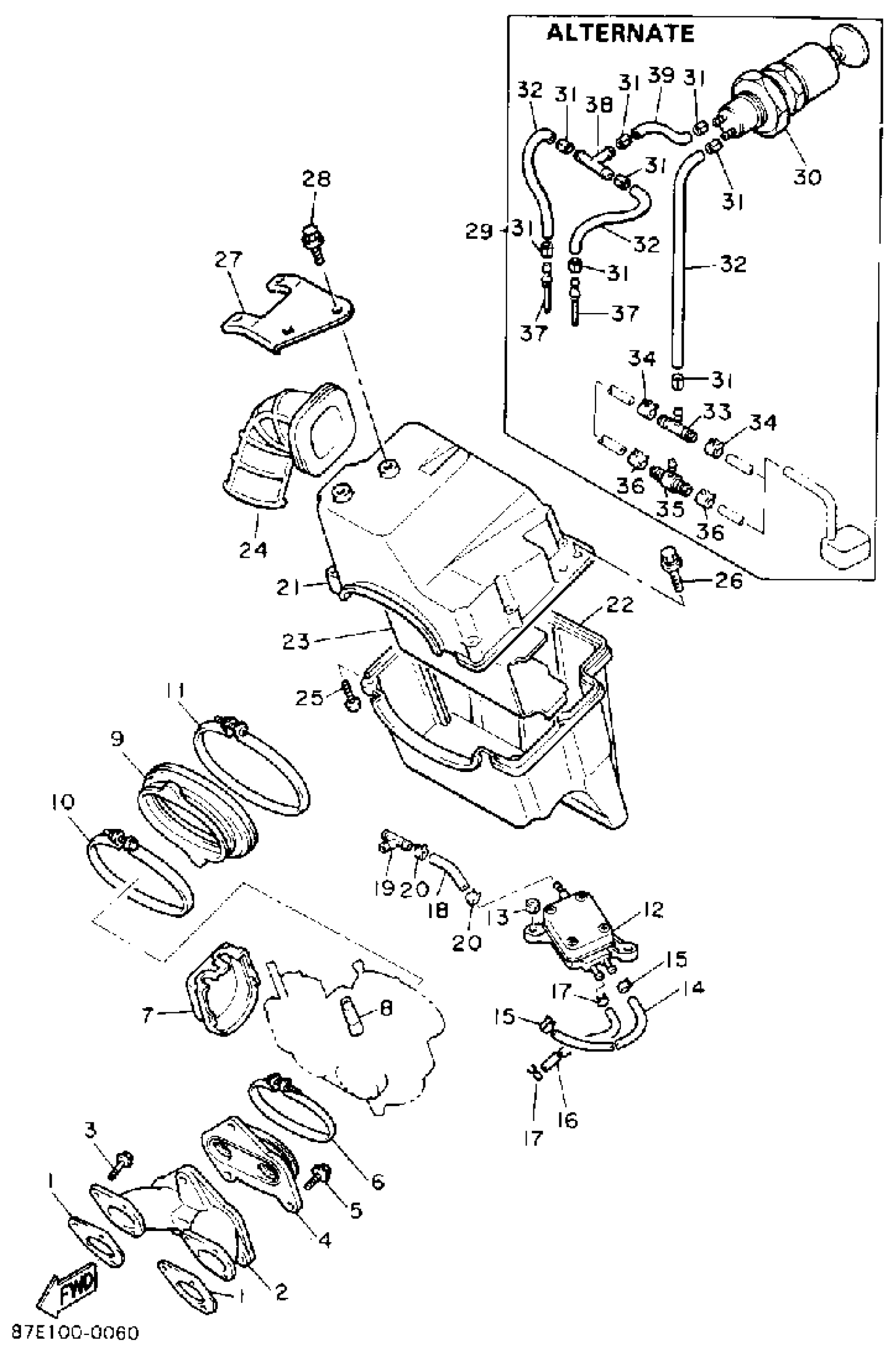

1990 Yamaha Ovation (CS340P) AIR Cleaner Diagram
Find the part on the AIR Cleaner diagram for your 1990 Yamaha Ovation (CS340P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
2
JOINT, CARBURETOR
85L-13565-00-00
4
MANIFOLD, INTAKE
89X-13555-00-00
6
HOSE CLAMP ASSY
90450-25026-00
7
CAP, CARBURETOR
85L-14471-00-00
8
BOOT
8J5-26352-00-00
9
JOINT, AIR CLEANER 1
85L-14453-00-00
10
HOSE CLAMP ASSY
90450-25027-00
11
HOSE CLAMP ASSY
90450-25028-00
12
FUEL PUMP ASSY
85L-24410-00-00
14
TUBE, FLEXIBLE VINYL(8AU)
91A20-05039-00
21
SILENCER, INTAKE 1
87D-14431-00-00
22
SILENCER, INTAKE 2
85L-14441-00-00
23
PLATE
87D-14477-00-00
24
PIPE, SUCTION 1
87D-14423-00-00
27
STAY 1
87D-14493-00-00
29
PRIMER PUMUP KIT
85L-W2431-00-00
37
. NOZZLE
8U0-13552-00-00
38
. JOINT
8H0-24379-00-00
39
TUBE, FLEXIBLE VINYL(8AF)
91A20-03036-00
