1990 Yamaha Ovation (CS340P) Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1990 Yamaha Ovation (CS340P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

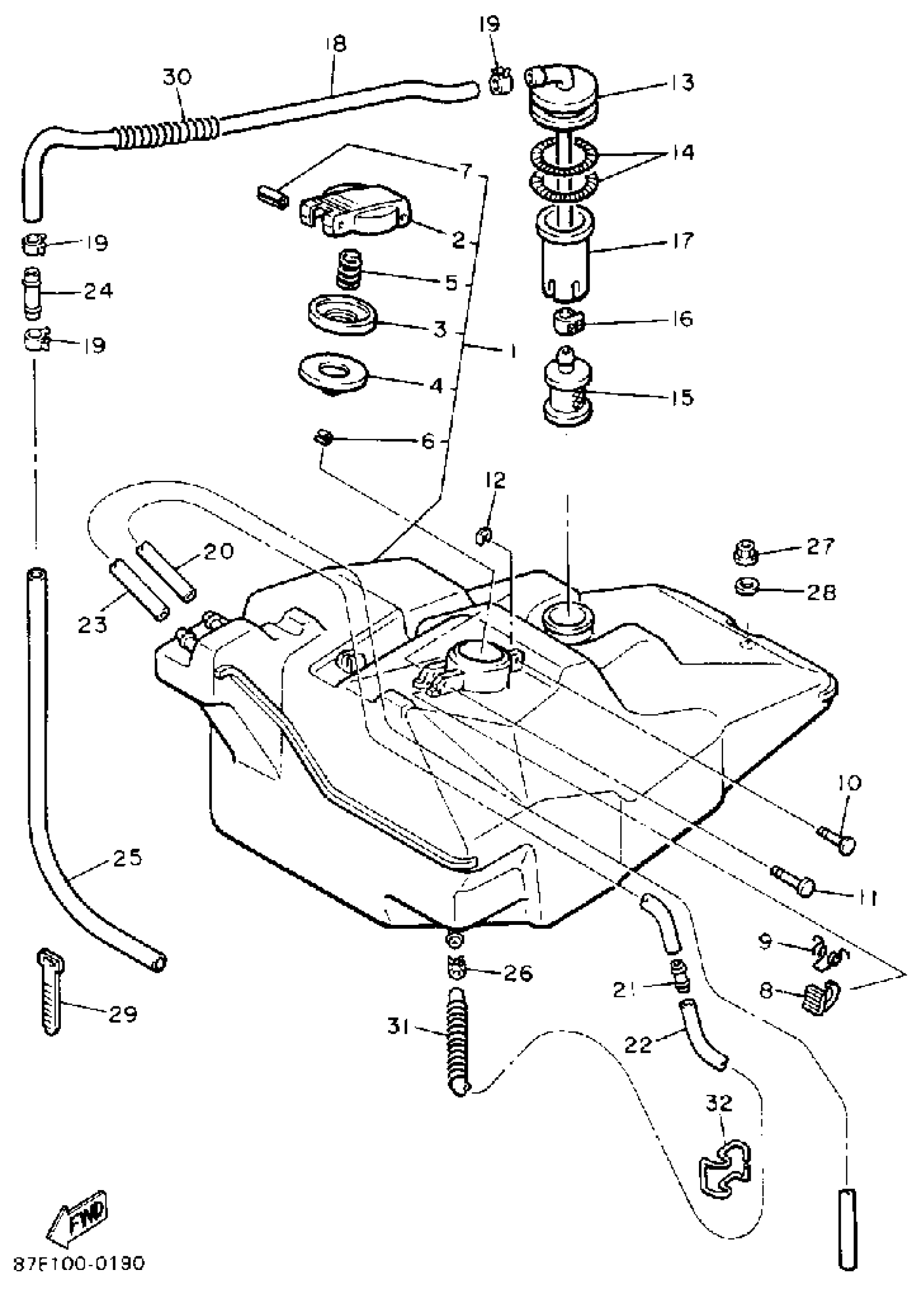

1990 Yamaha Ovation (CS340P) Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK

85L-24111-00-00

1
Out of stock

2

BODY, CAP

8W6-24611-00-00

—
Out of stock

3

DISK,CAP

813-24613-01-00

1
Out of stock

4

GASKET, CAP 1

89A-24641-00-00

1
Out of stock

5

SPRING, CAP

90501-20130-00

1
Out of stock

6

PIN, SPRING

91690-30016-00

1
Out of stock

7

PIN, SPRING (8W6)

91609-25050-00

1
Out of stock

8

HOOK

83M-24628-00-00

1
Out of stock

9

SPRING, TORSION(81E)

90508-10715-00

—
Out of stock

10

PIN (8W6)

90249-03175-00

—
Out of stock

11

PIN (813)

90249-03017-00

1
Out of stock

12

CIRCLIP (604)

93430-02001-00

1
Out of stock

13

PIPE, SUCTION 1 (8V0-24335-01)

86M-24335-00-00

1
Out of stock

14

SPRING, TENSION (8R4)

90506-06261-00

1
Out of stock

15

FILTER ASSY

8H5-24560-00-00

1
Out of stock

16

CLIP

90467-11028-00

1
Out of stock

17

PIPE, SUCTION 2

8V0-24336-00-00

1
Out of stock

18

HOSE

90446-11305-00

1
Out of stock

19

CLIP

90467-11028-00

1
Out of stock

20

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

—
Out of stock

21

PIPE, JOINT

8H8-24376-00-00

—
Out of stock

22

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

—
Out of stock

23

TUBE, FLEXIBLE VINYL(8AT)

91A20-05145-00

—
Out of stock

24

PIPE, JOINT 4

878-24379-00-00

1
Out of stock

25

HOSE

90446-11323-00

1
Out of stock

26

CLIP (8A1)

90467-09026-00

—
Out of stock

27

NUT, NYLON

95717-08300-00

—
Out of stock

28

WASHER, PLATE (3L7)

90201-08784-00

—
Out of stock

29

BAND

341-26397-01-00

1
Out of stock

30

SPRING,COMPRESSION

90501-084J1-00

1
Out of stock

31

SPRING, COMPRESSION(8AF)

90501-083J8-00

1
Out of stock

32

CLAMP 1

87D-24135-00-00

1
Out of stock
