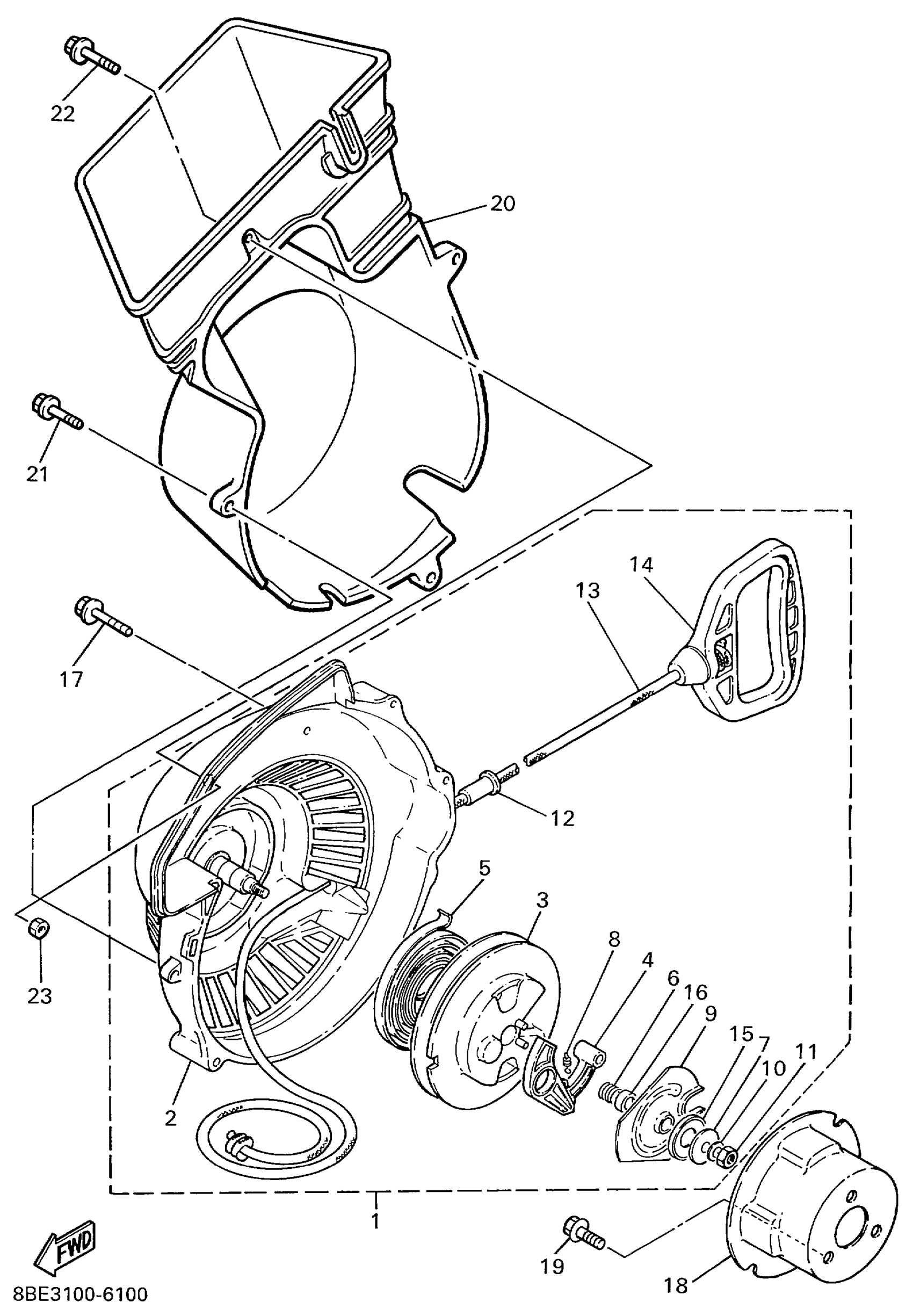

Yamaha CS340EC (OVATION LE) 8BE6 1999 STARTER Diagram

#

Description
Price

1

STARTER ASSY

85L-15710-00-00

Unavailable

2

. CASE, STARTER

8G8-15711-01-00

Unavailable

3

DRUM, SEAVE

8F3-15714-01-00

$45.63

4

PAWL, DRIVE

8F3-15741-01-00

$21.05

5

SPRING, STARTER

8F3-15713-01-00

$41.31

6

SPRING, DRIVE PLATE

8F3-15715-00-00

$9.15

7

WASHER, THRUST

8F3-15739-01-00

$11.03

8

SPRING, RETURN

8F3-15734-00-00

$5.12

9

PLATE, DRIVE

8F3-15716-03-00

$23.00

10

WASHER, SPRING

92907-06100-00

$1.00

11

NUT(JN5)

95317-06700-00

$6.69

12

GUIDE, ROPE

8F3-15758-00-00

$17.09

13

WIRE, STARTER (BRAIDED)

89A-15751-00-00

$27.50

14

HANDLE, STARTER

8F3-15755-00-00

$23.00

15

WASHER, THRUST

8G5-15739-00-00

$6.94

16

COLLOR

82M-15779-00-00

$6.88

17

BOLT, FLANGE

95817-06045-00

$6.18

18

PULLEY, STARTER

81L-15723-00-00

$41.92

19

BOLT, FLANGE

95817-08012-00

$3.98

20

COVER

85L-15779-00-00

Unavailable

21

BOLT, FLANGE

95817-06030-00

$3.91

22

BOLT, FLANGE

95817-06030-00

$3.91

23

NUT

90179-06447-00

Unavailable
