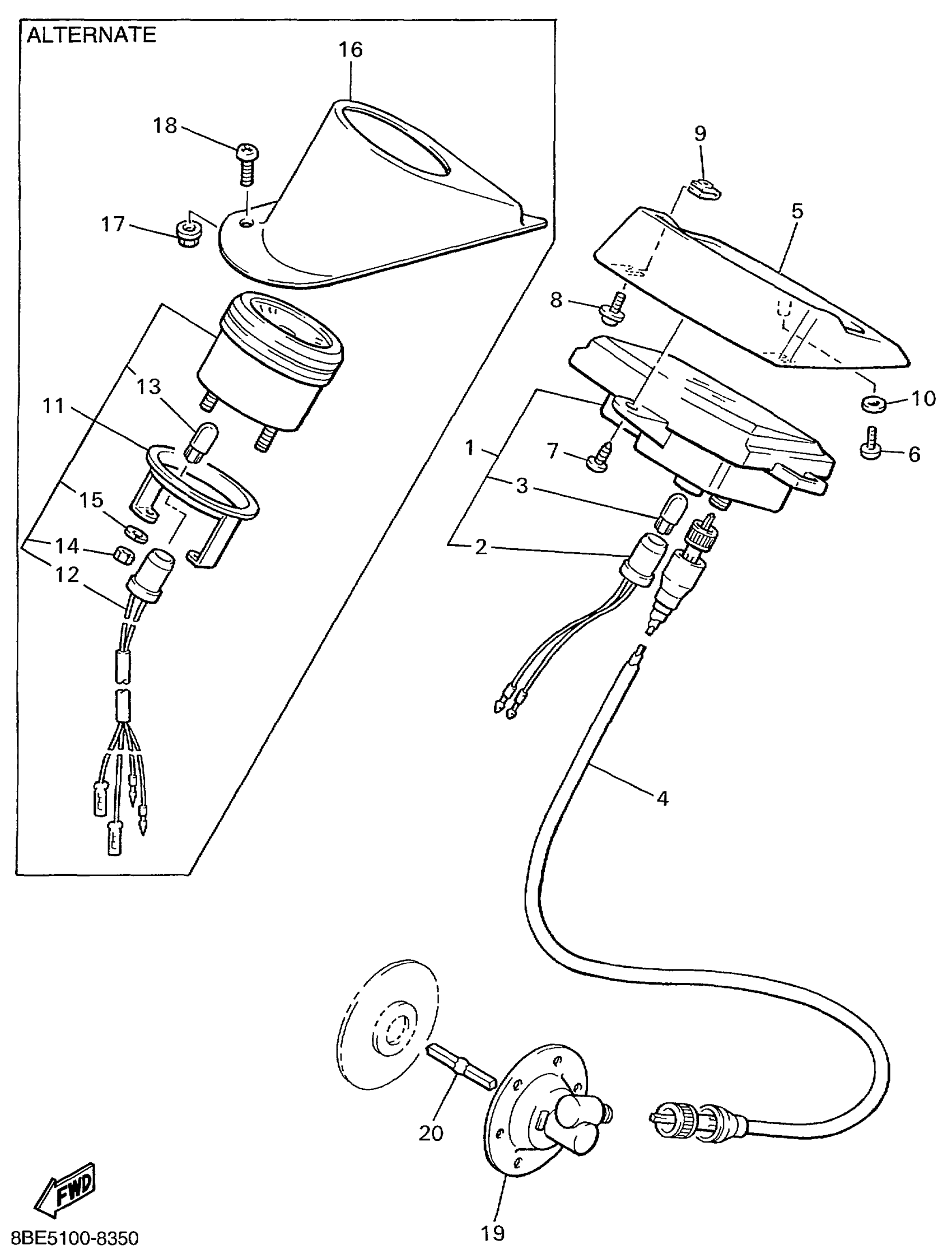

Yamaha CS340EC (OVATION LE) 8BE6 1999 METER Diagram

#

Description
Price

1

SPEEDOMETER ASSEMBLY (MILE/H)

85N-83510-40-00

Unavailable

2

SOCKET CORD ASSY

5E2-83509-20-00

$24.52

3

BULB, MTR.12V3.4W

4G1-84744-00-XX

$2.94

4

SPEEDOMETER CABLE ASSEMBLY

85N-83550-01-00

Unavailable

5

COVER, METER

87D-83559-00-00

Unavailable

6

SCREW, BINDING

98907-05016-00

$5.88

7

SCREW, TAPPING(53L)

90167-05030-00

$6.36

8

SCREW, WITH WASHER

90159-05137-00

Unavailable

9

NUT, SPRING

90183-051A0-00

$2.54

10

WASHER, PLATE (8J0)

90201-05725-00

Unavailable

11

TACHOMETER ASSY

85L-83540-00-00

$327.95

12

SOCKET CORD ASSY

85L-83509-00-00

Unavailable

13

BULB, MTR.12V3.4W

4G1-84744-00-XX

$2.94

14

NUT, HEXAGON (663)

95380-05600-00

Unavailable

15

YBS67-5 WASHER, SPRING

92990-05100-00

$1.49

16

PANEL, TACHOMETER 2

85N-8354E-00-00

Unavailable

17

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

18

SCREW, BINDING

98907-06010-00

Unavailable

19

METER GEAR HOUSING COMP

8Y1-47700-00-00

Unavailable

20

JOINT

8K4-47715-00-00

Unavailable
