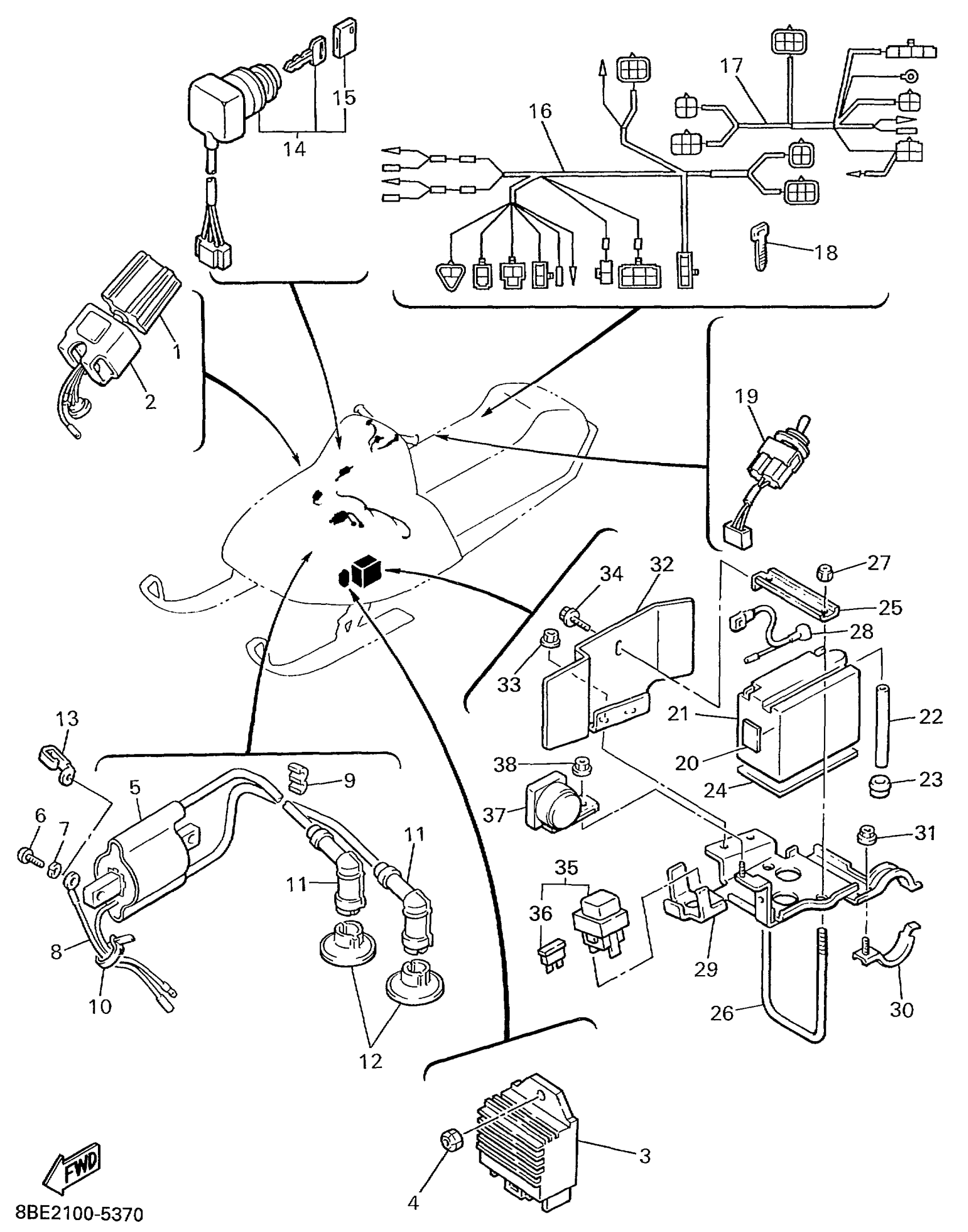

Yamaha CS340EC (OVATION LE) 8BE6 1999 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSY

8AU-85540-00-00

$192.65

2

BAND

2A7-85546-00-00

$20.40

3

RECTIFIER & REGULATOR ASSY

89A-81960-00-00

$91.88

4

NUT, NYLON

95707-06300-00

$3.20

5

IGNITION COIL ASSY

85T-82310-06-00

Unavailable

6

SCREW PAN HEAD

98580-06020-00

$5.10

7

WASHER, PLAIN (646)

92990-06600-00

$2.48

8

WIRE, SUB-LEAD

87D-82318-00-00

Unavailable

9

CLAMP, CORD

861-82361-00-00

$5.34

10

CLAMP

90465-08028-00

$4.62

11

PLUG CAP ASSY

85G-82370-20-00

$28.09

12

SEAL

8G5-82372-00-00

$4.66

13

CLAMP(51Y)

90465-08277-00

$9.43

14

MAIN SWITCH ASSY

8K1-82510-21-00

Unavailable

15

CAP, KEY

526-82579-00-00

$6.72

16

WIRE HARNESS ASSEMBLY

8BE-82590-00-00

Unavailable

17

WIRE HARNESS ASSEMBLY 2

8BE-82580-00-00

Unavailable

18

BAND

341-26397-01-00

Unavailable

19

SWITCH

8JD-82917-00-00

Unavailable

20

DAMPER

22F-2139X-00-00

$6.38

21

YB14LA2 YUASA BATTERY

YB1-4LA20-00-00

Unavailable

22

HOSE (L340)

90445-08684-00

$3.37

23

GROMMET(3AA)

90480-12497-00

$2.75

24

. SEAT, BATTERY

82L-82122-00-00

Unavailable

25

PLATE, BATTERY FITTING

85N-82136-00-00

Unavailable

26

. SCREW, FITTING

8J4-82133-00-00

Unavailable

27

NUT, NYLON

95707-06300-00

$3.20

28

. WIRE, PLUS LEAD

89X-82115-00-00

Unavailable

29

BRACKET,BATTERY

85N-2199G-01-00

Unavailable

30

PLATE, BATTERY FITTING

8V0-82136-00-00

Unavailable

31

NUT, FLANGE(4MV)

95707-06500-00

$0.78

32

. SHIELD, HEAT

85N-2199H-00-00

Unavailable

33

NUT, FLANGE(4MV)

95707-06500-00

$0.78

34

BOLT, FLANGE

95817-06010-00

$3.91

35

FUSE HOLDER ASSY

8BE-82150-00-00

$21.80

36

FUSE (10A)

42X-82151-00-00

$2.16

37

. STARTER RELAY ASSY

8J9-81940-10-00

Unavailable

38

NUT, FLANGE(4MV)

95707-06500-00

$0.78
