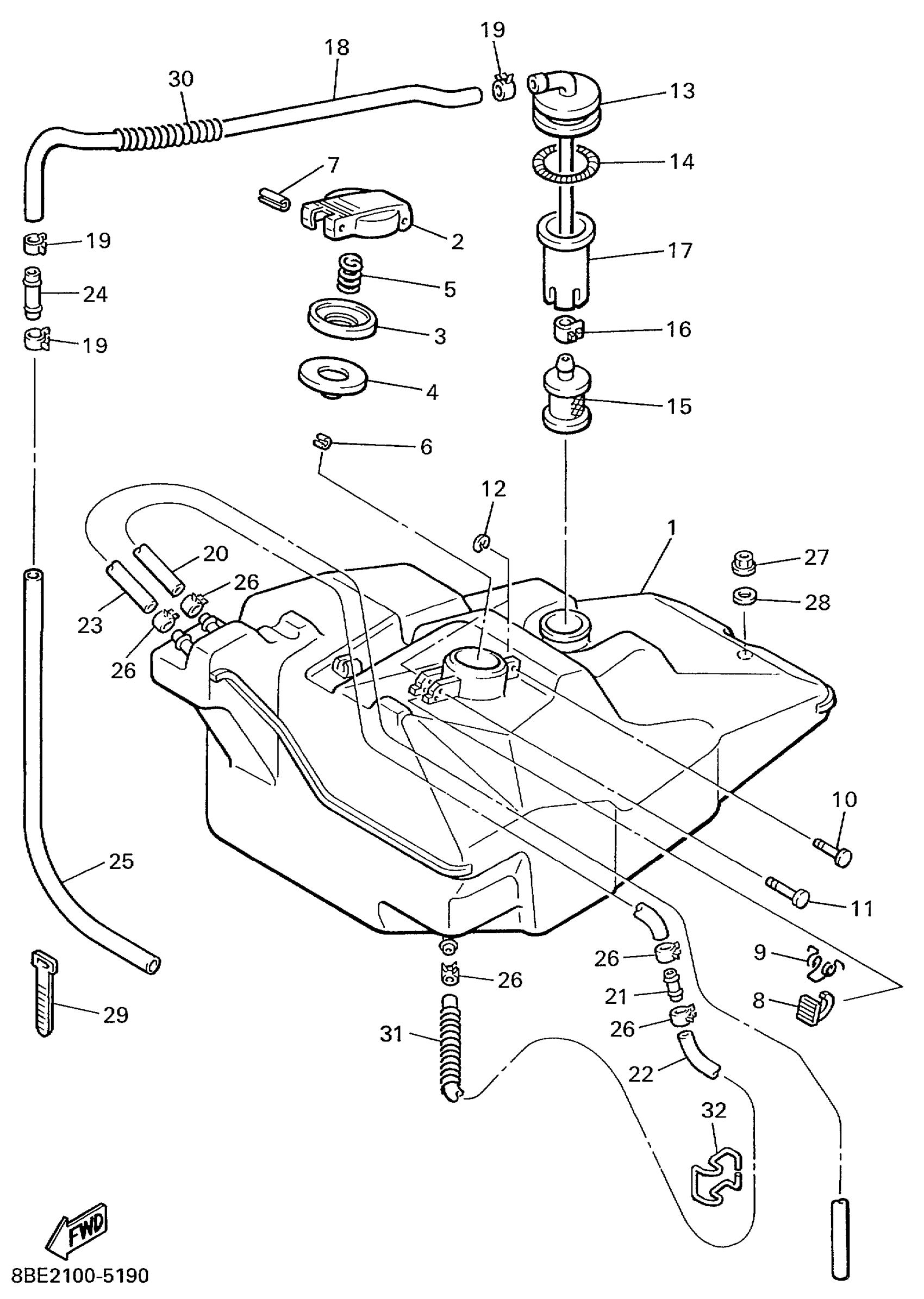

Yamaha CS340EC (OVATION LE) 8BE6 1999 FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL

85L-24111-01-00

Unavailable

2

BODY, CAP

8W6-24611-00-00

$39.46

3

DISK,CAP

813-24613-01-00

$18.71

4

GASKET, CAP 1

89A-24641-00-00

$9.35

5

SPRING, CAP

90501-20130-00

$6.80

6

PIN, SPRING

91690-30016-00

$5.88

7

PIN, SPRING (8W6)

91609-25050-00

$1.20

8

HOOK

83M-24628-00-00

$19.68

9

SPRING, TORSION(81E)

90508-10715-00

$5.48

10

PIN (8W6)

90249-03175-00

$2.57

11

PIN (813)

90249-03017-00

$2.25

12

CIRCLIP (604)

93430-02001-00

$6.69

13

PIPE, SUCTION 1 (8V0-24335-01)

86M-24335-00-00

Unavailable

14

SPRING, TENSION (8R4)

90506-06261-00

$6.94

15

FILTER ASSY

8H5-24560-00-00

$11.47

16

CLIP

90467-11028-00

$5.14

17

PIPE, SUCTION 2

8V0-24336-00-00

Unavailable

18

HOSE (L700)

90445-117F2-00

$24.48

19

CLIP

90467-11028-00

$5.14

20

HOSE

90699-50100-00

$26.99

21

PIPE, JOINT

8H8-24376-00-00

$4.29

22

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

$12.58

23

TUBE, FLEXIBLE VINYL(8AT)

91A20-05145-00

$23.43

24

PIPE, JOINT 4

878-24379-00-00

$6.46

25

HOSE (L210)

90445-110F5-00

$14.08

26

CLIP (8A1)

90467-09026-00

$2.72

27

NUT, NYLON

95717-08300-00

$2.57

28

WASHER, PLATE (3L7)

90201-08784-00

$2.54

29

BAND

341-26397-01-00

Unavailable

30

SPRING,COMPRESSION

90501-084J1-00

Unavailable

31

SPRING, COMPRESSION(8AF)

90501-083J8-00

Unavailable

32

CLAMP 1

87D-24135-00-00

Unavailable
