1997 Yamaha Ovation LE (CS340EA) Intake Diagram

← All diagrams

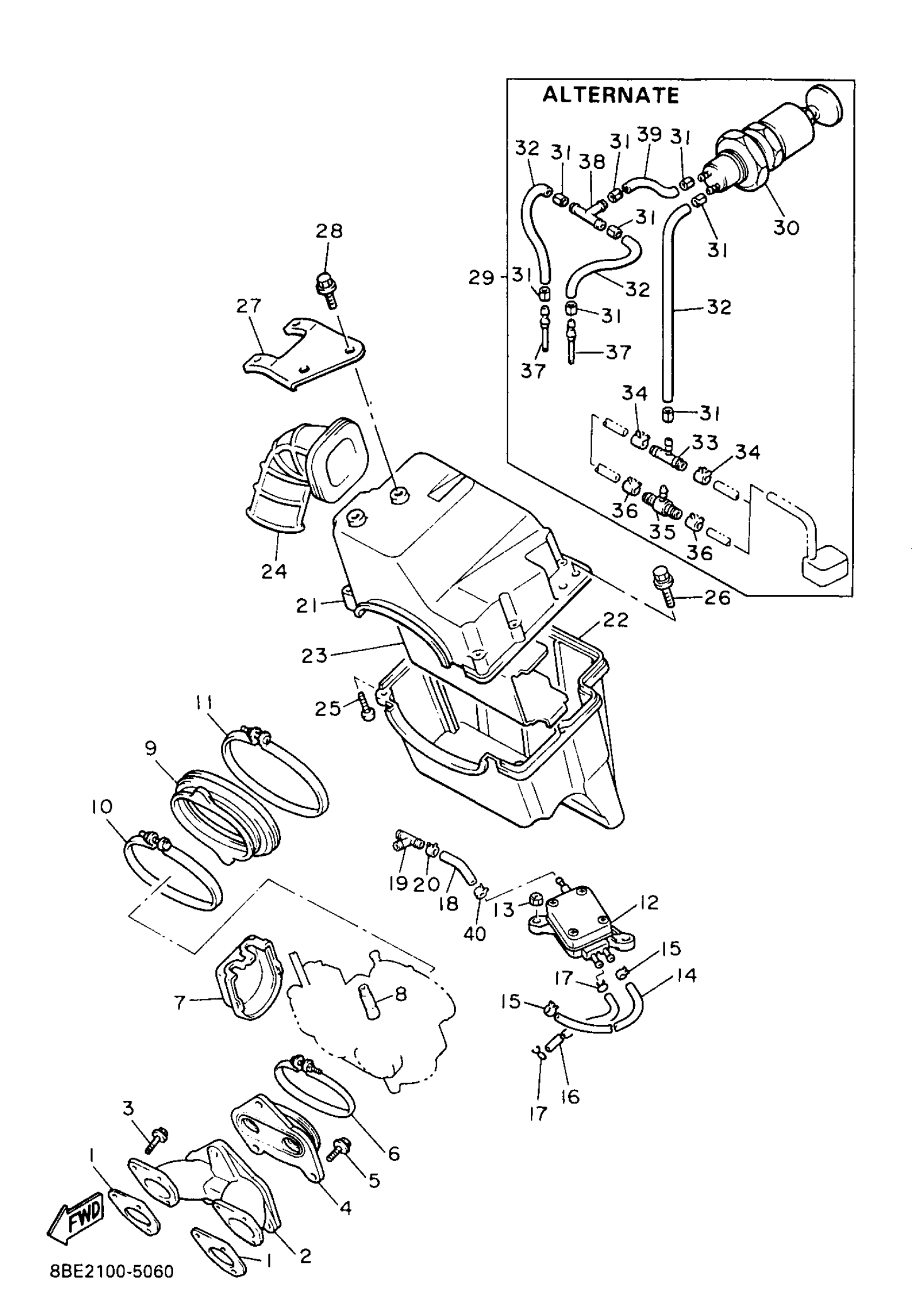

Find the part on the Intake diagram for your 1997 Yamaha Ovation LE (CS340EA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Yamaha Ovation LE (CS340EA) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET

8Y2-13563-02-00

1

$7.88

In stock

2

JOINT, CARBURETOR

85L-13565-00-00

1
Out of stock

3

BOLT, FLANGE

95817-06020-00

1

$2.69

In stock

4

MANIFOLD, INTAKE

89X-13555-00-00

1
Out of stock

5

BOLT, FLANGE(4LN)

95817-08025-00

1

$6.17

In stock

6

HOSE CLAMP ASSY

90450-25026-00

1
Out of stock

7

CAP, CARBURETOR

85L-14471-00-00

1
Out of stock

8

BOOT

8J5-26352-00-00

1
Out of stock

9

JOINT, AIR CLEANER 1

85L-14453-00-00

1
Out of stock

10

HOSE CLAMP ASSY

90450-25027-00

1
Out of stock

11

HOSE CLAMP ASSY

90450-25028-00

1
Out of stock

12

FUEL PUMP ASSY

85L-24410-00-00

1
Out of stock

13

NUT, NYLON

95707-06300-00

1

$3.20

In stock

14

TUBE, FLEXIBLE VINYL(8AU)

91A20-05039-00

1
Out of stock

15

CLIP (8A1)

90467-09026-00

1

$2.72

In stock

16

HOSE (L450)

90445-10144-00

—

$4.52

In stock

17

CLIP

90467-090A2-00

—

$2.51

In stock

18

TUBE, FLEXIBLE VINYL (L200)

91A20-07020-00

1
Out of stock

19

PIPE, JOINT

815-24379-00-00

—

$19.74

In stock

20

CLIP

90467-11028-00

1

$5.14

In stock

21

SILENCER, INTAKE 1

87D-14431-00-00

—
Out of stock

22

SILENCER, INTAKE 2

85L-14441-00-00

1
Out of stock

23

PLATE

87D-14477-00-00

1
Out of stock

24

PIPE, SUCTION 1

87D-14423-00-00

1
Out of stock

25

SCREW, PAN TAP.2

97707-50525-00

—
Out of stock

26

BOLT, WITH WASHER(8V7)

90119-06108-00

—

$6.68

In stock

27

STAY 1

87D-14493-00-00

1
Out of stock

28

BOLT, FLANGE

95817-06012-00

—

$1.49

In stock

29

PRIMER PUMUP KIT

85L-W2431-00-00

1
Out of stock

30

PRIMER PUMP ASSY

8X8-24360-01-00

—

$127.32

In stock

31

CLIP(42X)

90467-07093-00

—

$1.72

In stock

32

TUBE, FLEXIBLE VINYL(8AE)

91A20-03130-00

—

$13.31

In stock

33

PIPE, JOINT

815-24379-00-00

—

$19.74

In stock

34

CLIP (8J7)

90467-11009-00

—

$7.55

In stock

35

WAY 3 (8U0)

90413-05011-00

—

$2.74

In stock

36

CLIP (8A1)

90467-09026-00

1

$2.72

In stock

37

. NOZZLE

8U0-13552-00-00

1
Out of stock

38

. JOINT

8H0-24379-00-00

1
Out of stock

39

TUBE, FLEXIBLE VINYL(8AF)

91A20-03036-00

1
Out of stock

40

CLIP (3G0)

90467-10039-00

—
Out of stock
