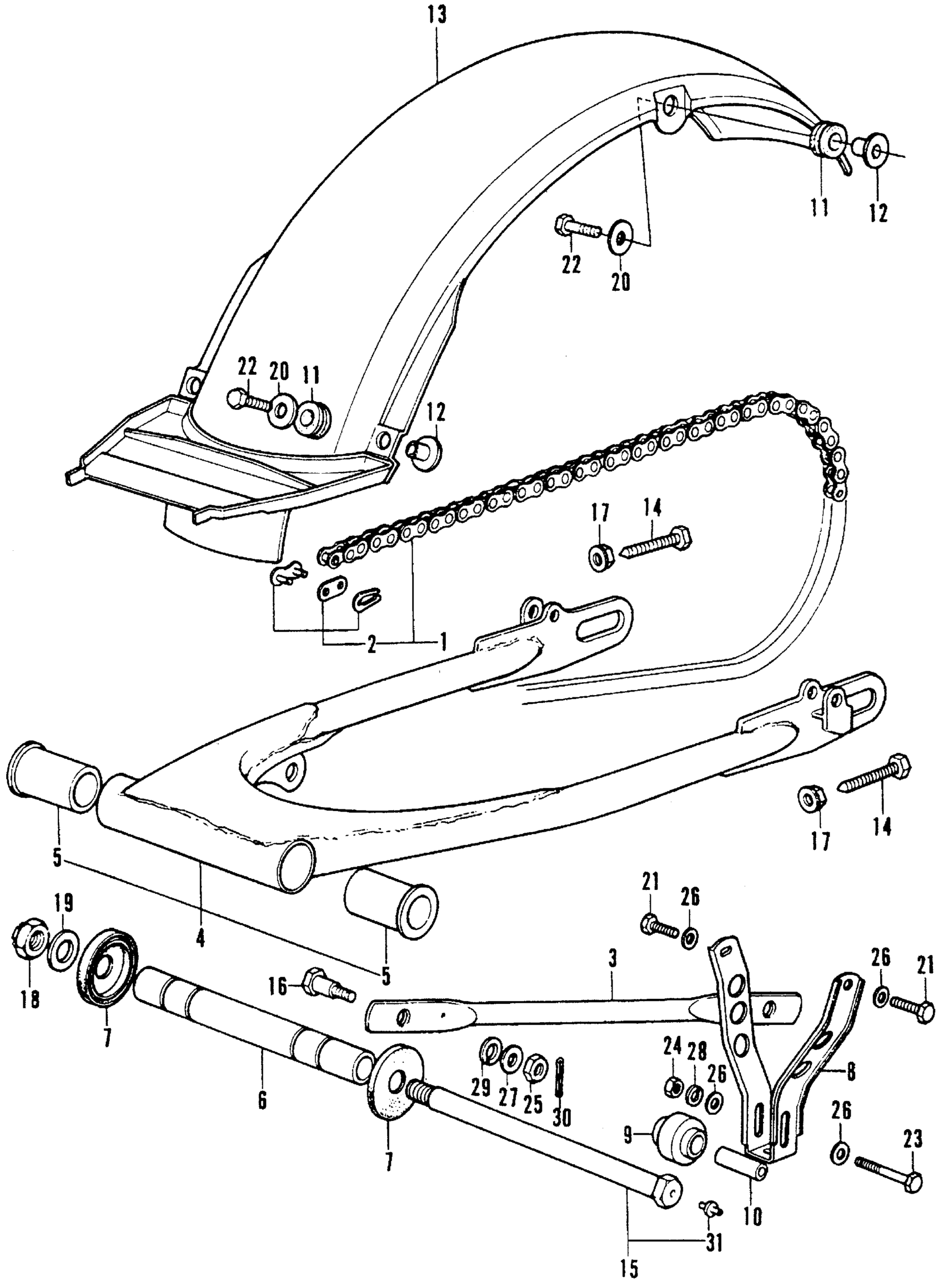

Honda CR250MA MOTORCYCLE, JPN, VIN# CR250M-1000216 TO CR250M-1025537 SWINGARM + REAR FENDER M Diagram

#

Description
Price

1

CHAIN, DRIVE (D1D520TM-106L) (NOT AVAILABLE)

40530-357-000

Unavailable

1

CHAIN, DRIVE (D1D520TM-110L) (NOT AVAILABLE) | (Optional).

40530-357-810

Unavailable

2

MASTER LINK This part replaces 40531-357-305.

40531-958-003

Unavailable

2

MASTER LINK This part replaces 40531-381-000.

40531-958-003

Unavailable

2

MASTER LINK This part replaces 40531-430-003.

40531-958-003

Unavailable

2

MASTER LINK This part replaces 40531-430-005.

40531-958-003

Unavailable

2

MASTER LINK

40531-958-003

Unavailable

2

MASTER LINK This part replaces 40540-357-305.

40531-958-003

Unavailable

3

ARM, RR. BRAKE STOPPER (NOT AVAILABLE)

43431-357-020

Unavailable

4

SWINGARM (NOT AVAILABLE)

52100-357-020

Unavailable

5

BUSH, PIVOT THRUST This part replaces 52109-357-006.

52109-357-310

Unavailable

5

BUSH, PIVOT THRUST This part replaces 52109-357-300.

52109-357-310

Unavailable

5

BUSH, PIVOT THRUST

52109-357-310

Unavailable

6

COLLAR, RR. SWINGARM CENTER (NOT AVAILABLE)

52141-357-000

$118.38

7

CAP, DUST SEAL (NOK) This part replaces 52144-329-000.

52144-356-005

$17.31

7

CAP, DUST SEAL (NOK)

52144-356-005

$17.31

8

GUIDE, CHAIN (NOT AVAILABLE)

52156-357-010

Unavailable

9

ROLLER, TENSIONER (NOT AVAILABLE)

52157-357-000

Unavailable

10

COLLAR, TENSIONER (NOT AVAILABLE)

52158-357-000

Unavailable

11

RUBBER, FR. FENDER SETTING

61103-357-000

$3.37

12

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

12

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

12

COLLAR, RR. FENDER

61105-428-000

Unavailable

13

FENDER, RR. (NOT AVAILABLE)

80100-357-000

Unavailable

14

BOLT, CHAIN ADJUSTING

90119-300-000

$9.49

15

BOLT, SWINGARM PIVOT (NOT AVAILABLE)

90121-357-000

Unavailable

16

BOLT, RR. BRAKE STOPPER ARM

90133-028-010

Unavailable

16

BOLT, RR. BRAKE STOPPER ARM This part replaces 90133-107-000.

90133-028-010

Unavailable

17

NUT, HEX. (8MM)

90309-357-000

$3.40

18

NUT, LOCK (14MM)

90354-268-000

$6.78

19

WASHER (14X26) This part replaces 90526-216-000.

90527-634-670

Unavailable

19

WASHER (14X26)

90527-634-670

Unavailable

20

WASHER (6.5X20)

90545-292-000

$1.77

21

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

21

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

21

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

22

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

22

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

22

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

23

BOLT, HEX. (6X45) This part replaces 92000-06045.

92101-06045-0A

$1.49

23

BOLT, HEX. (6X45) This part replaces 92000-06045-0A.

92101-06045-0A

$1.49

23

BOLT, HEX. (6X45)

92101-06045-0A

$1.49

24

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM)

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

25

NUT, HEX. (8MM)

94001-08000-0S

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

26

WASHER, PLAIN (6MM)

94101-06800

$1.49

27

WASHER, PLAIN (8MM)

94101-08000

$1.49

28

WASHER, SPRING (6MM)

94111-06000

$1.49

29

WASHER, SPRING (8MM)

94111-10000

$1.49

30

PIN, COTTER (2.0X15)

94201-20150

$1.49

31

FITTING, GREASE (A.45)

96201-30001

$1.49
