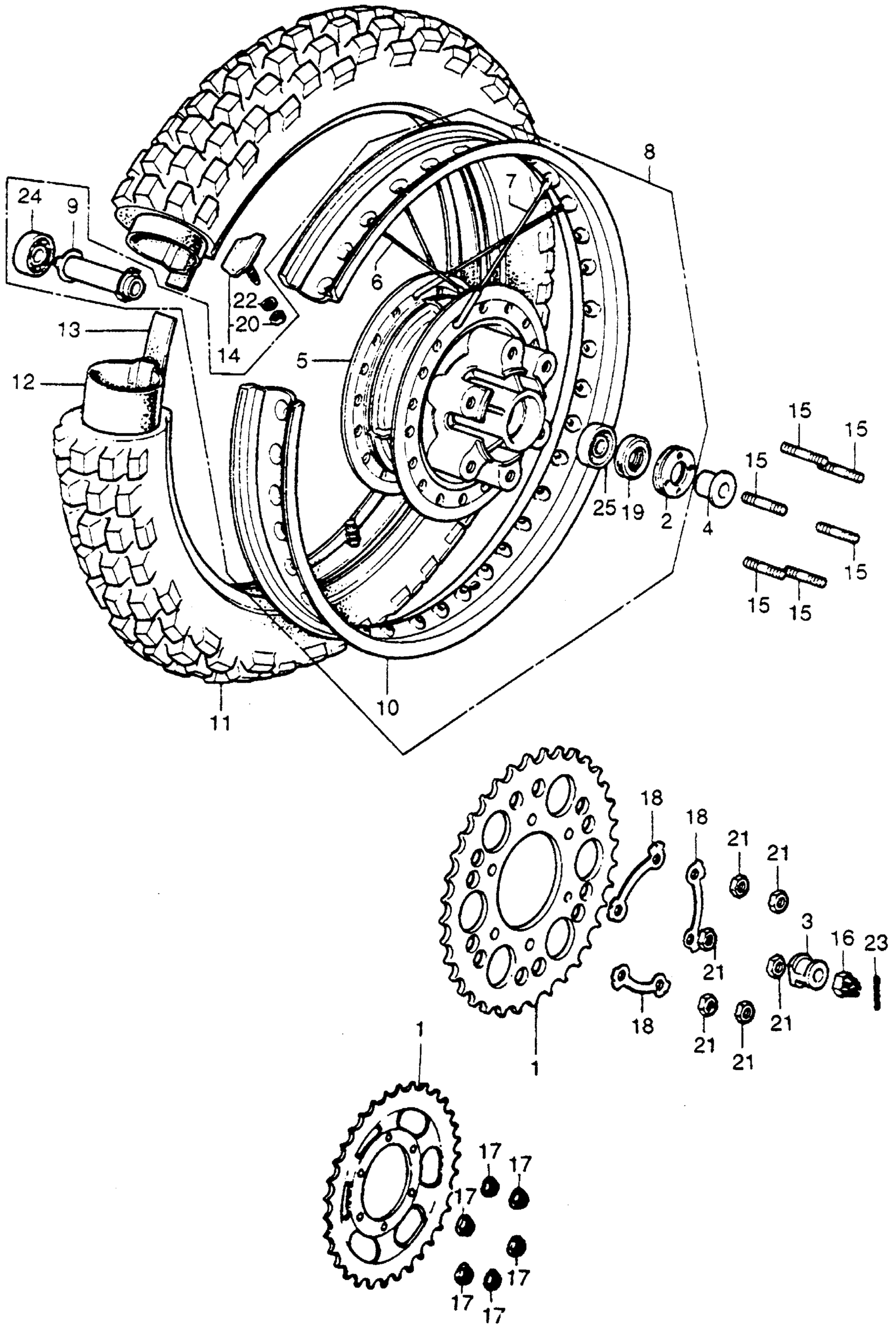

Honda CR250MA MOTORCYCLE, JPN, VIN# CR250M-1000216 TO CR250M-1025537 REAR WHEEL Diagram

#

Description
Price

1

SPROCKET (45T) | (Optional). This part replaces 41202-357-811.

41201-329-730

Unavailable

1

SPROCKET, DRIVEN (47T) (NOT AVAILABLE)

41203-357-020

Unavailable

1

SPROCKET, FINAL DRIVEN (49T) | (Optional).

41204-357-811

Unavailable

2

RETAINER, RR. WHEEL BEARING

41231-286-000

$29.11

3

COLLAR, RR. AXLE (NOT AVAILABLE)

42306-356-000

Unavailable

4

COLLAR, RR. WHEEL SIDE (NOT AVAILABLE)

42311-357-010

Unavailable

5

HUB, RR. WHEEL (NOT AVAILABLE)

42601-357-030

Unavailable

6

SPOKE A, RR. This part replaces 42606-357-000.

42606-357-305

Unavailable

6

SPOKE A, RR.

42606-357-305

Unavailable

7

SPOKE B, RR. This part replaces 42607-357-000.

42607-357-305

Unavailable

7

SPOKE B, RR.

42607-357-305

Unavailable

8

WHEEL, RR. (NOT AVAILABLE)

42610-357-305

Unavailable

9

COLLAR, RR. AXLE DISTANCE (NOT AVAILABLE)

42620-357-010

Unavailable

10

RIM, RR. WHEEL (DAIDO) (NOT AVAILABLE) This part replaces 42701-381-003.

42701-385-741

Unavailable

10

RIM, RR. WHEEL (DAIDO) (NOT AVAILABLE)

42701-385-741

Unavailable

11

TIRE, RR. WHEEL (4.00-18) (4PR) (DUNLOP) (NOT AVAILABLE)

42711-357-004

Unavailable

11

TIRE, RR. WHEEL (4.60-18) (4PR) (NOT AVAILABLE) | (Optional).

42711-357-811

Unavailable

11

TIRE, RR. WHEEL (4.50-18) (NOT AVAILABLE) | (Optional).

42711-357-813

Unavailable

11

TIRE, RR. (4.00-18) (BS) (NOT AVAILABLE)

42711-381-003

Unavailable

12

TUBE, TIRE This part replaces 08400-30000.

42712-KT1-673

$37.60

12

TUBE, TIRE This part replaces 08400-34001.

42712-KT1-673

$37.60

12

TUBE, TIRE This part replaces 42712-KA3-711.

42712-KT1-673

$37.60

12

TUBE, TIRE This part replaces 42712-KA5-681.

42712-KT1-673

$37.60

12

TUBE, TIRE This part replaces 42712-KS7-003.

42712-KT1-673

$37.60

12

TUBE, TIRE This part replaces 42712-KT1-671.

42712-KT1-673

$37.60

12

TUBE, TIRE This part replaces 42712-300-000.

42712-KT1-673

$37.60

12

TUBE, TIRE This part replaces 42712-300-003.

42712-KT1-673

$37.60

12

TUBE, TIRE This part replaces 42712-310-004.

42712-KT1-673

$37.60

12

TUBE, TIRE This part replaces 42712-312-003.

42712-KT1-673

$37.60

12

TUBE, TIRE This part replaces 42712-340-006.

42712-KT1-673

$37.60

12

TUBE, TIRE This part replaces 42712-374-003.

42712-KT1-673

$37.60

12

TUBE, TIRE This part replaces 42712-400-003.

42712-KT1-673

$37.60

12

TUBE, TIRE This part replaces 42712-425-003.

42712-KT1-673

$37.60

12

TUBE, TIRE This part replaces 42712-430-701.

42712-KT1-673

$37.60

12

TUBE, TIRE This part replaces 42712-435-003.

42712-KT1-673

$37.60

12

TUBE, TIRE This part replaces 42712-446-003.

42712-KT1-673

$37.60

12

TUBE, TIRE (DUNLOP) (NOT AVAILABLE)

44712-300-004

$65.43

13

FLAP, TIRE (2.15-18) (BS) (NOT AVAILABLE)

42713-300-003

$5.69

14

STOPPER, BEAD (2.15)

42715-MA0-770

$37.88

14

STOPPER, BEAD (2.15) This part replaces 42715-355-006.

42715-MA0-770

$37.88

14

STOPPER, BEAD (2.15) This part replaces 42715-357-000.

42715-MA0-770

$37.88

14

STOPPER, BEAD (2.15) This part replaces 42715-428-000.

42715-MA0-770

$37.88

14

STOPPER, BEAD (2.15) This part replaces 42715-467-000.

42715-MA0-770

$37.88

15

BOLT, STUD (8X45)

90125-329-010

$3.26

16

NUT, RR. WHEEL AXLE This part replaces 90306-268-000.

90306-329-770

$7.58

16

NUT, RR. WHEEL AXLE

90306-329-770

$7.58

17

NUT, HEX. (8MM)

90309-357-000

$3.40

18

WASHER, TONGUED (8MM) (NOT AVAILABLE)

90524-329-010

Unavailable

19

DUST SEAL (30X45X9.5)

91253-286-013

$6.81

20

NUT, HEX. (8MM)

94001-08000-0S

$1.49

21

NUT, HEX. (8MM)

94030-08000

$1.49

22

WASHER, SPRING (8MM)

94111-08000

$1.49

23

PIN, COTTER (4.0X30)

94201-40300

$1.49

24

BEARING, RADIAL BALL (6204U)

96140-62040-10

$21.84

25

BEARING, RADIAL BALL (6304U)

96140-63040-10

$24.03
