- CR250MA MOTORCYCLE, JPN, VIN# CR250M-1000216 TO CR250M-1025537
REAR SHOCK ABSORBER M

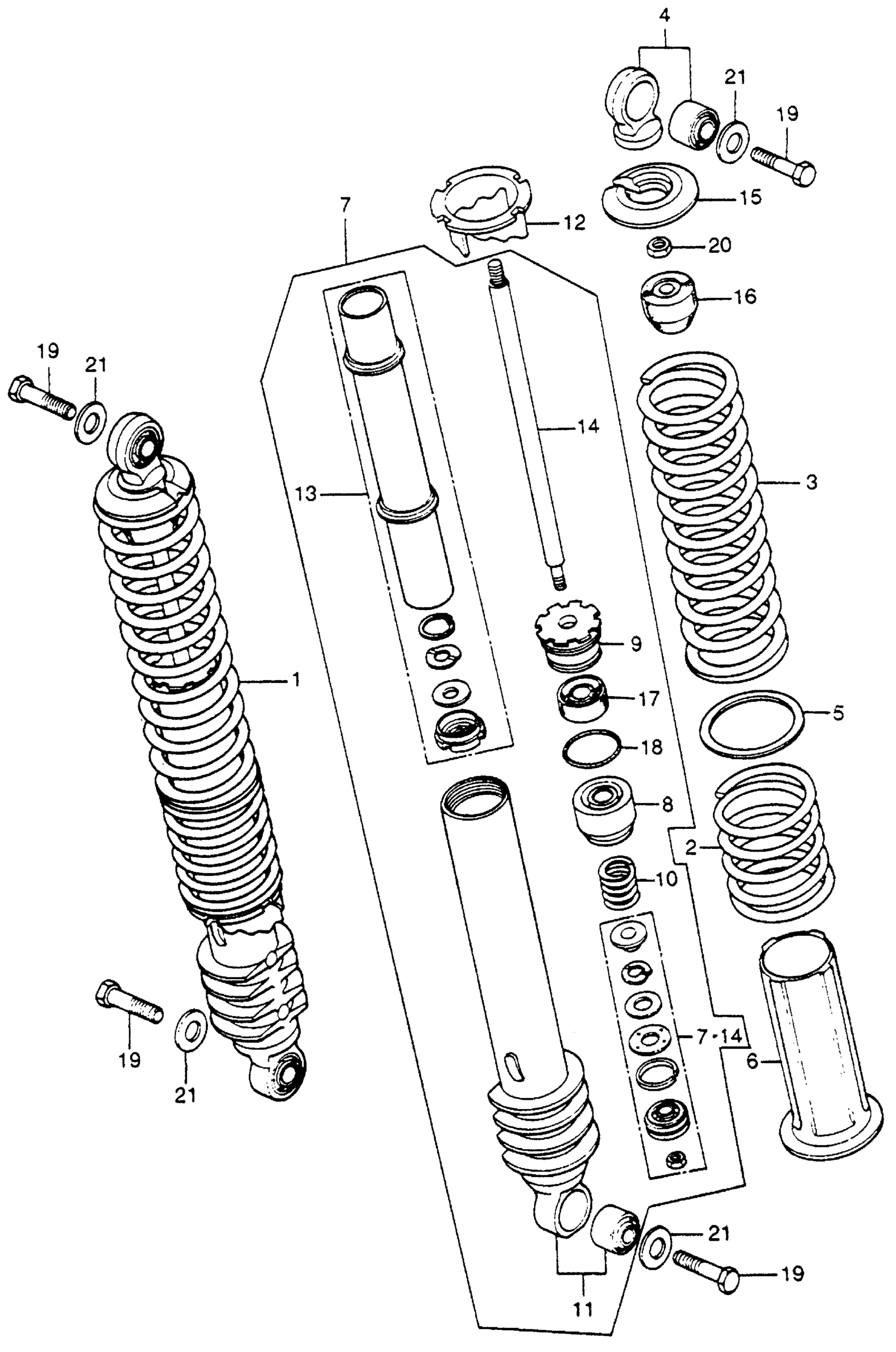

Honda CR250MA MOTORCYCLE, JPN, VIN# CR250M-1000216 TO CR250M-1025537 REAR SHOCK ABSORBER M Diagram
#
Description
Price
1
CUSHION ASSY., RR. (NOT AVAILABLE)
52400-357-670
Unavailable
2
SPRING A, RR. SHOCK ABSORBER (NOT AVAILABLE) | (Optional).
52401-357-010
Unavailable
2
SPRING A, RR. SHOCK ABSORBER (NOT AVAILABLE)
52401-357-670
Unavailable
3
SPRING B, RR. SHOCK ABSORBER (NOT AVAILABLE) | (Optional).
52402-357-010
Unavailable
3
SPRING B, RR. SHOCK ABSORBER (NOT AVAILABLE)
52402-357-670
Unavailable
4
JOINT (UPPER) (NOT AVAILABLE)
52403-357-000
Unavailable
5
JOINT, RR. SHOCK ABSORBER SPRING (NOT AVAILABLE)
52404-357-020
Unavailable
6
GUIDE, RR. SHOCK ABSORBER SPRING (NOT AVAILABLE)
52405-357-020
Unavailable
7
DAMPER, RR. (NOT AVAILABLE)
52410-357-020
Unavailable
8
GUIDE, ROD (NOT AVAILABLE)
52411-357-010
Unavailable
9
CASE, OIL SEAL (NOT AVAILABLE)
52412-357-010
Unavailable
10
SPRING, REBOUND STOPPER (NOT AVAILABLE)
52414-312-000
Unavailable
11
CASE, RR. SHOCK ABSORBER
52420-357-305
Unavailable
12
ADJUSTER, RR. SHOCK ABSORBER SPRING
52422-357-020
Unavailable
13
CYLINDER ASSY., SHOCK ABSORBER (NOT AVAILABLE)
52430-357-305
Unavailable
14
ROD, SHOCK ABSORBER
52440-357-010
Unavailable
15
SEAT, RR. SHOCK ABSORBER SPRING (UPPER) (NOT AVAILABLE)
52459-357-000
Unavailable
16
RUBBER, STOPPER (NOT AVAILABLE)
52517-357-000
Unavailable
17
OIL SEAL (10X25X9.5) (NOT AVAILABLE)
91256-300-970
Unavailable
18
O-RING (30.8X1.9) (NOT AVAILABLE)
91317-591-005
Unavailable
19
BOLT, HEX. (10X32) (SOURCE: VINTAGE PARTS INC.) This part replaces 92000-10032-0A.
92101-10032-0A
Unavailable
19
BOLT, HEX. (10X32) (SOURCE: VINTAGE PARTS INC.) This part replaces 92025-10032-0A.
92101-10032-0A
Unavailable
19
BOLT, HEX. (10X32) (SOURCE: VINTAGE PARTS INC.)
92101-10032-0A
Unavailable
