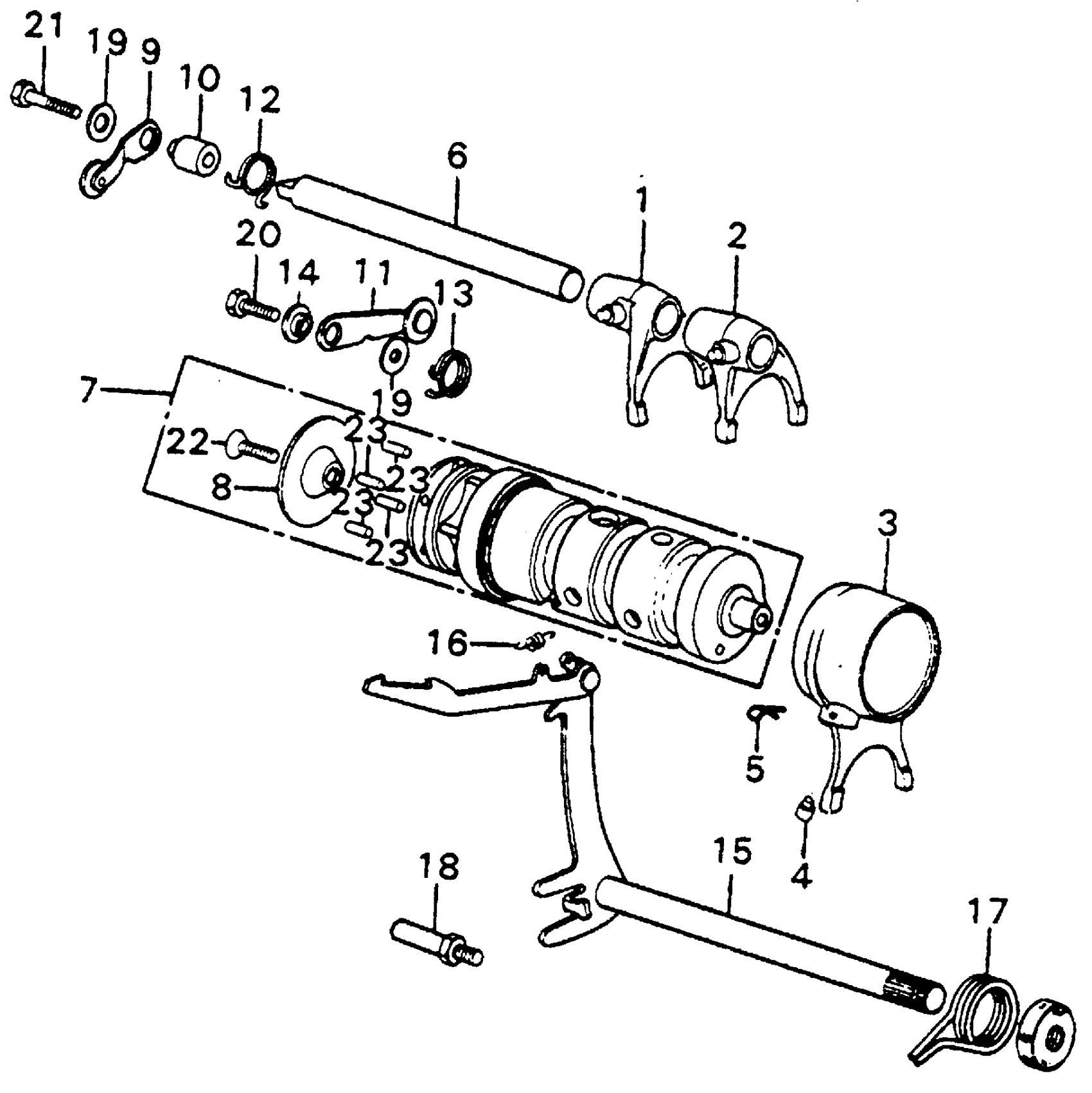

Honda CR250MA MOTORCYCLE, JPN, VIN# CR250M-1000216 TO CR250M-1025537 GEARSHIFT DRUM Diagram

#

Description
Price

1

FORK, R. GEARSHIFT (NOT AVAILABLE) This part replaces 24211-357-020.

24211-395-000

Unavailable

1

FORK, R. GEARSHIFT (NOT AVAILABLE)

24211-395-000

Unavailable

2

FORK, L. GEARSHIFT (NOT AVAILABLE) This part replaces 24221-357-020.

24221-395-000

Unavailable

2

FORK, L. GEARSHIFT

24221-395-000

Unavailable

3

FORK, GEARSHIFT CENTER This part replaces 24231-357-020.

24231-395-000

Unavailable

3

FORK, GEARSHIFT CENTER

24231-395-000

Unavailable

4

PIN, GEARSHIFT FORK GUIDE (NOT AVAILABLE)

24261-357-010

Unavailable

5

CLIP, GEARSHIFT FORK GUIDE (NOT AVAILABLE)

24263-357-000

Unavailable

6

SHAFT, GEARSHIFT FORK GUIDE (NOT AVAILABLE)

24265-357-010

Unavailable

7

DRUM, GEARSHIFT

24301-357-030

Unavailable

8

PLATE, DRUM PIN STOPPER (NOT AVAILABLE)

24307-357-300

Unavailable

9

ARM, NEUTRAL STOPPER (NOT AVAILABLE)

24420-357-010

Unavailable

10

COLLAR, NEUTRAL STOPPER (NOT AVAILABLE)

24425-357-000

Unavailable

11

ARM, DRUM STOPPER (NOT AVAILABLE)

24430-357-010

Unavailable

12

SPRING, NEUTRAL STOPPER ARM (NOT AVAILABLE)

24435-357-020

Unavailable

13

SPRING, DRUM STOPPER ARM (NOT AVAILABLE)

24436-357-040

Unavailable

14

COLLAR, SHIFT DRUM STOPPER (NOT AVAILABLE)

24438-216-000

Unavailable

15

SPINDLE ASSY., GEARSHIFT (NOT AVAILABLE)

24600-357-000

Unavailable

16

SPRING, GEARSHIFT ARM (NOT AVAILABLE)

24641-292-000

Unavailable

17

SPRING, GEARSHIFT RETURN (NOT AVAILABLE)

24651-357-010

Unavailable

18

PIN, SHIFT RETURN SPRING (NOT AVAILABLE)

24652-357-000

Unavailable

19

WASHER, GEARSHIFT DRUM STOPPER (NOT AVAILABLE)

90417-302-000

Unavailable

20

BOLT, HEX. (6X18) This part replaces 92000-06018.

92101-06018-0A

$1.49

20

BOLT, HEX. (6X18) This part replaces 92000-06018-0A.

92101-06018-0A

$1.49

20

BOLT, HEX. (6X18)

92101-06018-0A

$1.49

20

BOLT, HEX. (6X18) This part replaces 92200-06018.

92101-06018-0A

$1.49

21

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.49

21

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

22

SCREW, FLAT (6X14) This part replaces 93600-06014.

93600-06014-0A

$1.49

22

SCREW, FLAT (6X14)

93600-06014-0A

$1.49

23

ROLLER (4X10) (SOURCE: VINTAGE PARTS INC.)

96221-40100

Unavailable
