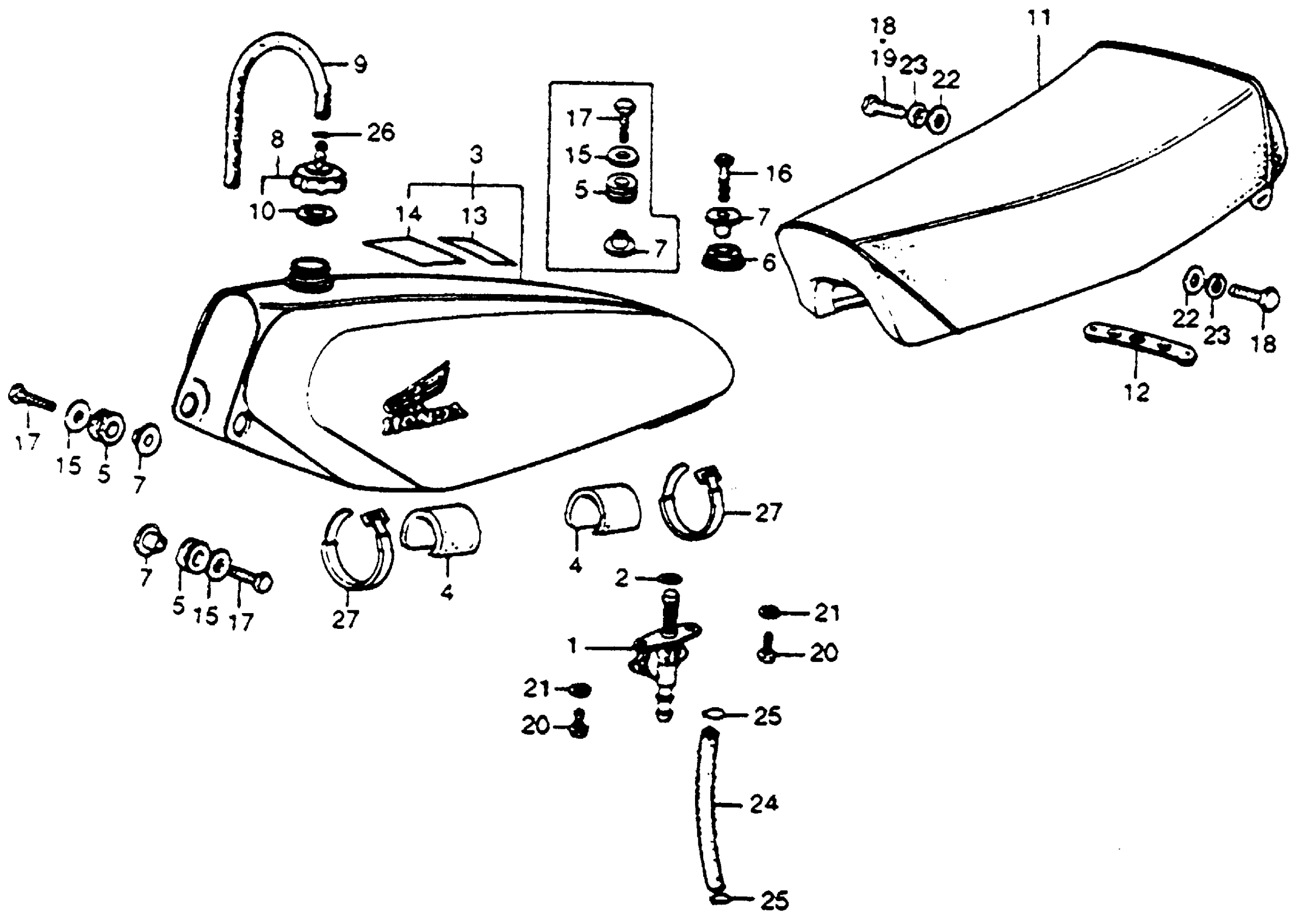

Honda CR250MA MOTORCYCLE, JPN, VIN# CR250M-1000216 TO CR250M-1025537 FUEL TANK + SEAT Diagram

#

Description
Price

1

PETCOCK ASSY. (NOT AVAILABLE)

16950-357-010

Unavailable

2

O-RING (11.8X2.4)

91302-ZE9-003

$2.57

2

O-RING (11.8X2.4)

91320-MJ6-003

$2.79

3

TANK, FUEL (NOT AVAILABLE)

17500-357-306

Unavailable

4

RUBBER B, FUEL TANK MOUNT (NOT AVAILABLE)

17506-357-000

Unavailable

5

RUBBER, FUEL TANK MOUNT (NOT AVAILABLE)

17507-360-000

Unavailable

7

COLLAR, FUEL TANK MOUNT

17508-357-000

Unavailable

8

CAP ASSY., FUEL TANK (NOT AVAILABLE) This part replaces 17510-355-000.

17510-355-010

Unavailable

8

CAP ASSY., FUEL TANK (NOT AVAILABLE)

17510-355-010

Unavailable

9

TUBE, FUEL CAP BREATHER (NOT AVAILABLE)

17520-357-000

Unavailable

10

GASKET, FUEL CAP This part replaces 17624-098-010.

17624-896-750

Unavailable

10

GASKET, FUEL CAP This part replaces 17624-355-000.

17624-896-750

Unavailable

10

GASKET, FUEL CAP This part replaces 17624-355-010.

17624-896-750

Unavailable

10

GASKET, FUEL CAP

17624-896-750

Unavailable

11

SEAT (NOT AVAILABLE)

77100-381-000

Unavailable

12

RUBBER, SEAT MOUNT (NOT AVAILABLE)

77106-357-000

Unavailable

15

WASHER, SEAT

90501-040-000

Unavailable

17

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

17

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

17

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

18

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.49

18

BOLT, HEX. (8X16)

92101-08016-0A

$1.49

19

BOLT, HEX. (8X20)

92101-08020-0A

$1.62

20

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

20

SCREW, PAN (6X12)

93500-06012-0A

$1.49

20

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

21

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

21

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

21

WASHER, PLAIN (6MM)

94101-06800

$1.49

22

WASHER, PLAIN (8MM)

94102-08000

$1.49

22

WASHER, PLAIN (8MM)

94101-08000

$1.49

23

WASHER, SPRING (8MM)

94111-08000

$1.49

24

BULK HOSE, FUEL (7.5X8000) (7.3X170)

95001-75008-60M

$103.82

24

BULK HOSE, FUEL (7.5X8000) (7.5X210)

95001-75008-60M

$103.82

25

CLIP, TUBE (B12)

95002-02120

$2.00

26

CLIP, TUBE (C9)

95002-50000

$1.49

27

BAND A3, CABLE

95014-61300

$1.97
