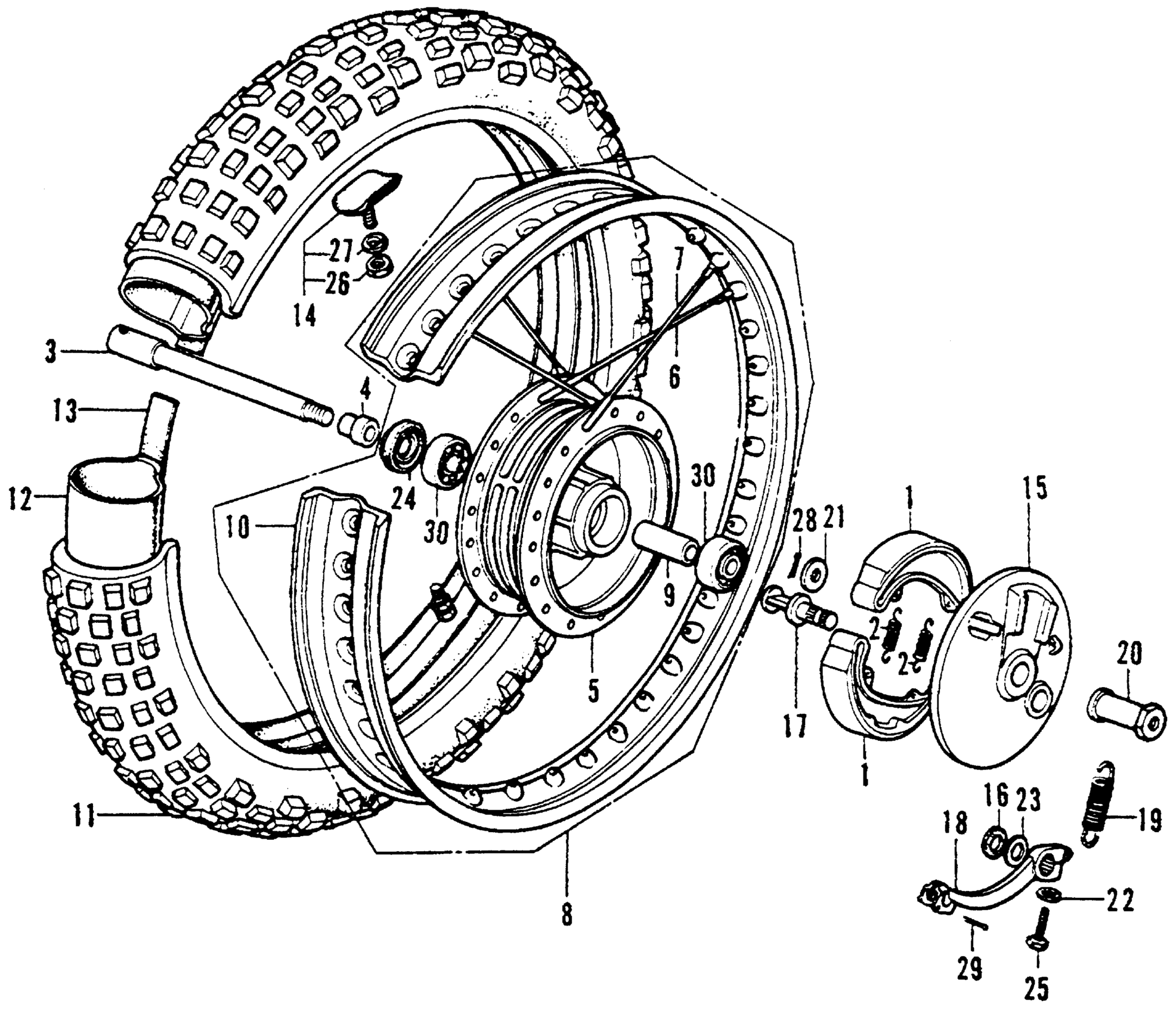

Honda CR250MA MOTORCYCLE, JPN, VIN# CR250M-1000216 TO CR250M-1025537 FRONT WHEEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE (ASK) This part replaces 06450-KBG-000.

06450-KC2-680

$42.29

NI

SHOE SET, BRAKE

06450-KC2-680

$42.29

NI

SHOE SET, BRAKE (ASK) This part replaces 06450-KC2-681.

06450-KC2-680

$42.29

NI

SHOE SET, BRAKE (ASK) This part replaces 431A2-329-670.

06450-KC2-680

$42.29

1

SHOE SET, BRAKE (ASK) This part replaces 43120-329-670.

06450-KC2-680

$42.29

2

SPRING, RR. BRAKE SHOE

43151-329-000

$2.75

3

AXLE, FR. WHEEL (NOT AVAILABLE)

44301-329-000

Unavailable

4

COLLAR, FR. WHEEL SIDE (NOT AVAILABLE)

44311-357-000

Unavailable

5

HUB, FR. WHEEL (NOT AVAILABLE)

44601-357-000

Unavailable

6

SPOKE A, FR. (NOT AVAILABLE) This part replaces 44606-357-000.

44606-357-305

$8.59

6

SPOKE A, FR. (NOT AVAILABLE)

44606-357-305

$8.59

7

SPOKE B, FR. (NOT AVAILABLE) This part replaces 44607-357-000.

44607-357-305

Unavailable

7

SPOKE B, FR. (NOT AVAILABLE)

44607-357-305

Unavailable

8

WHEEL, FR. (NOT AVAILABLE)

44610-357-305

Unavailable

9

COLLAR, FR. AXLE DISTANCE

44620-230-000

$9.90

10

RIM, FR. WHEEL This part replaces 44701-381-003.

44701-381-013

Unavailable

11

TIRE, FR. (3.00-21) (4PR) (OHTSU) (NOT AVAILABLE)

44711-357-004

Unavailable

11

TIRE, FR. (3.00-21) (4PR) (BS) (NOT AVAILABLE)

44711-357-003

Unavailable

12

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 0Y400-33100.

44712-446-631

Unavailable

12

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 08400-33100.

44712-446-631

Unavailable

12

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 08400-34010.

44712-446-631

Unavailable

12

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-KB1-911.

44712-446-631

Unavailable

12

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-MC4-005.

44712-446-631

Unavailable

12

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-329-003.

44712-446-631

Unavailable

12

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-331-671.

44712-446-631

Unavailable

12

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-340-003.

44712-446-631

Unavailable

12

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-340-006.

44712-446-631

Unavailable

12

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-400-004.

44712-446-631

Unavailable

12

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-437-971.

44712-446-631

Unavailable

12

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-446-003.

44712-446-631

Unavailable

12

TUBE, TIRE (2.75/3.00-21) (INOUE)

44712-446-631

Unavailable

13

FLAP, TIRE (NOT AVAILABLE) | Use up to Frame SN 2002837

44713-357-004

Unavailable

13

FLAP, TIRE (1.60-21) (BS) (NOT AVAILABLE) | Use from Frame SN 2002838

44713-340-003

Unavailable

14

STOPPER, BEAD (1.60) (NOT AVAILABLE) This part replaces 44715-357-000.

44715-444-000

Unavailable

14

STOPPER, BEAD (1.60) (NOT AVAILABLE)

44715-444-000

Unavailable

15

PANEL, FR. BRAKE (NOT AVAILABLE)

45100-357-000

Unavailable

16

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

17

CAM, FR. BRAKE (NOT AVAILABLE)

45141-357-010

Unavailable

18

ARM, FR. BRAKE

45410-357-000

Unavailable

19

SPRING, BRAKE ARM RETURN (NOT AVAILABLE)

45435-357-000

Unavailable

20

NUT, FR. WHEEL AXLE (NOT AVAILABLE)

90305-329-000

Unavailable

21

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

22

WASHER, RR. BRAKE ARM

90525-001-000

$1.95

23

WASHER (14MM)

90549-121-000

Unavailable

24

OIL SEAL (26X42X7)

91252-230-003

$10.56

25

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

25

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

26

NUT, HEX. (8MM)

94001-08000-0S

$1.49

27

WASHER, SPRING (8MM)

94111-08000

$1.49

28

PIN, COTTER (2.0X15)

94201-20150

$1.49

29

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

29

PIN, COTTER (2.0X22)

94201-20220

$1.49

29

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

29

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

29

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

29

PIN, COTTER (2.0X35)

94201-20350

$1.49

29

PIN, COTTER (2.0X22)

94201-29220

$1.49

30

BEARING, RADIAL BALL (6302UU) This part replaces 96140-63020-10.

96150-63020-10

$15.36

30

BEARING, RADIAL BALL (6302UU)

96150-63020-10

$15.36
