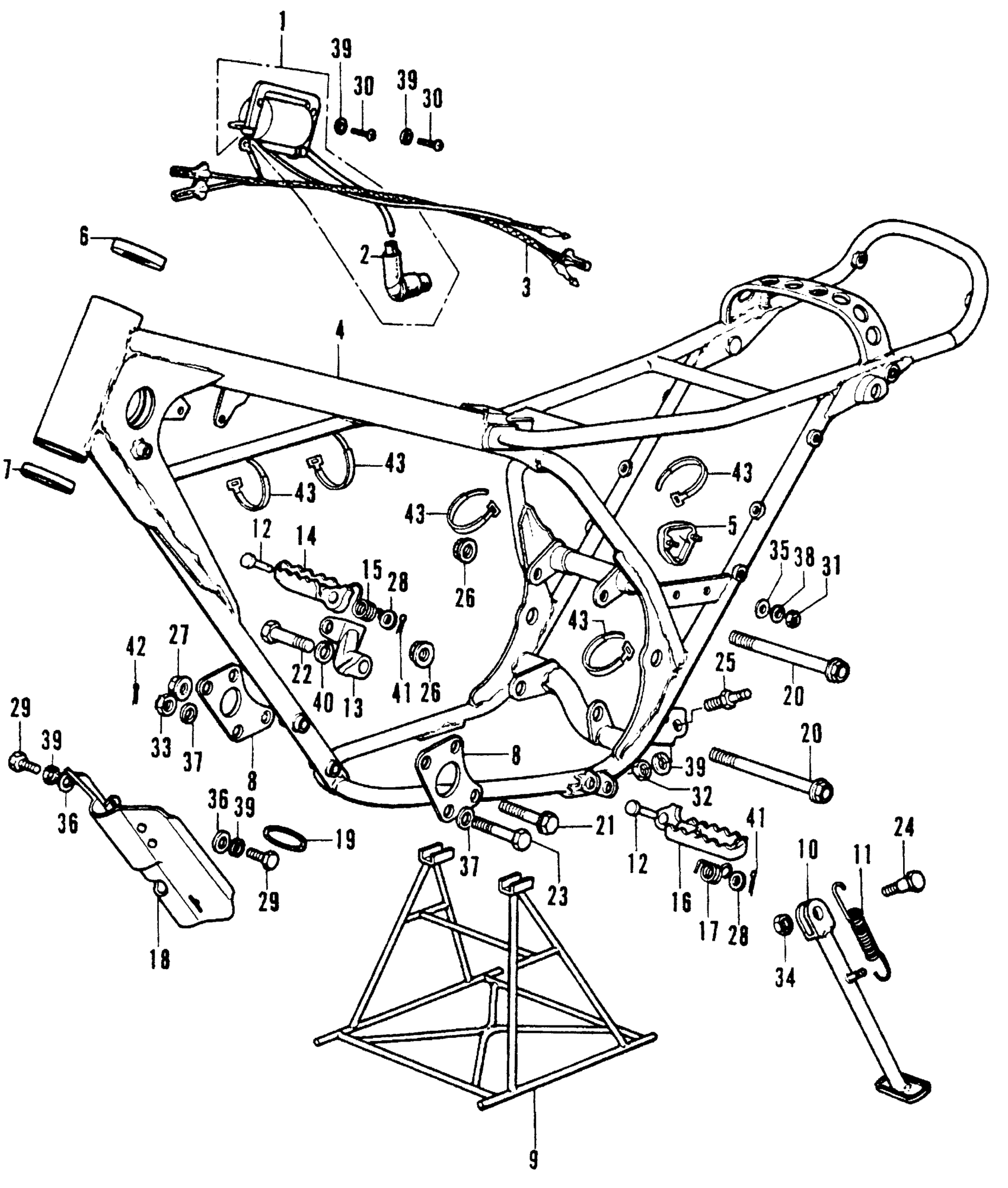

Honda CR250MA MOTORCYCLE, JPN, VIN# CR250M-1000216 TO CR250M-1025537 FRAME WIRE HARNESS M Diagram

#

Description
Price

1

COIL, IGNITION (KOKUSAN) (NOT AVAILABLE)

30500-357-003

Unavailable

2

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-357-000.

30700-373-153

Unavailable

2

CAP ASSY., NOISE SUPPRESSOR

30700-373-153

Unavailable

2

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-373-670.

30700-373-153

Unavailable

3

WIRE HARNESS (NOT AVAILABLE)

32100-357-670

Unavailable

4

FRAME (NOT AVAILABLE)

50100-357-010

Unavailable

5

SLIDER, CHAIN GUIDE (NOT AVAILABLE)

50240-357-000

Unavailable

6

RACE, STEERING TOP BALL This part replaces 50301-200-315.

50301-268-010

$22.12

6

RACE, STEERING TOP BALL This part replaces 50301-268-000.

50301-268-010

$22.12

6

RACE, STEERING BALL (UPPER)

50301-268-010

$22.12

6

RACE, STEERING TOP BALL This part replaces 50301-268-305.

50301-268-010

$22.12

6

RACE, STEERING TOP BALL This part replaces 50302-200-000.

50301-268-010

$22.12

6

RACE, STEERING TOP BALL This part replaces 50302-200-305.

50301-268-010

$22.12

7

RACE, STEERING TOP BALL This part replaces 50301-268-000.

50301-268-010

$22.12

7

RACE, STEERING BALL (UPPER)

50301-268-010

$22.12

7

RACE, STEERING TOP BALL This part replaces 50301-268-305.

50301-268-010

$22.12

8

BRACKET, ENGINE HANGER (NOT AVAILABLE)

50351-357-000

Unavailable

9

STAND, MAIN (NOT AVAILABLE) | (Optional).

50500-357-811

Unavailable

10

BAR, SIDE STAND (NOT AVAILABLE)

50530-357-000

Unavailable

11

SPRING, SIDE STAND

50542-310-010

Unavailable

12

PIN, MAIN STEP BAR JOINT

50603-GS9-010

$5.46

12

PIN, MAIN STEP BAR JOINT This part replaces 50603-056-000.

50603-GS9-010

$5.46

13

ARM, R. STEP (NOT AVAILABLE)

50615-357-000

Unavailable

14

STEP, R.

50616-357-000

Unavailable

15

SPRING, R. STEP RETURN

50617-MM9-000

$4.53

15

SPRING, R. STEP RETURN This part replaces 50617-329-000.

50617-MM9-000

$4.53

16

STEP, L. (NOT AVAILABLE)

50642-357-000

Unavailable

17

SPRING, L. STEP RETURN

50644-MM9-000

$4.53

17

SPRING, L. STEP RETURN This part replaces 50644-329-000.

50644-MM9-000

$4.53

18

SPLASH GUARD, ENGINE (NOT AVAILABLE)

61141-357-810

Unavailable

19

RING, SPLASH GUARD (NOT AVAILABLE)

61143-357-810

Unavailable

20

BOLT, HEX. (10X123) (NOT AVAILABLE)

90102-357-010

Unavailable

21

BOLT, HEX. (8MM) (NOT AVAILABLE)

90103-357-000

Unavailable

22

BOLT, HEX. (10MM) (NOT AVAILABLE)

90104-357-000

Unavailable

23

BOLT, HEX. (8MM) (NOT AVAILABLE)

90105-357-000

Unavailable

24

SCREW, SIDE STAND PIVOT

90108-283-000

$7.72

25

HOOK, SIDE STAND SPRING (NOT AVAILABLE)

90109-357-010

Unavailable

26

NUT, HEX. (10MM)

90308-357-000

$4.85

27

NUT, HEX. (8MM)

90309-357-000

$3.40

28

WASHER, PLAIN (8MM)

90518-921-000

$1.49

29

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

29

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

29

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

30

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

30

SCREW, PAN (6X20)

93500-06020-0A

$1.49

31

NUT, HEX. (5MM)

94001-05000-0S

$2.74

32

NUT, HEX. (6MM) This part replaces 94001-06200.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM)

94001-06200-0S

$1.49

33

NUT, SELF-LOCK (8MM)

94011-08000-0S

$9.38

34

NUT, HEX. (10MM)

94030-10000

$1.49

35

WASHER, PLAIN (5MM)

94101-05000

$1.49

36

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

36

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

36

WASHER, PLAIN (6MM)

94101-06800

$1.49

37

WASHER, PLAIN (8MM)

94101-08000

$1.49

38

WASHER, SPRING (5MM)

94111-05000

$1.49

39

WASHER, SPRING (6MM)

94111-06000

$1.49

40

WASHER, SPRING (8MM)

94111-10000

$1.49

41

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

41

PIN, COTTER (1.6X25)

94201-16250

$1.49

42

PIN, COTTER (2.0X15)

94201-20150

$1.49

43

BAND B1, CABLE

32161-404-000

$2.23

43

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23
