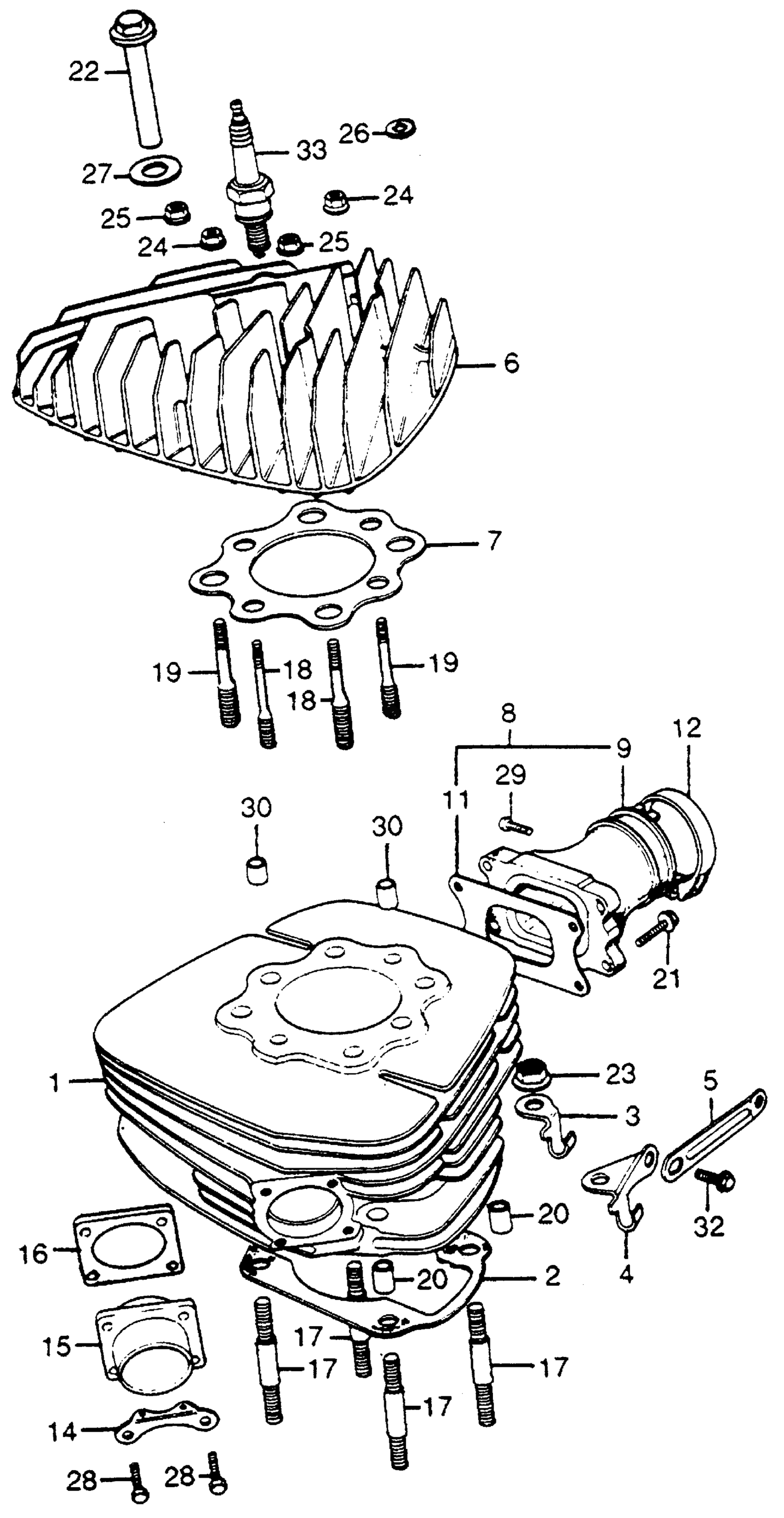

Honda CR250MA MOTORCYCLE, JPN, VIN# CR250M-1000216 TO CR250M-1025537 CYLINDER + CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER

12100-357-020

Unavailable

1

CYLINDER (NOT AVAILABLE) | (Optional).

12100-357-810

Unavailable

2

GASKET, CYLINDER This part replaces 12191-357-020.

12191-357-306

$8.30

2

GASKET, CYLINDER

12191-357-306

$8.30

6

CYLINDER HEAD (NOT AVAILABLE)

12200-357-030

Unavailable

7

GASKET, CYLINDER HEAD

12251-357-020

Unavailable

9

PIPE, INLET (34MM) (NOT AVAILABLE)

16221-357-030

Unavailable

9

PIPE, INLET (36MM) (NOT AVAILABLE) | (Optional).

16221-357-810

Unavailable

11

GASKET, IN. PIPE (NOT AVAILABLE)

16229-357-010

Unavailable

12

BAND, INSULATOR

16223-KS5-000

$14.20

12

BAND, INSULATOR This part replaces 16223-357-010.

16223-KS5-000

$14.20

14

STAY, EX. PIPE (NOT AVAILABLE)

18331-357-000

Unavailable

15

JOINT, EX. PIPE

18351-357-000

Unavailable

16

GASKET, EX. PIPE JOINT

18359-357-000

Unavailable

17

BOLT, CYLINDER STUD (8X126.5) (NOT AVAILABLE)

90031-357-010

Unavailable

19

BOLT, STUD (6X55)

90034-357-010

Unavailable

20

PIN, DOWEL (12X16)

90036-357-000

$3.69

21

BOLT, SPECIAL FLANGE (6X22)

90050-357-000

$3.35

22

NUT, SPECIAL (8MM)

90230-357-010

Unavailable

24

NUT, FLANGE (6MM) (NOT AVAILABLE)

90233-357-000

Unavailable

26

WASHER A, SEALING (6MM)

90443-035-000

$3.65

27

WASHER (13MM) (NOT AVAILABLE)

90455-357-000

Unavailable

28

BOLT, HEX. (6X18) This part replaces 92000-06018.

92101-06018-0A

$1.49

28

BOLT, HEX. (6X18) This part replaces 92000-06018-0A.

92101-06018-0A

$1.49

28

BOLT, HEX. (6X18)

92101-06018-0A

$1.49

28

BOLT, HEX. (6X18) This part replaces 92200-06018.

92101-06018-0A

$1.49

29

SCREW, PAN (5X16)

93500-05016-0A

$1.49

30

PIN A, DOWEL (10X16)

94301-10160

$2.28

31

WASHER, PLAIN (5MM)

94101-05000

$1.49

33

SPARK PLUG (BR9EG) (NGK) This part replaces 98079-59644.

98079-59679

$5.80

33

SPARK PLUG (BR9EG) (NGK)

98079-59679

$5.80
