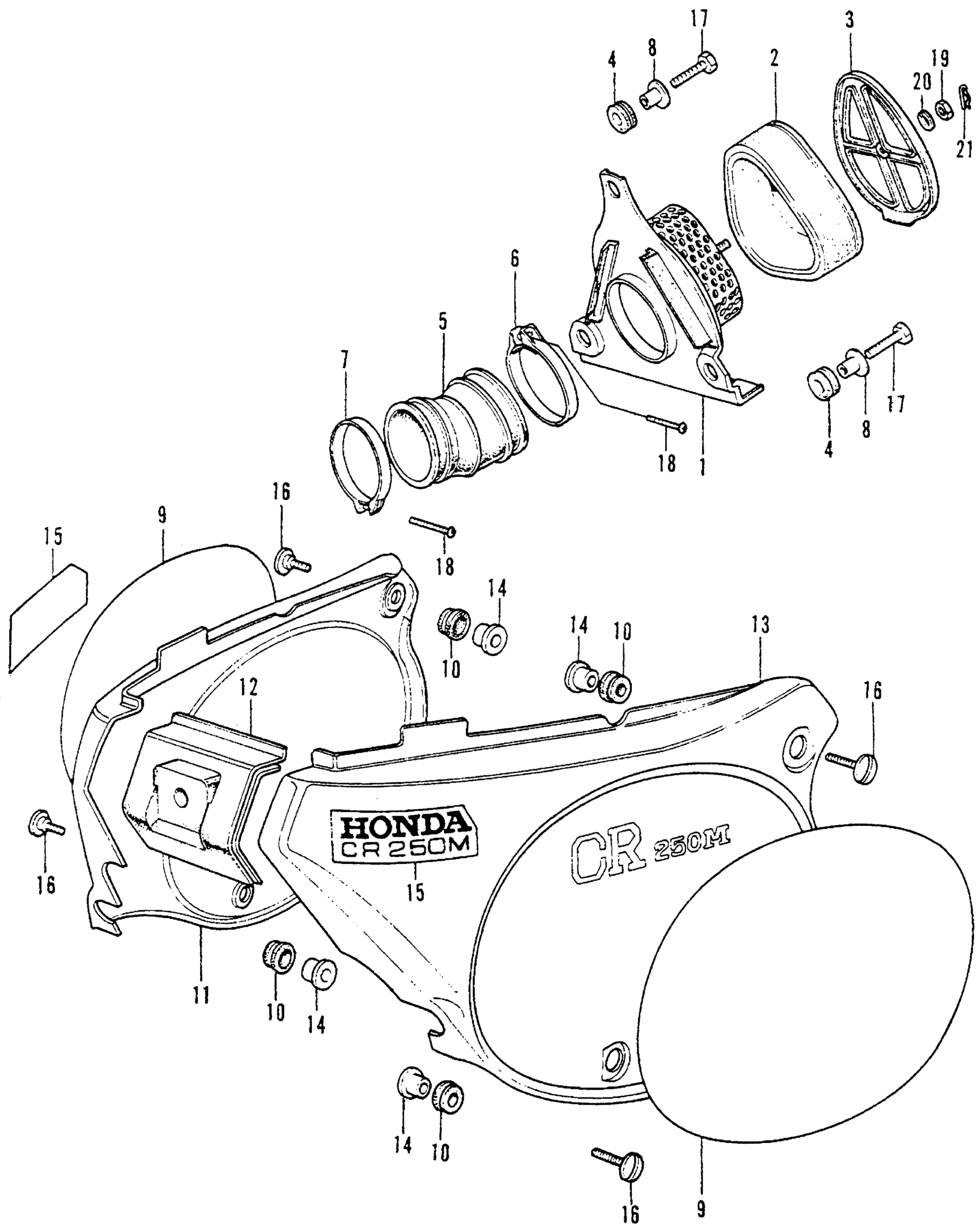

Honda CR250MA MOTORCYCLE, JPN, VIN# CR250M-1000216 TO CR250M-1025537 AIR CLEANER + SIDE COVER M Diagram

#

Description
Price

1

BASE, AIR CLEANER (NOT AVAILABLE)

17211-357-020

Unavailable

2

ELEMENT, AIR CLEANER (NOT AVAILABLE)

17212-357-010

Unavailable

3

HOLDER, AIR CLEANER ELEMENT (NOT AVAILABLE)

17213-357-010

Unavailable

4

RUBBER, AIR CLEANER HOUSING SETTING

17245-107-010

$2.89

5

TUBE, AIR CLEANER CONNECTING (NOT AVAILABLE)

17253-357-020

Unavailable

6

BAND A, AIR CLEANER CONNECTING TUBE (NOT AVAILABLE)

17256-357-000

Unavailable

7

BAND B, AIR CLEANER CONNECTING TUBE (NOT AVAILABLE)

17257-357-000

Unavailable

8

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

8

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

8

COLLAR, RR. FENDER

61105-428-000

Unavailable

9

PLATE A, NUMBER (YELLOW) (NOT AVAILABLE) | (Optional).

61132-357-810

Unavailable

9

PLATE B, NUMBER (WHITE) (NOT AVAILABLE) | (Optional).

61133-357-810

Unavailable

10

RUBBER A, RR. FENDER

80105-061-000

$4.01

11

COVER, R. SIDE (NOT AVAILABLE)

83500-357-010

Unavailable

12

RUBBER, SIDE COVER SETTING (NOT AVAILABLE)

83502-357-000

Unavailable

13

COVER, L. SIDE (NOT AVAILABLE)

83600-357-010

Unavailable

14

COLLAR, COVER SETTING

83601-357-000

$5.56

15

EMBLEM, SIDE COVER (NOT AVAILABLE)

87204-357-670

Unavailable

16

SCREW (6X12) (NOT AVAILABLE)

90161-357-010

Unavailable

17

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

17

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

17

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

18

SCREW, PAN (4X20)

93500-04020-0A

$1.49

19

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM)

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

20

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

20

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

20

WASHER, PLAIN (6MM)

94101-06800

$1.49

21

PIN, LOCK (6MM)

94251-06000

$1.49
