1988 Kawasaki Concours Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 1988 Kawasaki Concours, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

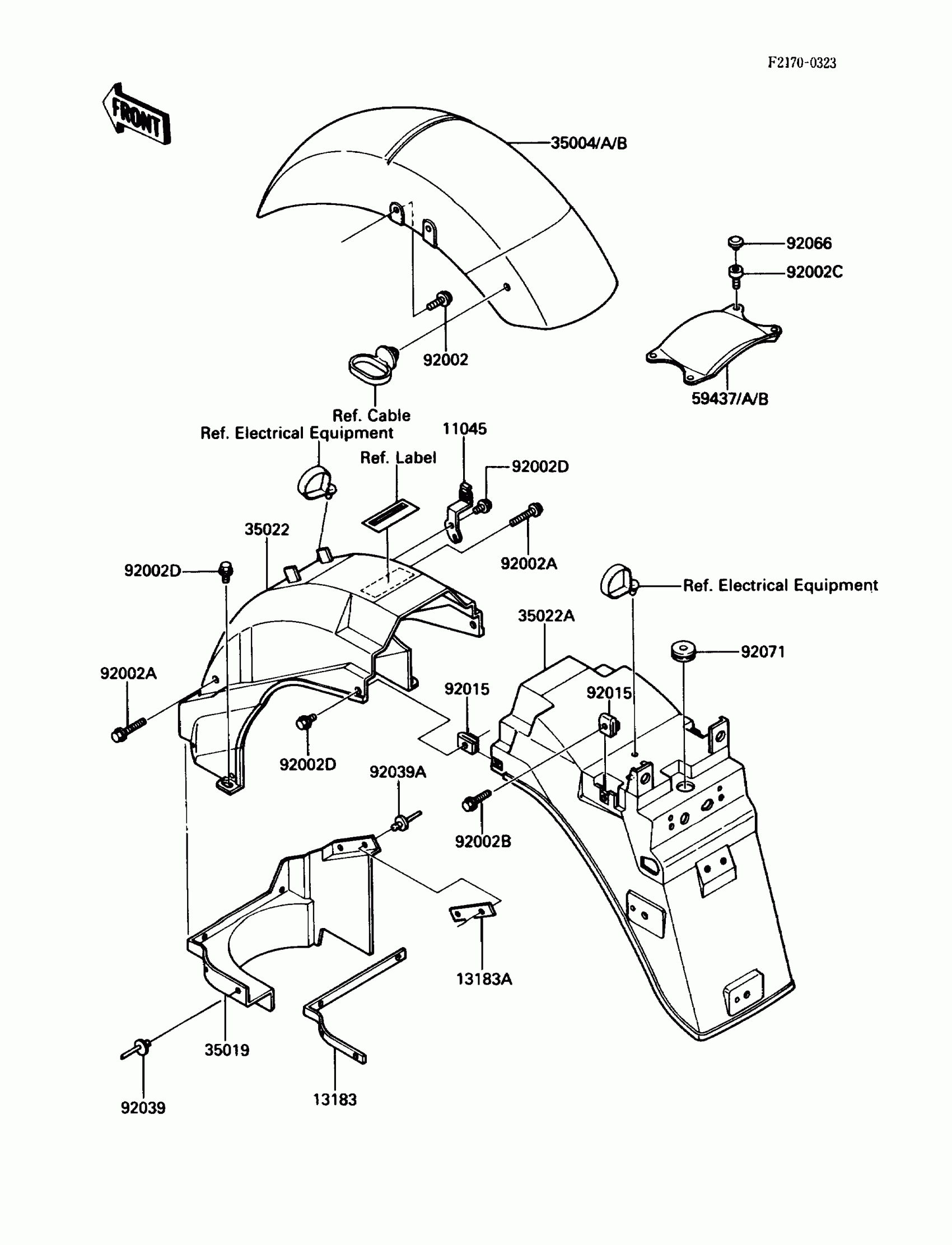

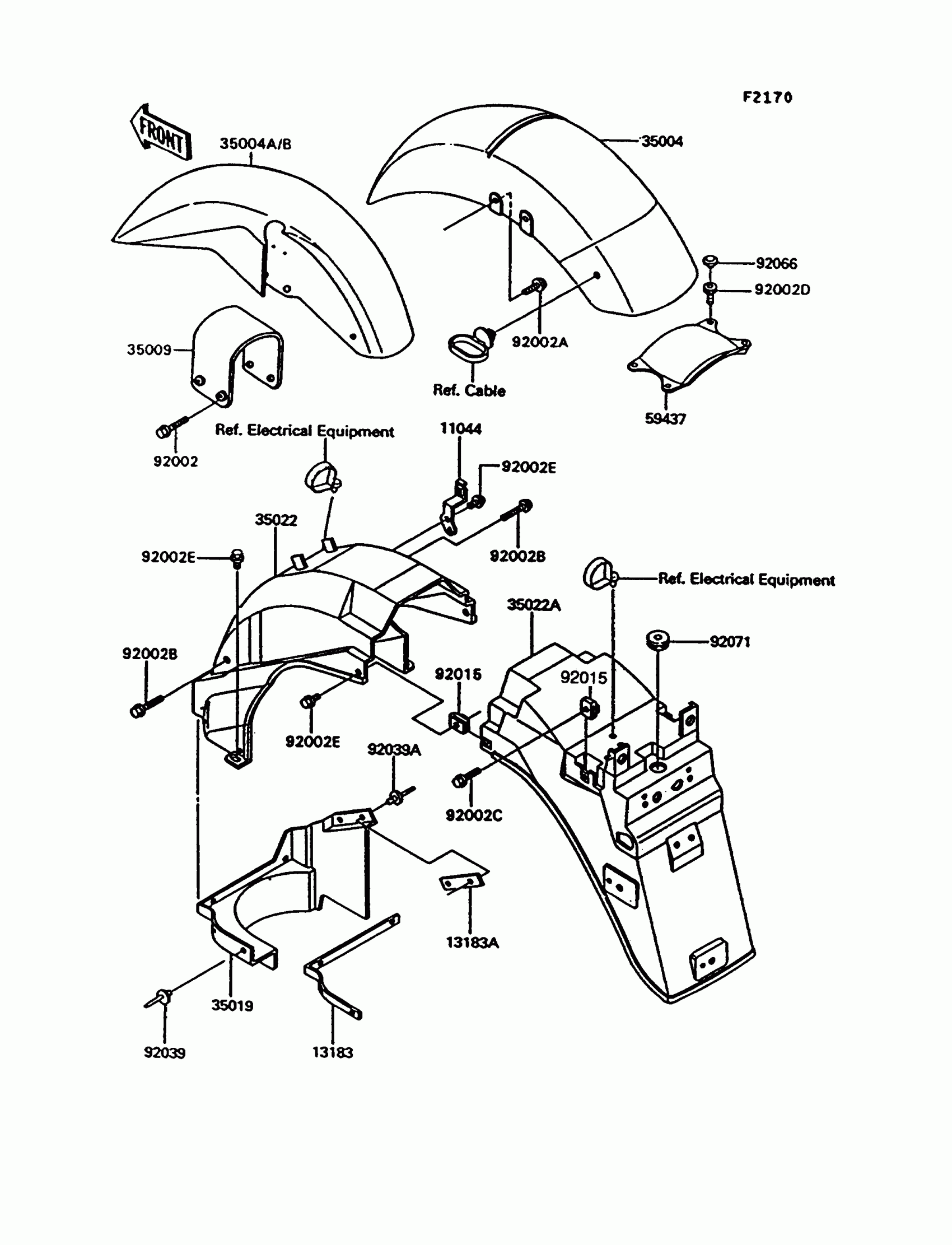

1988 Kawasaki Concours Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11045

1

$11.02

In stock

13183

1

$15.24

In stock

13183A

1

$7.15

In stock

35004

FENDER-FRONT,RED/BLACK

35004-1191-CR

1
Out of stock

35019

FLAP,REAR FENDER,FR

35019-1183

1

$94.14

In stock

35022

FENDER-COMP-REAR,FR

35022-1223

1

$168.41

In stock

35022A

1

$168.41

In stock

59437

STABILIZER,C.P.RED

59437-1056-A5

1

$113.54

In stock

92002

BOLT,6X16

92002-1219

1

$3.57

In stock

92002A

BOLT,6X55

92002-1707

1
Out of stock

92002B

BOLT,6X40

92002-1711

1
Out of stock

92002C

BOLT,SOCKET,8X18

92002-1835

1
Out of stock

92002D

BOLT,6X16

92002-1852

1
Out of stock

92015

NUT,6MM

92015-1602

1

$5.84

In stock

92039

RIVET

92039-1106

1

$3.85

In stock

92039A

RIVET

92039-1147

1

$4.92

In stock

92066

PLUG

92066-1216

1

$3.69

In stock

92071

GROMMET,SENSOR LEAD

92071-1058

1

$5.02

In stock
