1988 Kawasaki Concours Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 1988 Kawasaki Concours, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

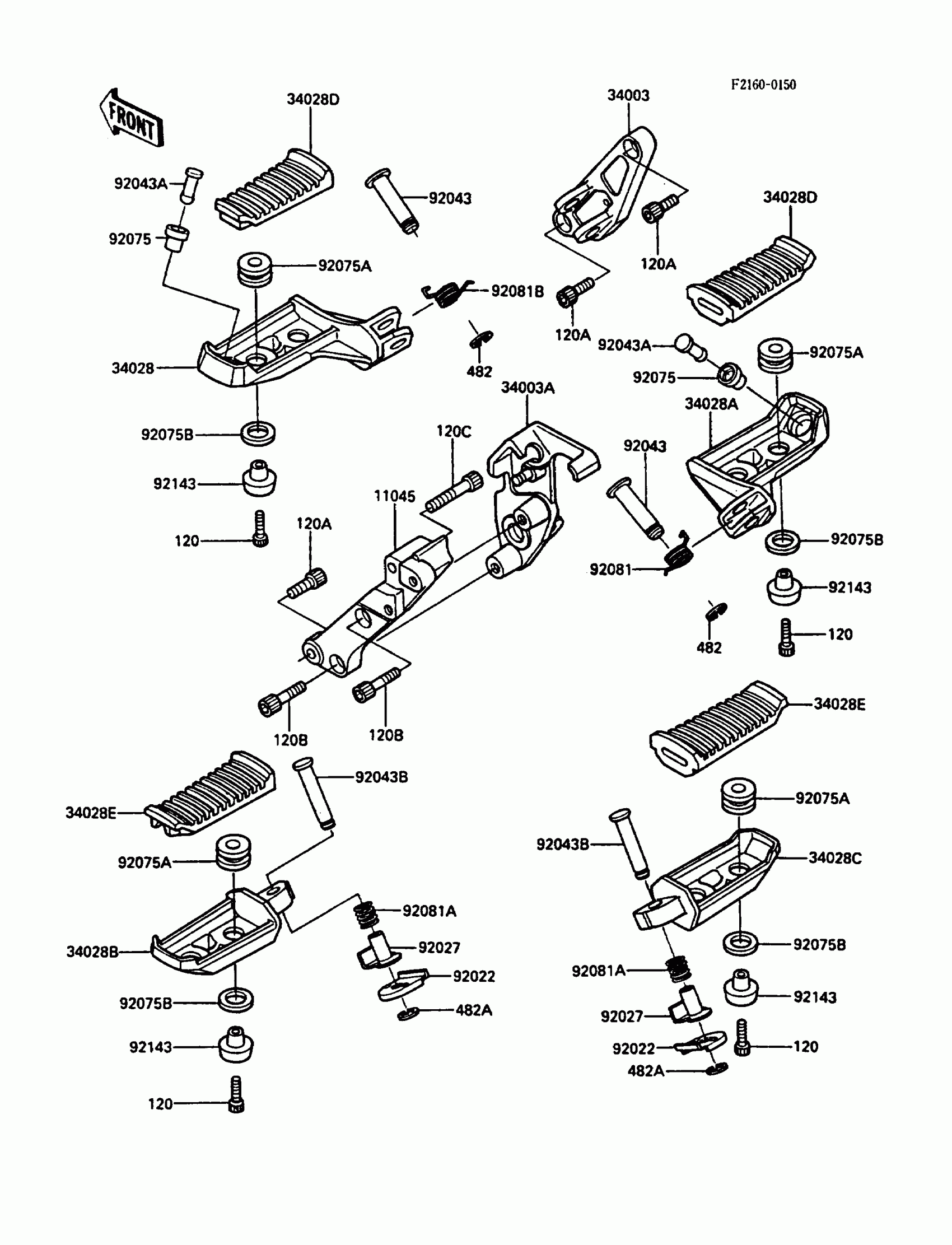

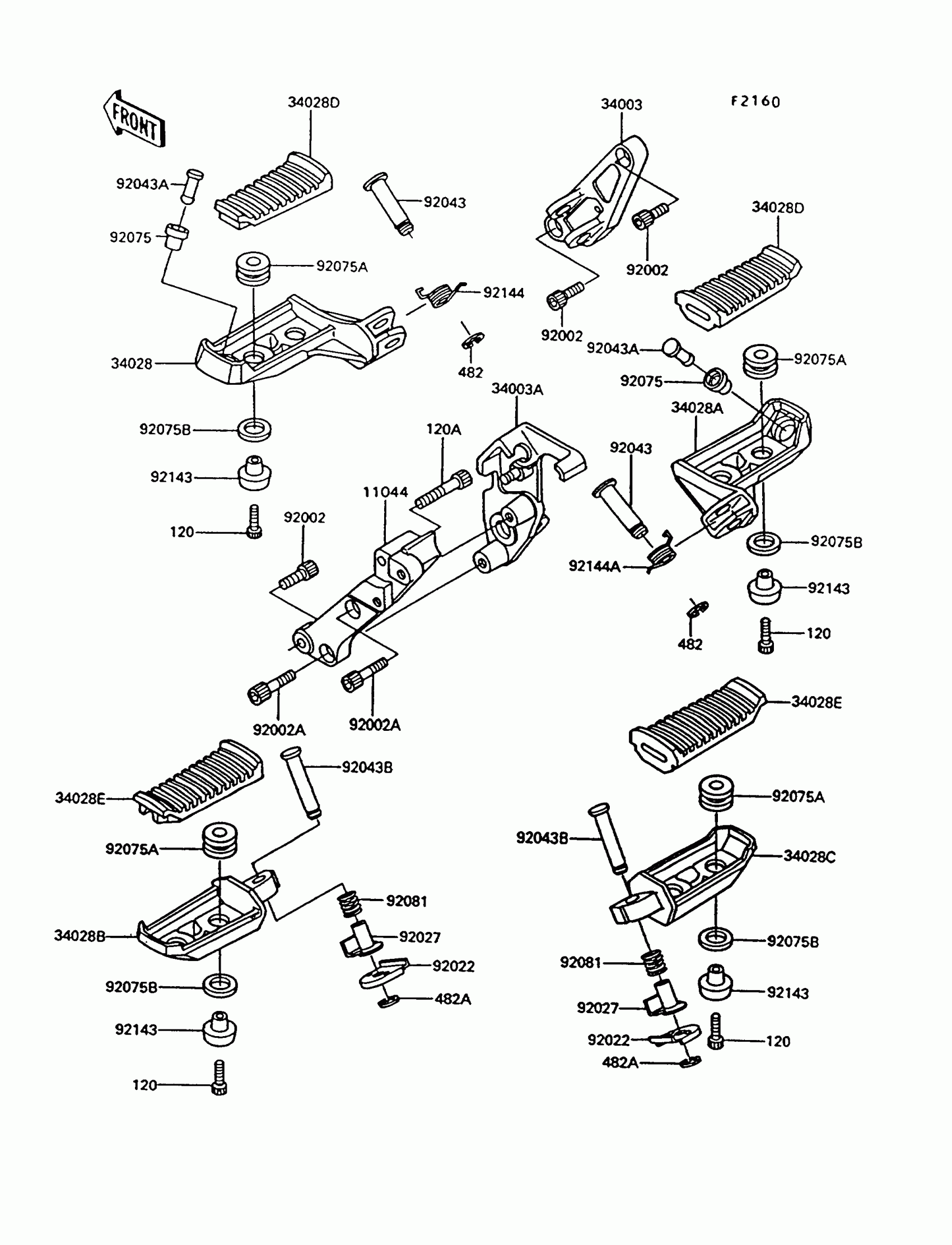

1988 Kawasaki Concours Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11045

1

$81.69

In stock

34003

HOLDER-STEP,FR,LH

34003-1259

1

$97.98

In stock

34003A

HOLDER-STEP,FR,RH

34003-1260

1

$97.98

In stock

34028

STEP,FR,LH

34028-1198

1

$82.57

In stock

34028A

STEP,FR,RH

34028-1199

1

$75.72

In stock

34028B

STEP,RR,LH

34028-1200

1

$88.62

In stock

34028C

STEP,RR,RH

34028-1201

1

$88.62

In stock

34028D

STEP,FR,RUBBER

34028-1206

1

$23.19

In stock

34028E

STEP,RR,RUBBER

34028-1207

1

$21.98

In stock

92022

WASHER,STEP,RR

92022-1507

1

$4.61

In stock

92027

COLLAR,STEP

92027-1732

1

$10.73

In stock

92043

PIN,12X42.5

92043-1145

1

$9.27

In stock

92043A

PIN,BANK SENSOR

92043-1219

1

$9.43

In stock

92043B

PIN,6X38.5

92043-1238

1

$4.15

In stock

92075

DAMPER,BANK SENSOR

92075-1597

1

$5.37

In stock

92075A

1

$3.80

In stock

92075B

DAMPER,FEMALE

92075-175

1

$3.49

In stock

92081

1

$5.15

In stock

92081A

SPRING,STEP,RR

92081-1612

1

$3.81

In stock

92081B

1

$5.15

In stock

92143

COLLAR,STEP

92143-1005

1

$8.51

In stock

120

BOLT-SOCKET,5X20

120P0520

1
Out of stock

120A

BOLT-SOCKET,8X20

120P0820

1
Out of stock

120B

BOLT-SOCKET,8X25

120P0825

1
Out of stock

120C

BOLT-SOCKET,8X40

120P0840

1
Out of stock

482

1

$0.98

In stock

482A

1

$1.20

In stock
