1988 Kawasaki Concours Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 1988 Kawasaki Concours, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

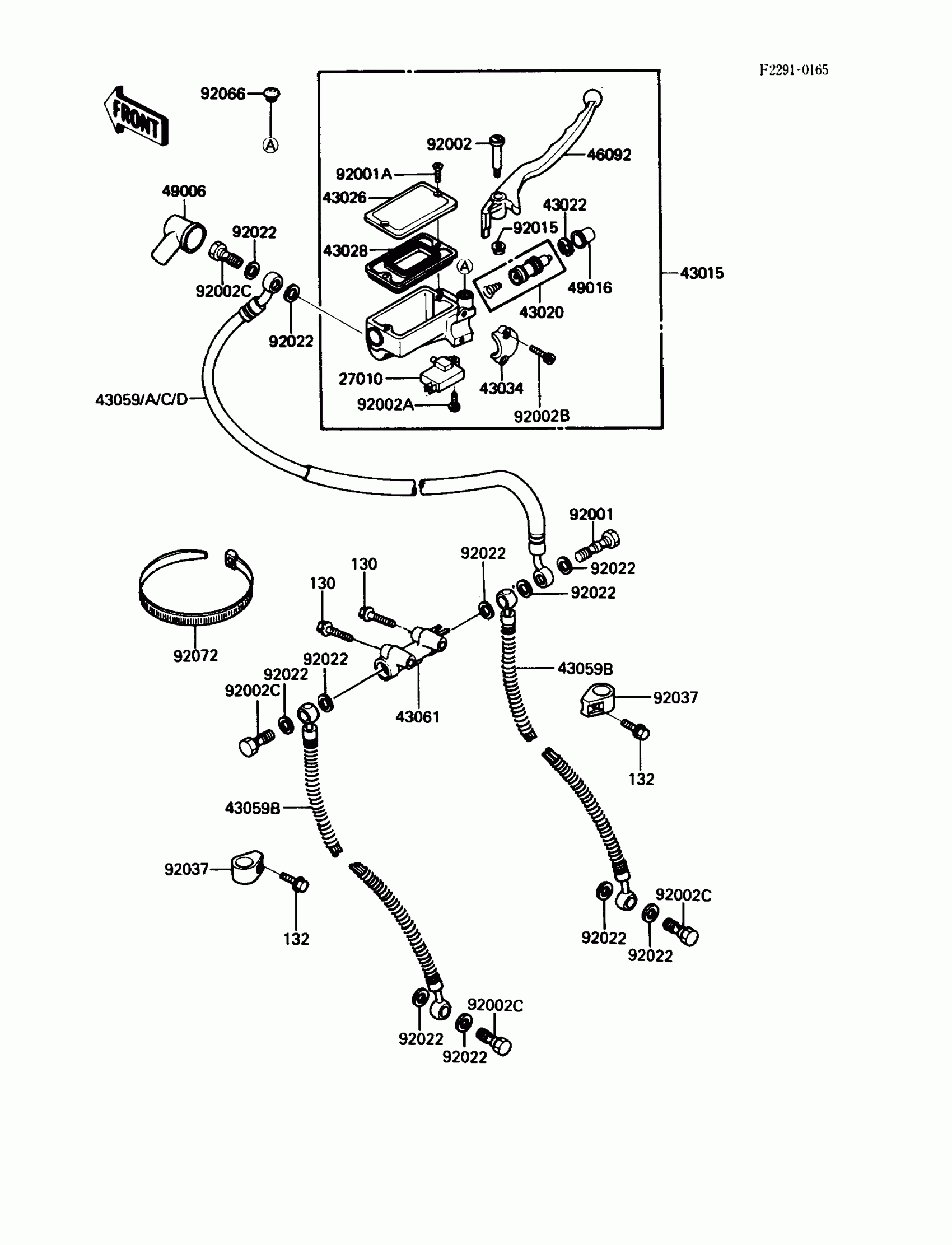

1988 Kawasaki Concours Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

27010

SWITCH,BRAKE

27010-1170

1

$33.39

In stock

43015

1

$391.50

In stock

43020

1

$59.90

In stock

43022

1

$3.69

In stock

43026

CAP-BRAKE,FR

43026-1052

1
Out of stock

43028

1

$21.24

In stock

43034

1

$36.55

In stock

43059A

1

$75.49

In stock

43059B

HOSE-BRAKE,FR

43059-1342

1

$82.60

In stock

43059C

1

$78.91

In stock

43061

JOINT-BRAKE

43061-1004

1
Out of stock

46092

1

$24.29

In stock

49006

BOOT,DUST

49006-1040

1

$9.11

In stock

49016

1

$6.90

In stock

92001

BOLT,BANJO,10X37

92001-1203

1

$9.38

In stock

92001A

SCREW,5MM,BLACK

92001-1727

1

$3.27

In stock

92002

1

$9.29

In stock

92002A

BOLT,SCREW,4X12

92002-1323

1

$3.12

In stock

92002B

1

$7.54

In stock

92002C

BOLT,OIL,L=23

92002-1888

1
Out of stock

92015

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92022

WASHER,10.5X15X1.5

43067-001

1

$1.81

In stock

92037

CLAMP,HOSE

92037-1751

1

$7.49

In stock

92066

1

$3.69

In stock

92072

BAND,L=365

92072-1197

1

$7.71

In stock

130

BOLT-FLANGED,6X60

130G0660

1
Out of stock

132

BOLT-FLANGED-SMALL

132W0620

1
Out of stock
