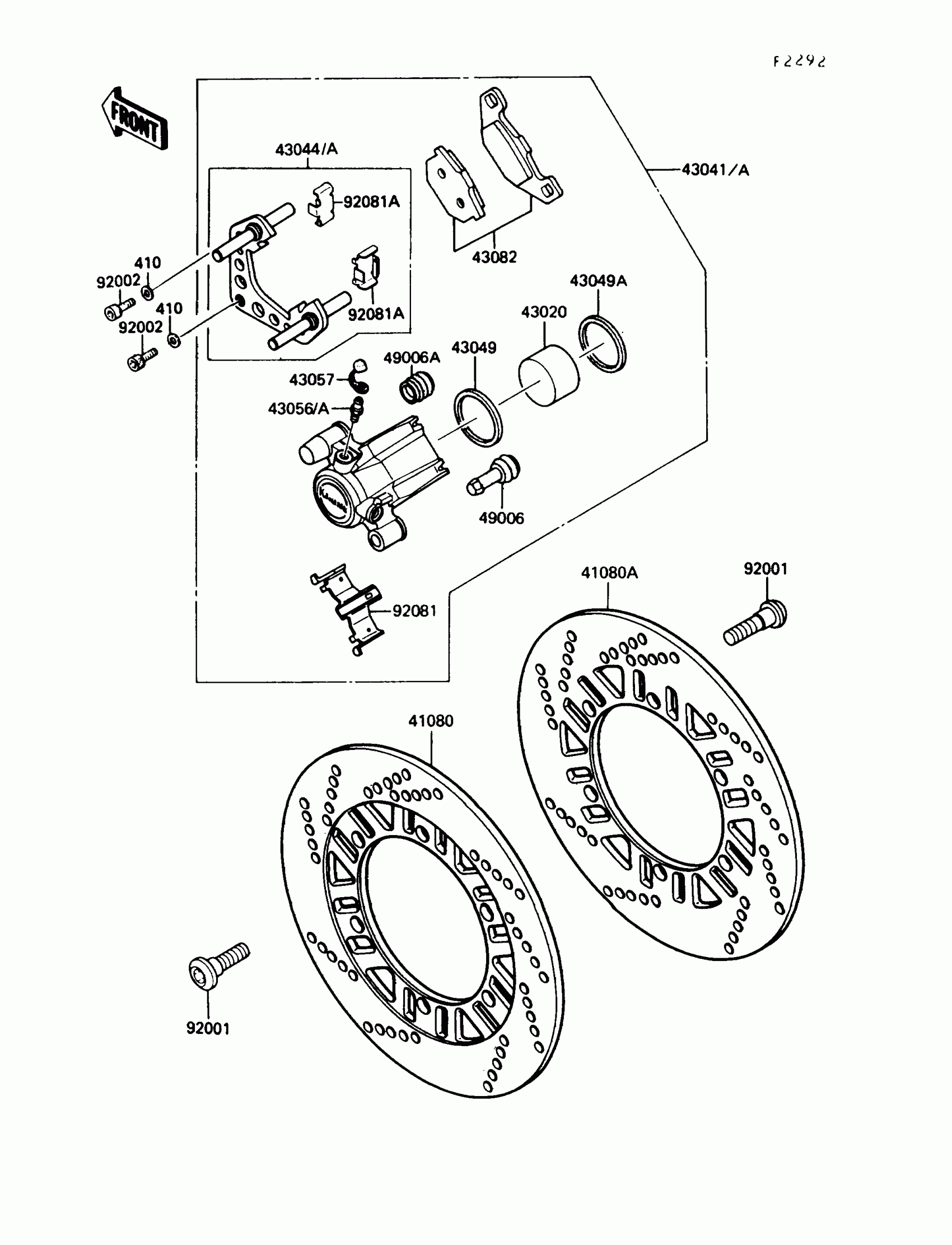

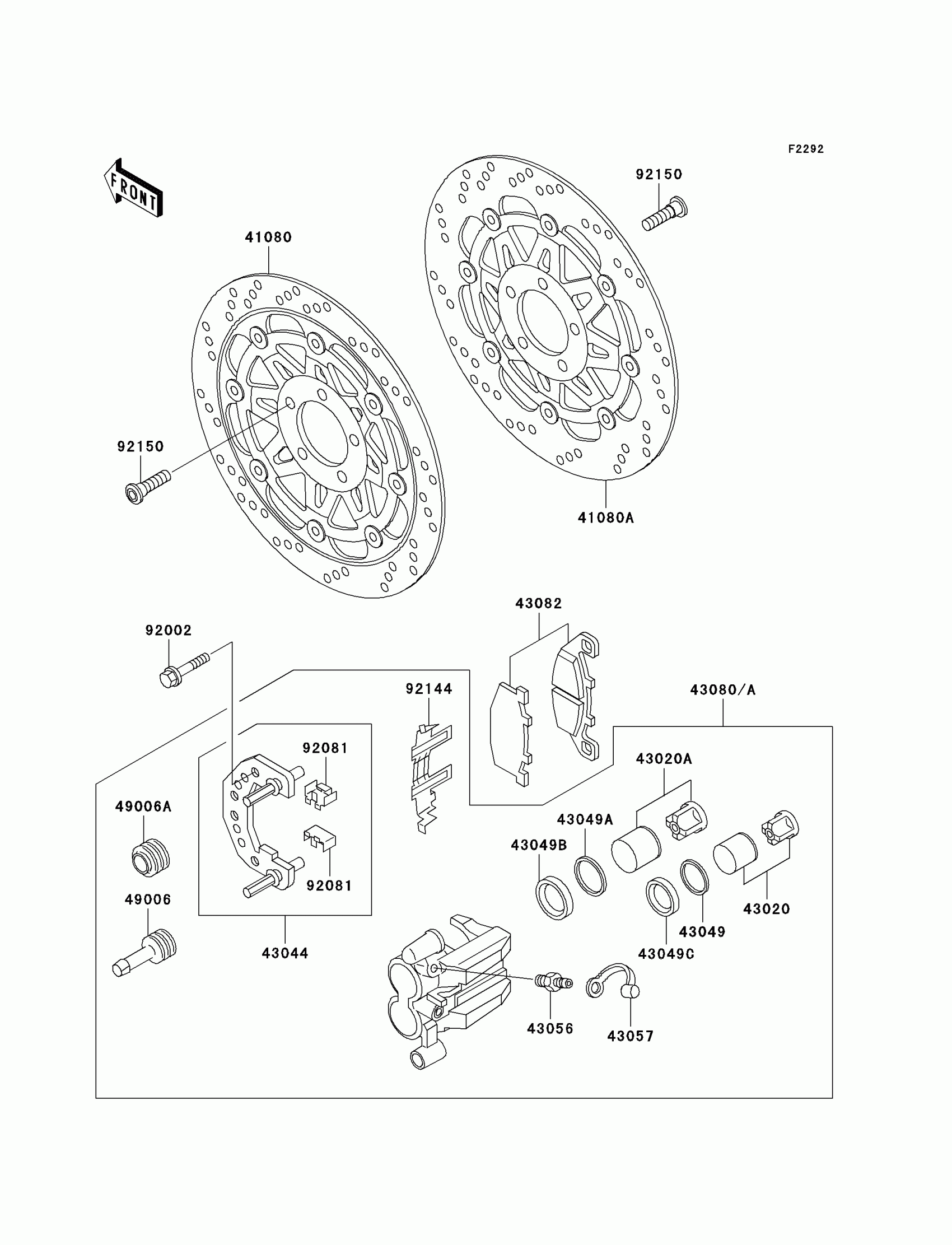

Kawasaki Concours Front Brake Diagram

#

Description
Price

41080B

DISC,FR,LH

41080-1205

$461.35

41080C

DISC,FR,RH

41080-1206

Unavailable

43020

PISTON-COMP-BRAKE

43020-1051

$93.03

43041

CALIPER-ASSY,FR,LH

43041-1194

$472.44

43041A

CALIPER-ASSY,FR,RH

43041-1195

$405.14

43044

HOLDER-COMP-CALIPER,FR,LH

43044-1035

$172.92

43044A

HOLDER-COMP-CALIPER,FR,RH

43044-1036

$169.84

43049

PACKING,PISTON SEAL

43049-002

$10.56

43049A

PACKING,PISTON

43049-1028

$9.61

43056

BREATHER

43056-003

$19.94

43057

CAP-BREATHER

43057-003

$1.74

43082

PAD-ASSY-BRAKE

43082-1061

$53.01

49006

BOOT,CALIPER

49006-1094

$9.30

49006A

BOOT,CALIPER

49006-1095

$5.55

92001

BOLT,DISC PLATE,8X30

92001-1951

$3.57

92002

BOLT,SOCKET,10X33

92001-1901

$10.24

92081

SPRING,PAD

92081-1525

$14.69

92081A

SPRING,PAD STOPPER

92081-1661

$9.22

410

WASHER PLAIN 10MM

410B1000

Unavailable
