1988 Kawasaki Concours Brake Pedal/torque Link Diagram

← All diagrams

Find the part on the Brake Pedal/torque Link diagram for your 1988 Kawasaki Concours, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

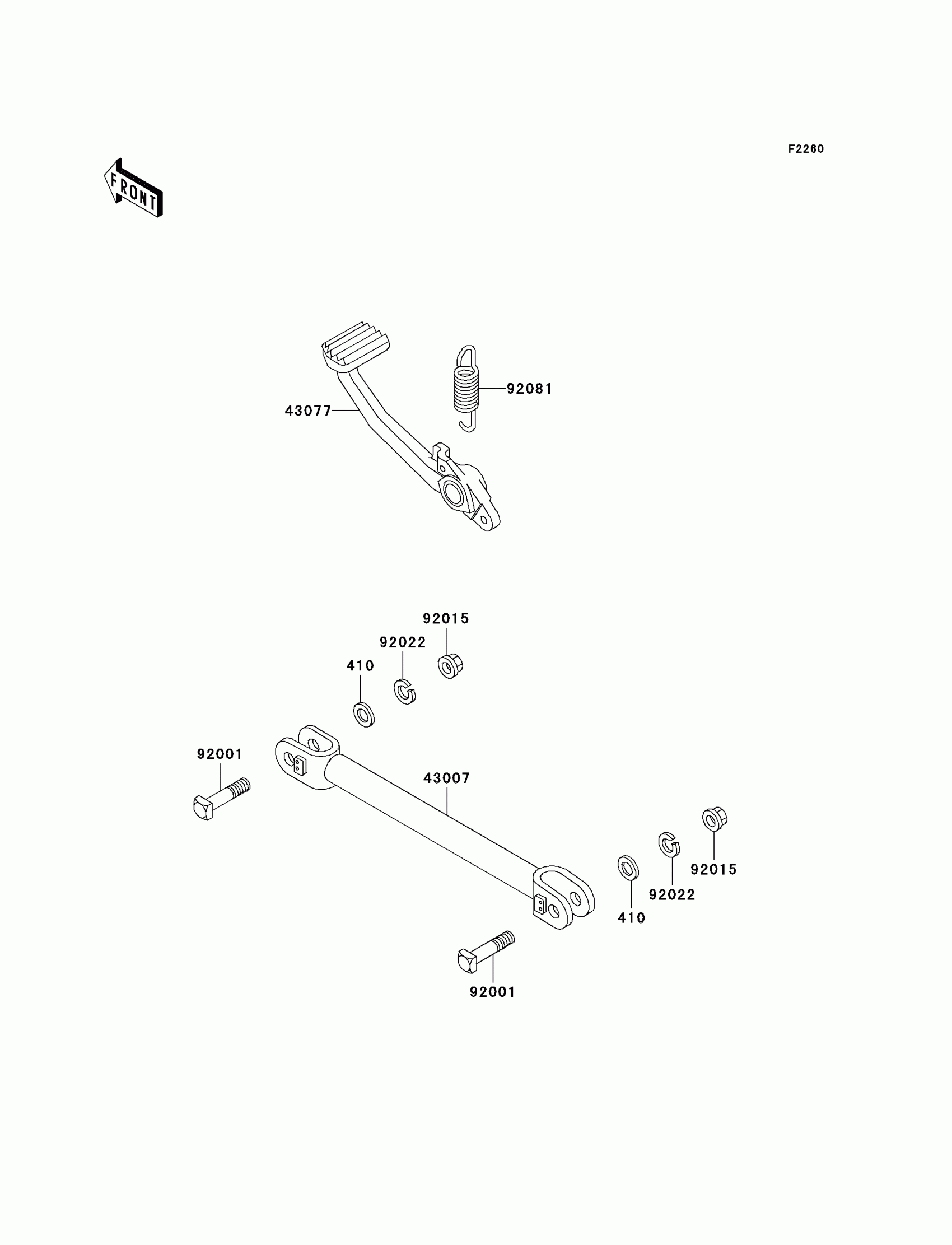

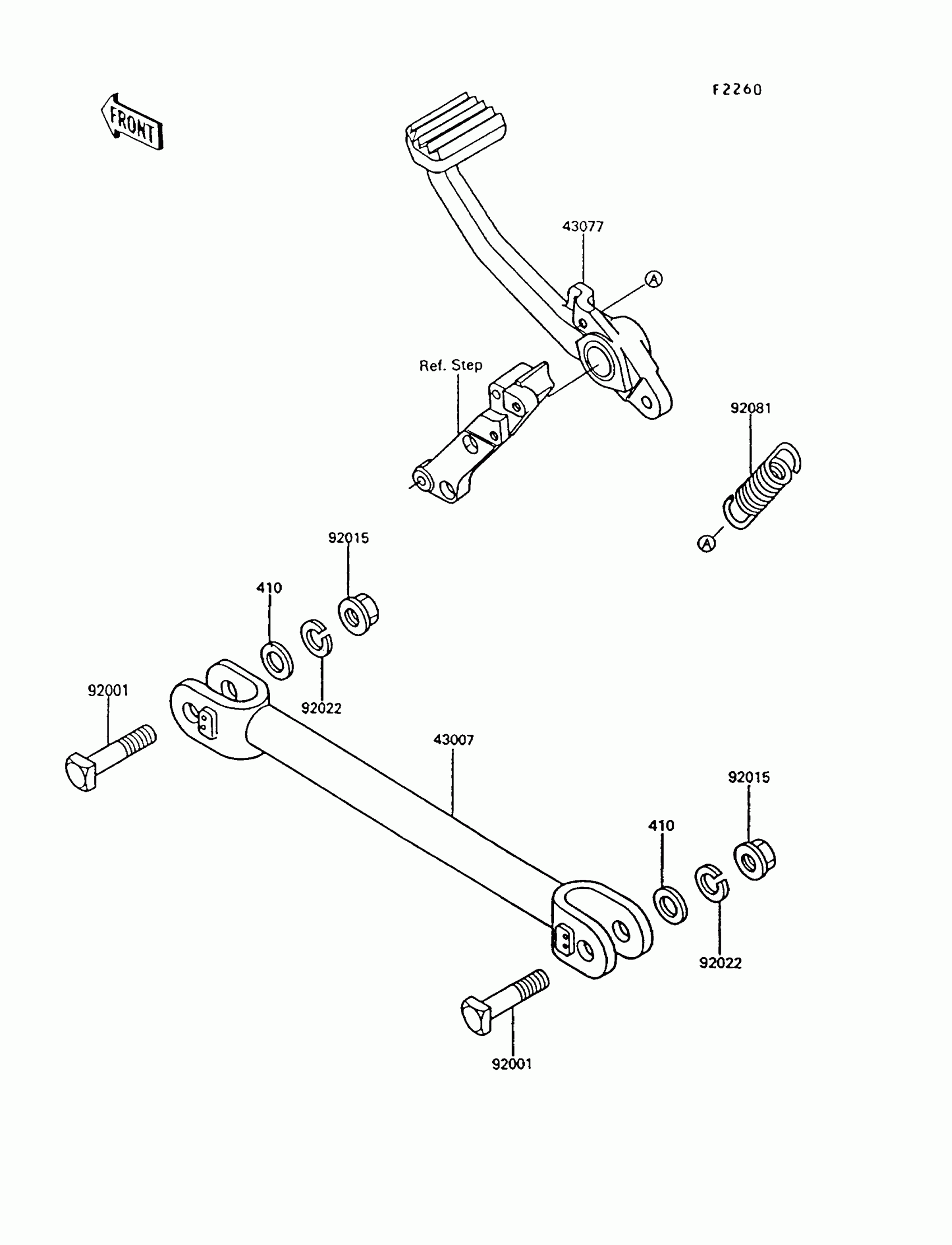

1988 Kawasaki Concours Brake Pedal/torque Link Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

43007

ROD-TORQUE

43007-1130

1

$101.05

In stock

43077

1

$205.13

In stock

92001

BOLT,10X45

92001-1208

1

$7.49

In stock

92015

NUT,10MM

92015-1429

1

$5.45

In stock

92022

WASHER,SPRING,10MM

92022-1540

1

$3.27

In stock

92081

SPRING,BRAKE PEDAL

92081-1845

1
Out of stock

410

WASHER PLAIN 10MM

410B1000

1
Out of stock
