1991 Kawasaki Concours Brake Pedal Diagram

← All diagrams

Find the part on the Brake Pedal diagram for your 1991 Kawasaki Concours, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

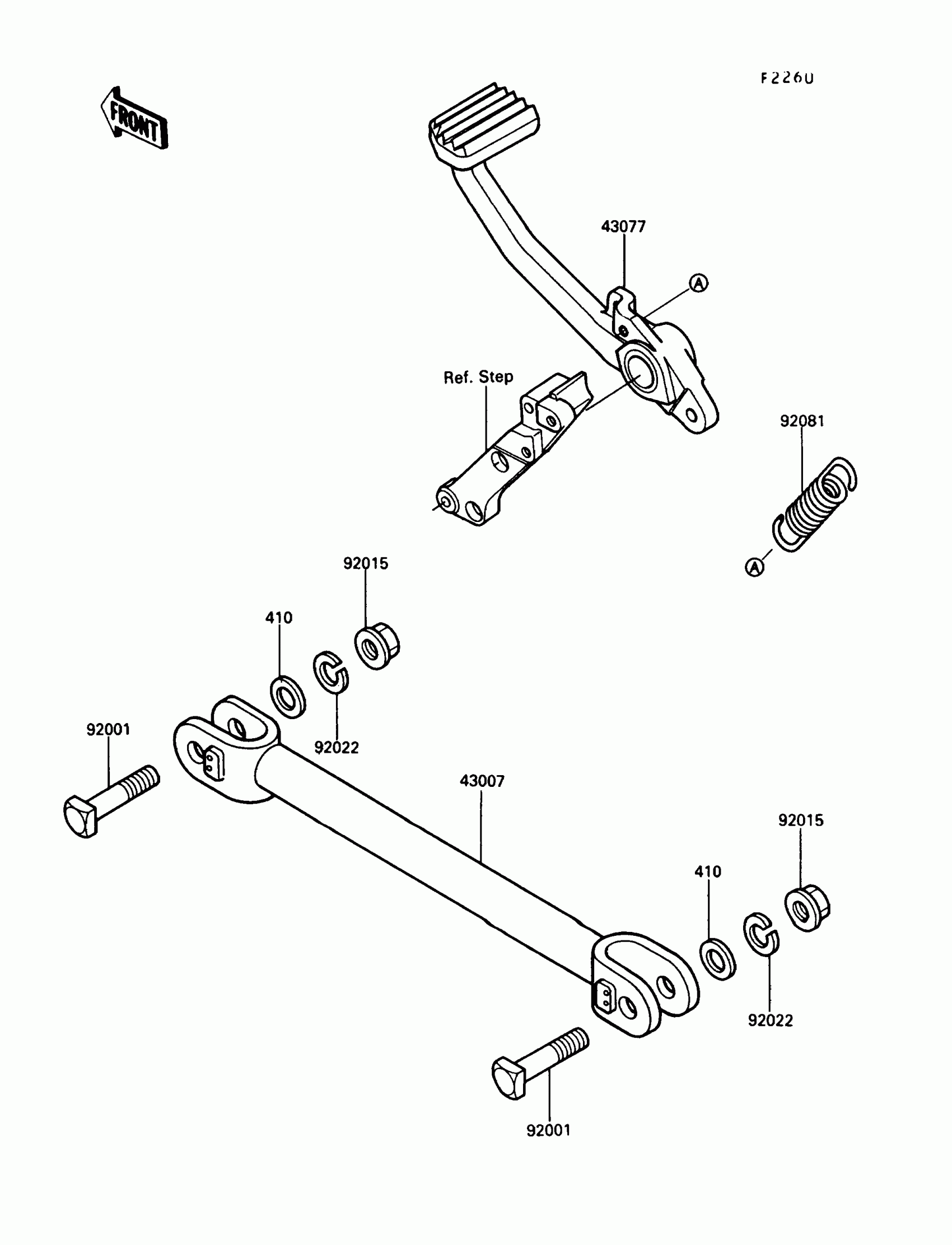

1991 Kawasaki Concours Brake Pedal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

43007

ROD-TORQUE

43007-1130

1
Out of stock

43077

LEVER-ASSY-BRAKE,PEDAL

43077-1062

1
Out of stock

92001

BOLT,10X45

92001-1208

1
Out of stock

92015

NUT,10MM

92015-1429

1
Out of stock

92022

WASHER,SPRING,10MM

92022-1540

1
Out of stock

92081

SPRING,BRAKE PEDAL

92081-1845

1
Out of stock

410

WASHER PLAIN 10MM

410B1000

1
Out of stock
