2010 Kawasaki Concours™ 14 Rear Master Cylinder Diagram

← All diagrams

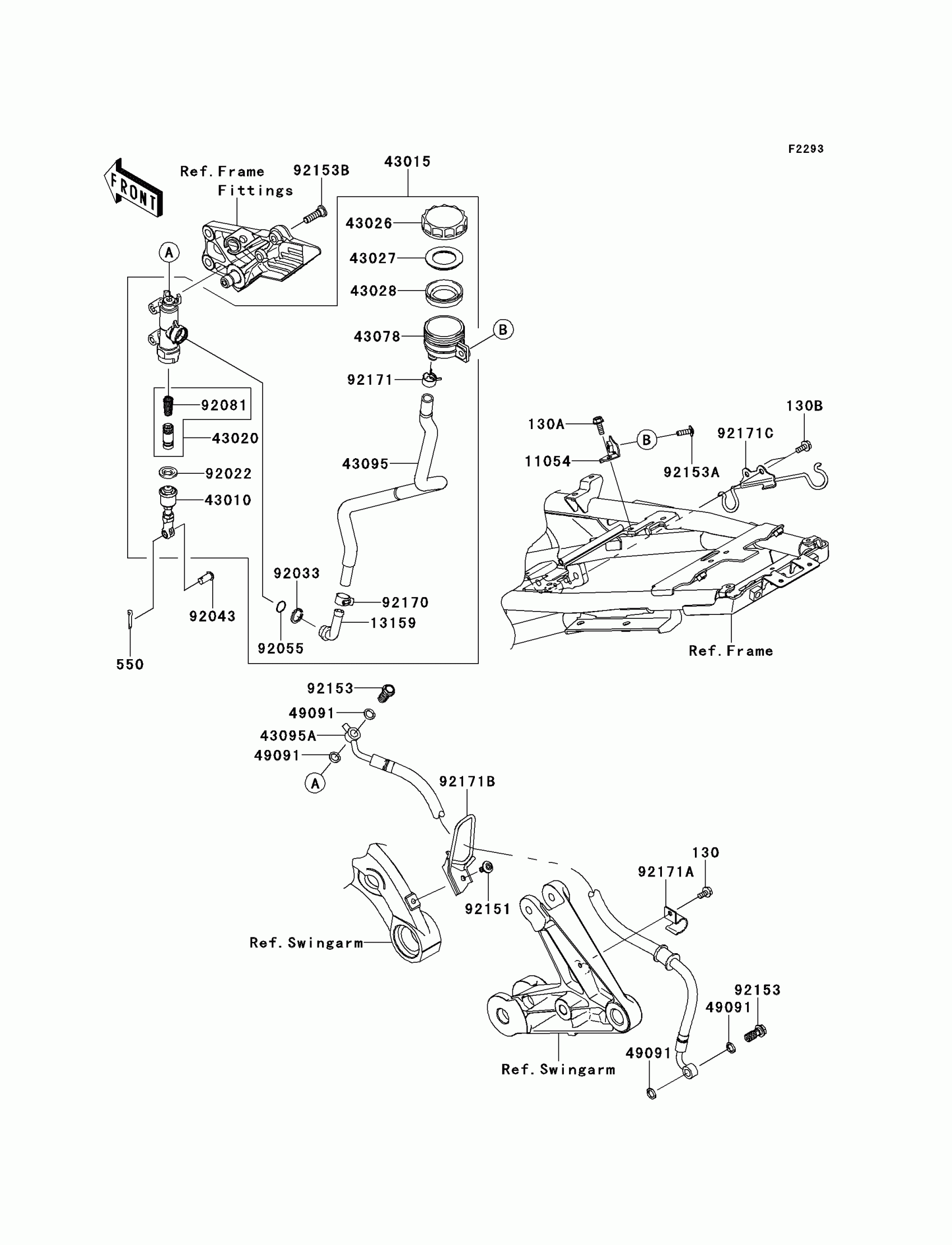

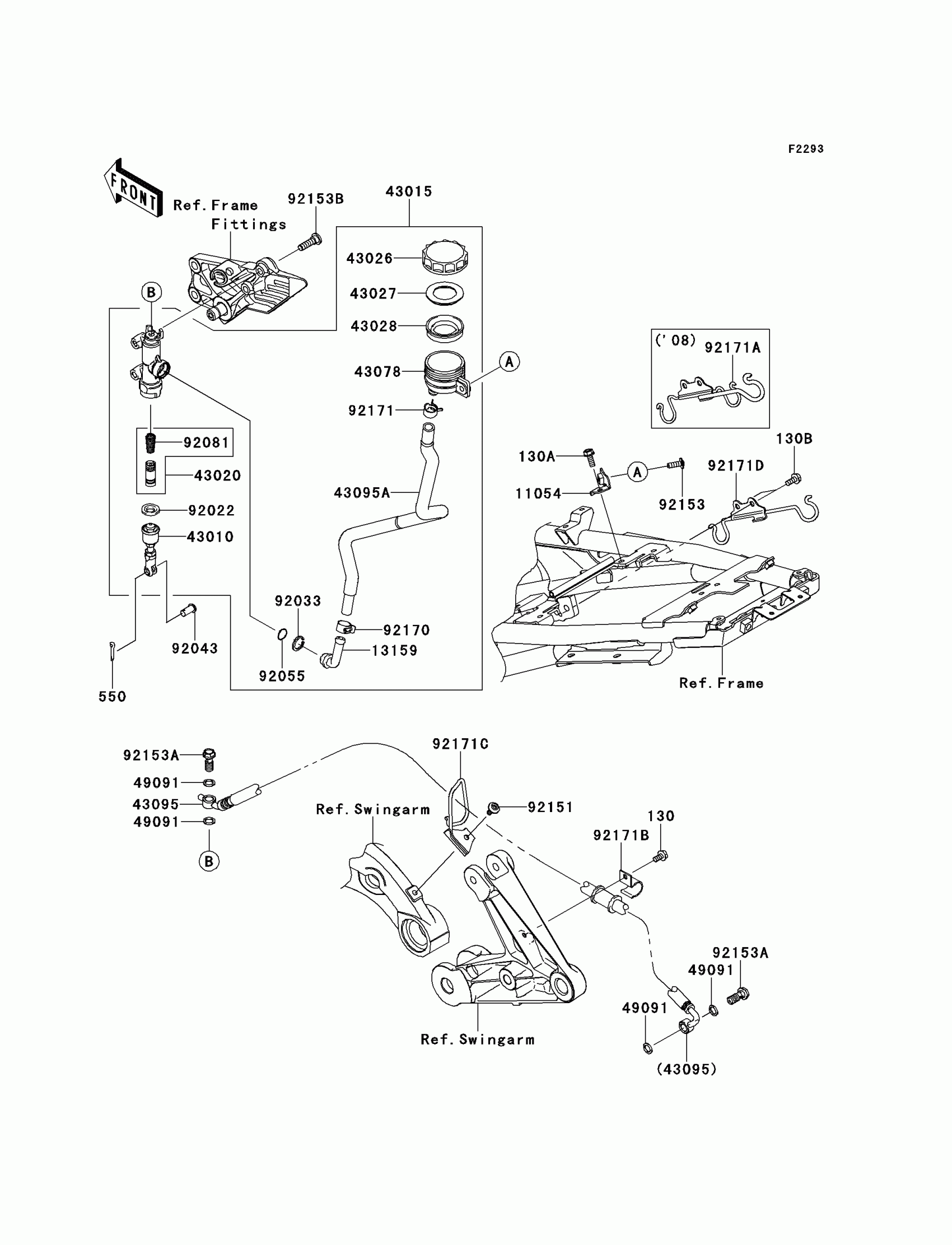

Find the part on the Rear Master Cylinder diagram for your 2010 Kawasaki Concours™ 14, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Kawasaki Concours™ 14 Rear Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

130A

BOLT-FLANGED,6X16

130BA0616

1

$1.12

In stock

130B

BOLT-FLANGED,6X14

130BB0614

1

$1.84

In stock

550

PIN-COTTER,2.0X15

550AA2015

1
Out of stock

11054

1

$8.08

In stock

13159

CONNECTOR

13159-1056

1
Out of stock

43010

ROD-ASSY-BRAKE

43010-0013

1
Out of stock

43015

CYLINDER-ASSY-MASTER

43015-0585

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1057

1
Out of stock

43026

CAP-BRAKE

43026-1051

1
Out of stock

43027

PLATE-DIAPHRAGM

43027-1051

1
Out of stock

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

1
Out of stock

43078

RESERVOIR,RR MASTER CYLINDER

43078-1082

1
Out of stock

43095

HOSE-BRAKE,RR,MASTER CYLINDER

43095-0334

1
Out of stock

43095A

HOSE-BRAKE,RR

43095-0502

1
Out of stock

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

1
Out of stock

92022

WASHER,CIRCRIP

92022-1601

1
Out of stock

92033

RING-SNAP,20.5MM

92033-1186

1
Out of stock

92043

PIN,8X17

92043-0104

1
Out of stock

92055

RING-O,MASTER CYLINDER

92055-1251

1
Out of stock

92081

SPRING,MASTER CYLINDER

92081-1737

1
Out of stock

92151

BOLT,SOCKET,6X14

92151-1654

1
Out of stock

92153

BOLT,OIL,L=23

92153-0627

1
Out of stock

92153A

BOLT,6X18

92153-0756

1
Out of stock

92153B

BOLT,SOCKET,8X30

92153-1624

1
Out of stock

92170

CLAMP,HOSE

92170-1091

1

$3.97

In stock

92171

CLAMP,HOSE

92171-0463

1

$5.56

In stock

92171A

CLAMP,BRAKE HOSE

92171-0880

1
Out of stock

92171B

CLAMP,BRAKE HOSE

92171-1713

1
Out of stock

92171C

CLAMP,RESERVE TANK HOSE

92171-1935

1
Out of stock
