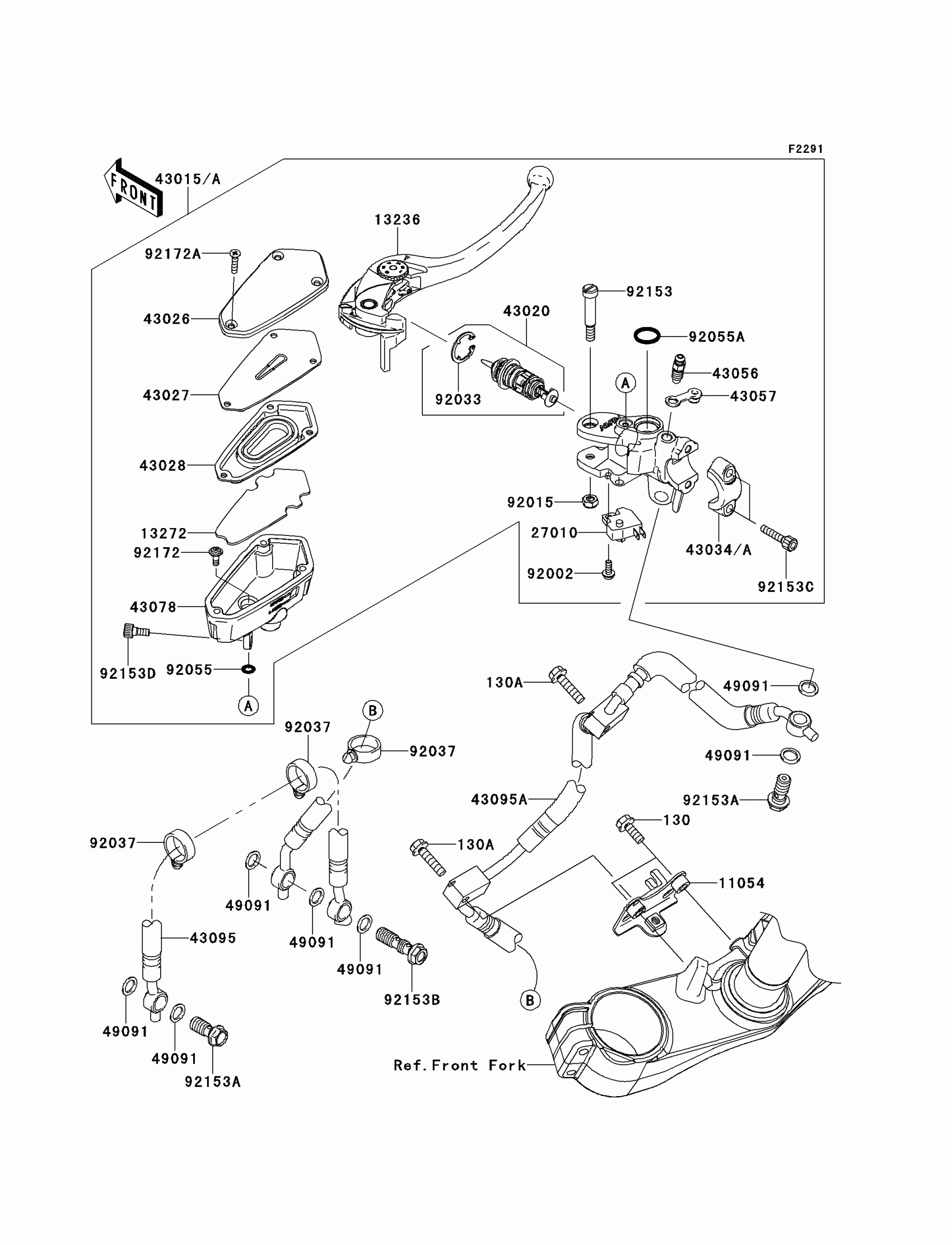

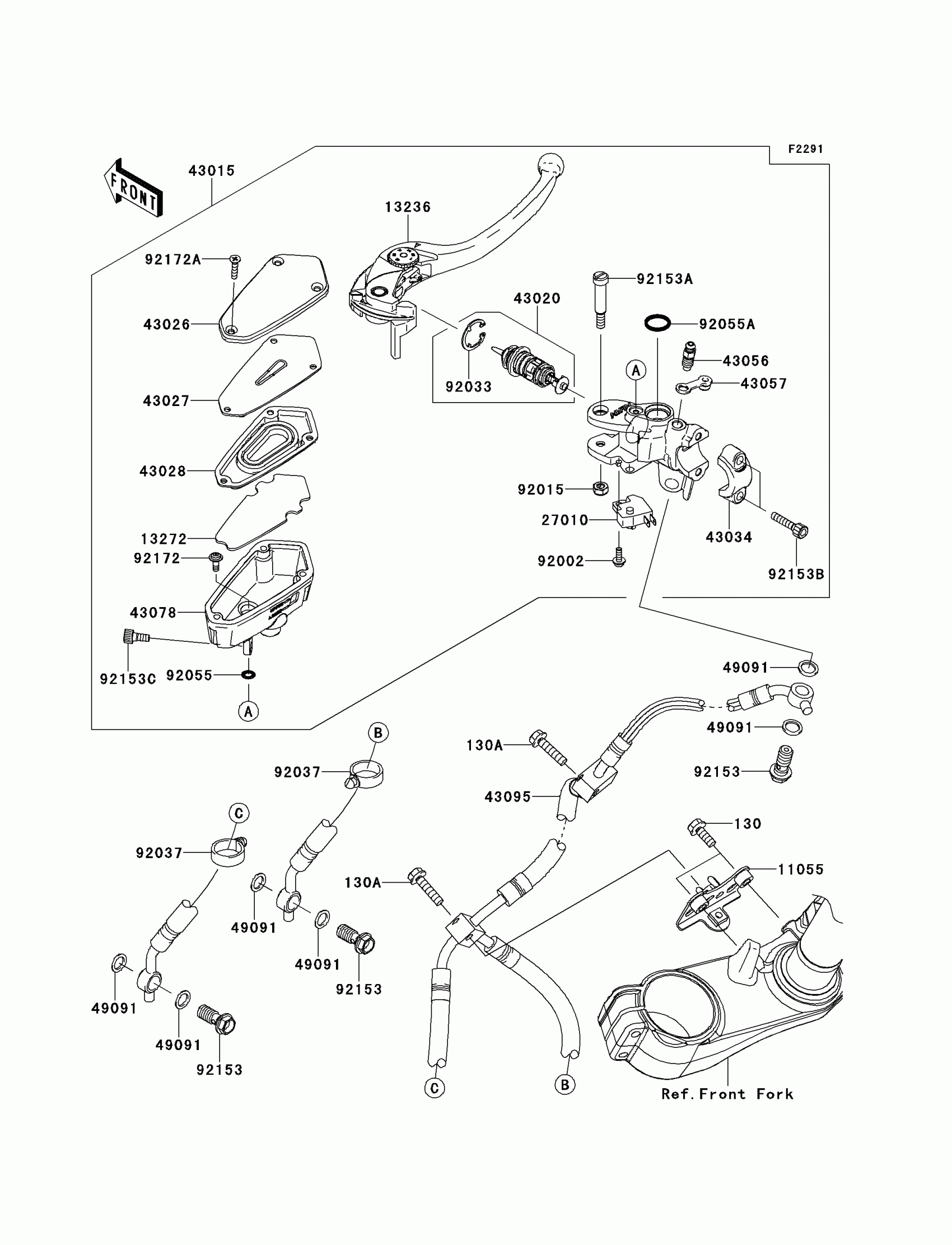

Kawasaki Concours™ 14 Front Master Cylinder Diagram

#

Description
Price

130

BOLT-FLANGED,6X18

130BA0618

$1.17

130A

BOLT-FLANGED,6X25

130BA0625

$0.97

11054

BRACKET

11054-0828

$23.37

13236

LEVER-COMP,FRONT BRAKE

13236-0103

$63.89

13272

PLATE

13272-0220

$10.58

27010

SWITCH,BRAKE

27010-0025

$32.62

43015

CYLINDER-ASSY-MASTER,FR

43015-0086

$466.60

43015A

CYLINDER-ASSY-MASTER,FR

43015-0148

$438.17

43020

PISTON-COMP-BRAKE

43020-0010

$59.13

43026

CAP-BRAKE

43026-0011

$75.97

43027

PLATE-DIAPHRAGM

43027-0003

$8.15

43028

DIAPHRAGM

43028-0008

$13.87

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-0056

$21.59

43034A

HOLDER-BRAKE,MASTER CYLINDER

43034-1016

$14.67

43056

BREATHER-BRAKE

43056-1056

$10.86

43057

CAP-BREATHER

43057-1001

$3.73

43078

RESERVOIR

43078-0048

$91.28

43095

HOSE-BRAKE,FR

43095-0212

$55.59

43095A

HOSE-BRAKE,FR

43095-0316

$156.31

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

92002

BOLT,SCREW,4X12

92002-1323

$2.99

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.18

92033

RING-SNAP

92033-0034

$4.07

92037

CLAMP,HOSE

92037-1827

$5.69

92055

RING-O

92055-0137

$3.51

92055A

RING-O,MASTER CYLINDER

92055-1251

Unavailable

92153

BOLT,LEVER

92153-0868

$5.98

92153A

BOLT,OIL,L=23

92153-1419

$2.98

92153B

BOLT,OIL,L=37

92153-1438

$3.74

92153C

BOLT,SOCKET,6X22

92153-1518

$2.98

92153D

BOLT,SOCKET,6X12

92153-1853

$7.61

92172

SCREW

92172-0319

$3.51

92172A

SCREW,4X20

92172-0320

$2.98
