2010 Kawasaki Concours™ 14 Brake Pedal/torque Link Diagram

← All diagrams

Find the part on the Brake Pedal/torque Link diagram for your 2010 Kawasaki Concours™ 14, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

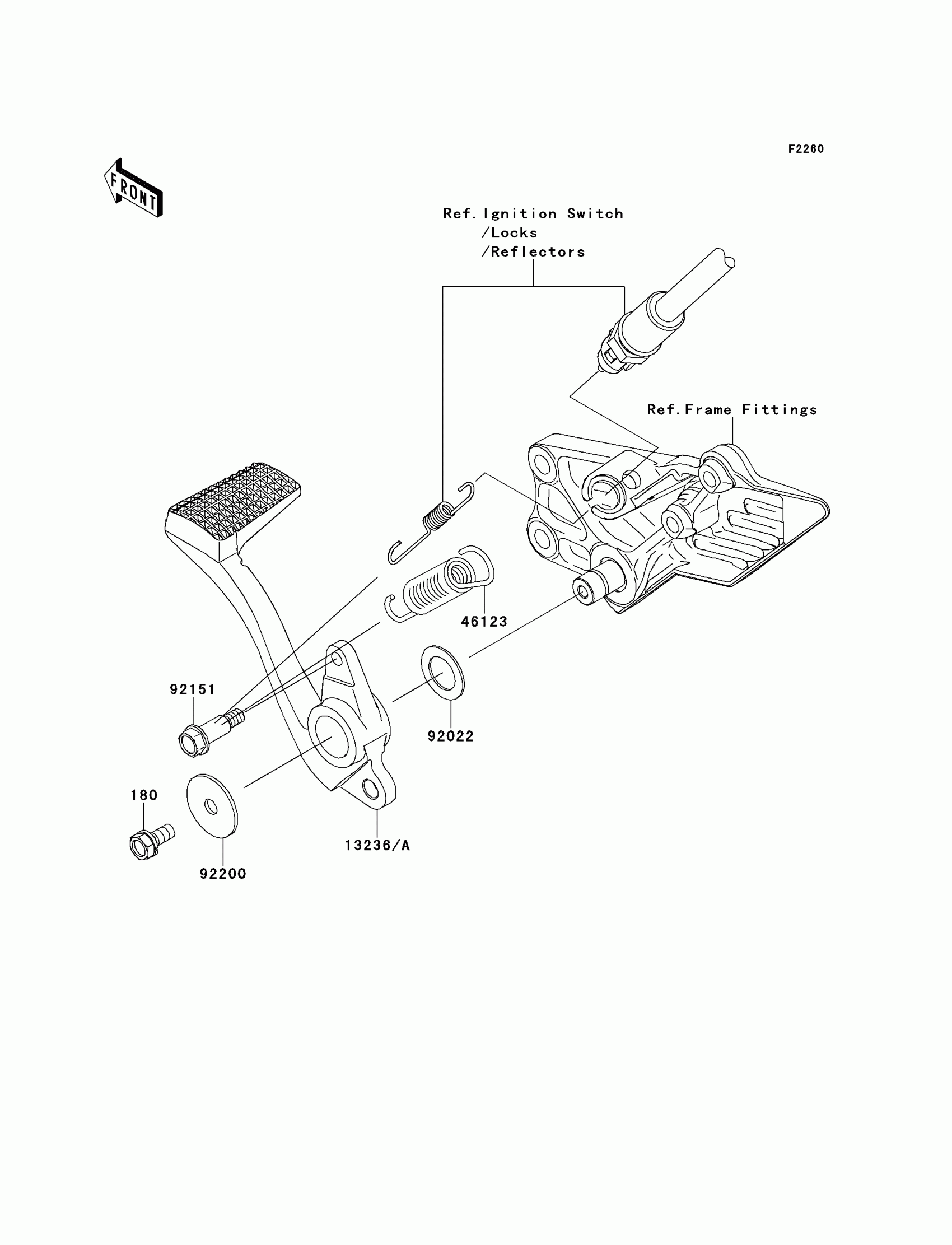

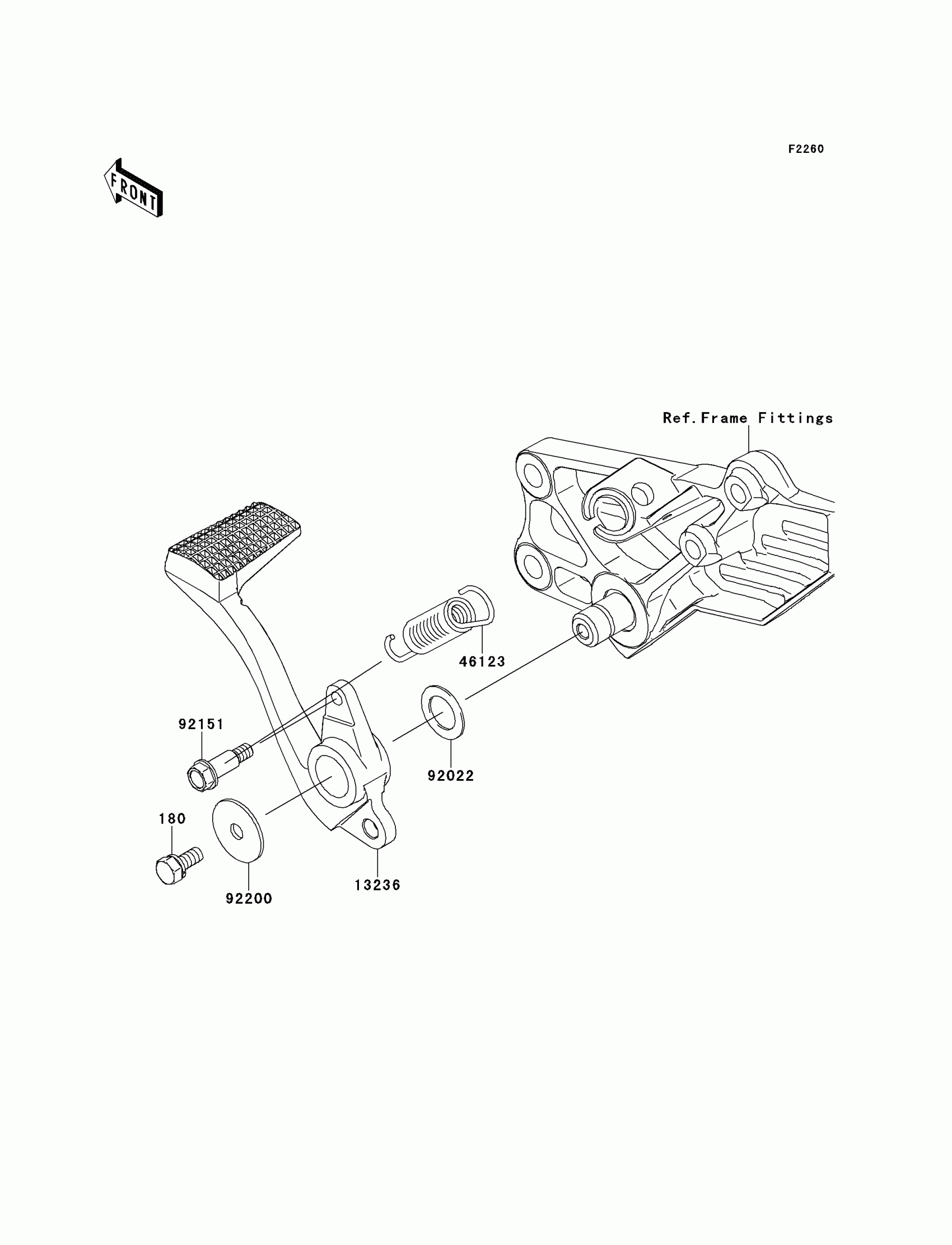

2010 Kawasaki Concours™ 14 Brake Pedal/torque Link Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

180

BOLT-UPSET-WS,6X14

180BA0614

1
Out of stock

13236

LEVER-COMP,BRAKE PEDAL

13236-0173

1
Out of stock

46123

SPRING-COMP,BRAKE PEDAL RETURN

46123-0006

1
Out of stock

92022

WASHER,15.3X24X1

92022-326

1
Out of stock

92151

BOLT,6MM

92151-1295

1
Out of stock

92200

WASHER,7X28X1.6

92200-0279

1
Out of stock
