2009 Kawasaki Concours™ 14 OIL Pump/oil Filter Diagram

← All diagrams

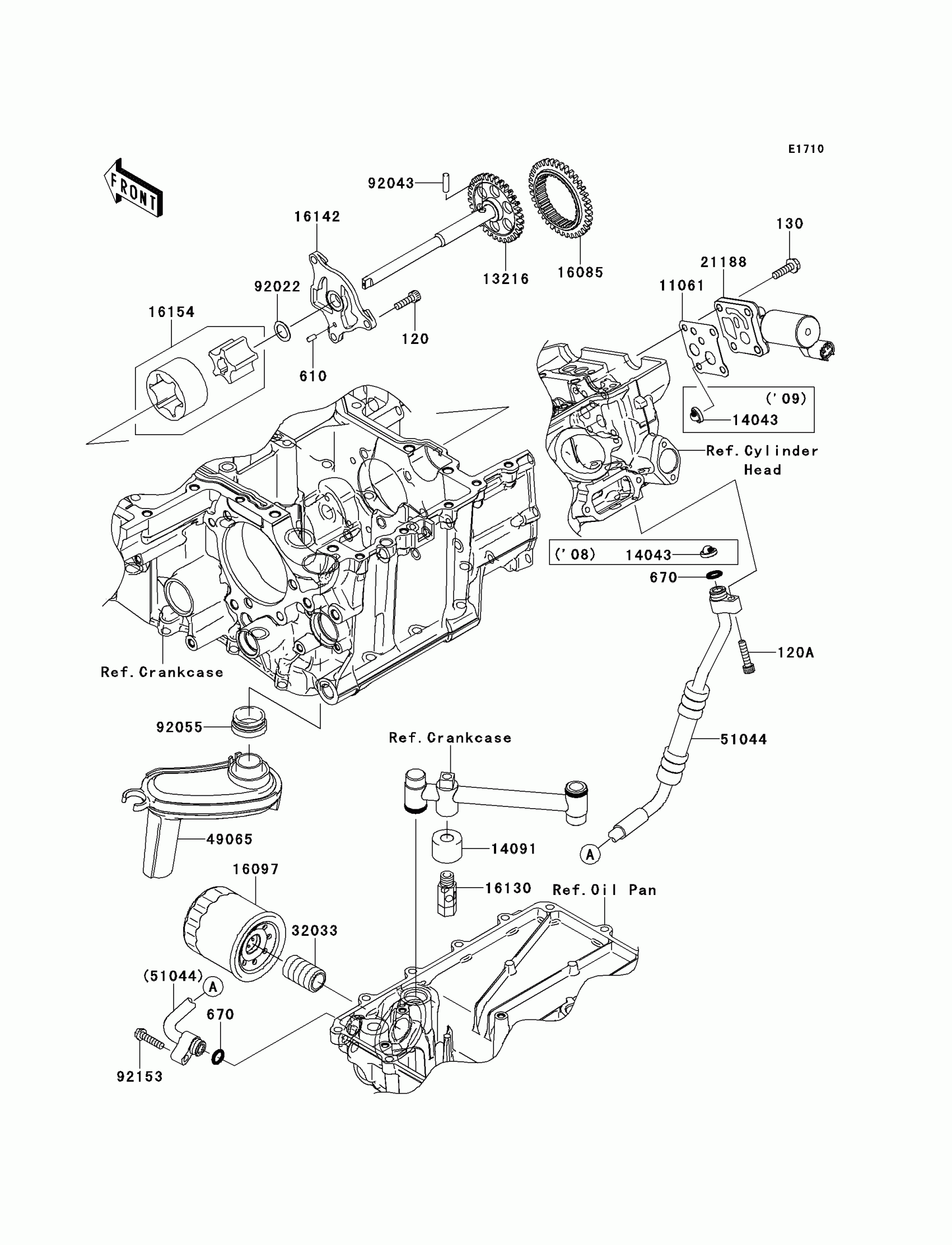

Find the part on the OIL Pump/oil Filter diagram for your 2009 Kawasaki Concours™ 14, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki Concours™ 14 OIL Pump/oil Filter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X20

120CA0620

1
Out of stock

120A

BOLT-SOCKET,6X25

120CA0625

1
Out of stock

130

BOLT-FLANGED,6X22

130BA0622

1

$1.17

In stock

610

ROLLER,4X8

610A0408

1
Out of stock

670

O RING,11MM

670D2011

1
Out of stock

11061

GASKET,SOLENOID

11061-3748

1
Out of stock

13216

GEAR-COMP,OIL PUMP

13216-0024

1
Out of stock

14043

FILTER,ELEMENT

14043-0009

1

$10.46

In stock

14091

COVER,VALVE

14091-0497

1
Out of stock

16085

GEAR

16085-0103

1
Out of stock

16097

FILTER-ASSY-OIL

16097-0004

1
Out of stock

16130

VALVE-ASSY-RELIEF

16130-1059

1
Out of stock

16142

COVER-PUMP

16142-0027

1
Out of stock

16154

ROTOR-PUMP

16154-0047

1
Out of stock

21188

SOLENOID,VVT

21188-0006

1
Out of stock

32033

PIPE,OIL FILTER

32033-1535

1
Out of stock

49065

FILTER-OIL

49065-0014

1
Out of stock

51044

TUBE-ASSY,EG OIL

51044-0049

1
Out of stock

92022

WASHER,13.2X20X0.5

92022-1224

1
Out of stock

92043

PIN,17.9X5.0

92043-1444

1
Out of stock

92055

RING-O,OIL FILTER

92055-1503

1
Out of stock

92153

BOLT,FLANGED,6X25

92153-1795

1
Out of stock
