2009 Kawasaki Concours™ 14 Cylinder Head Cover Diagram

← All diagrams

Find the part on the Cylinder Head Cover diagram for your 2009 Kawasaki Concours™ 14, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

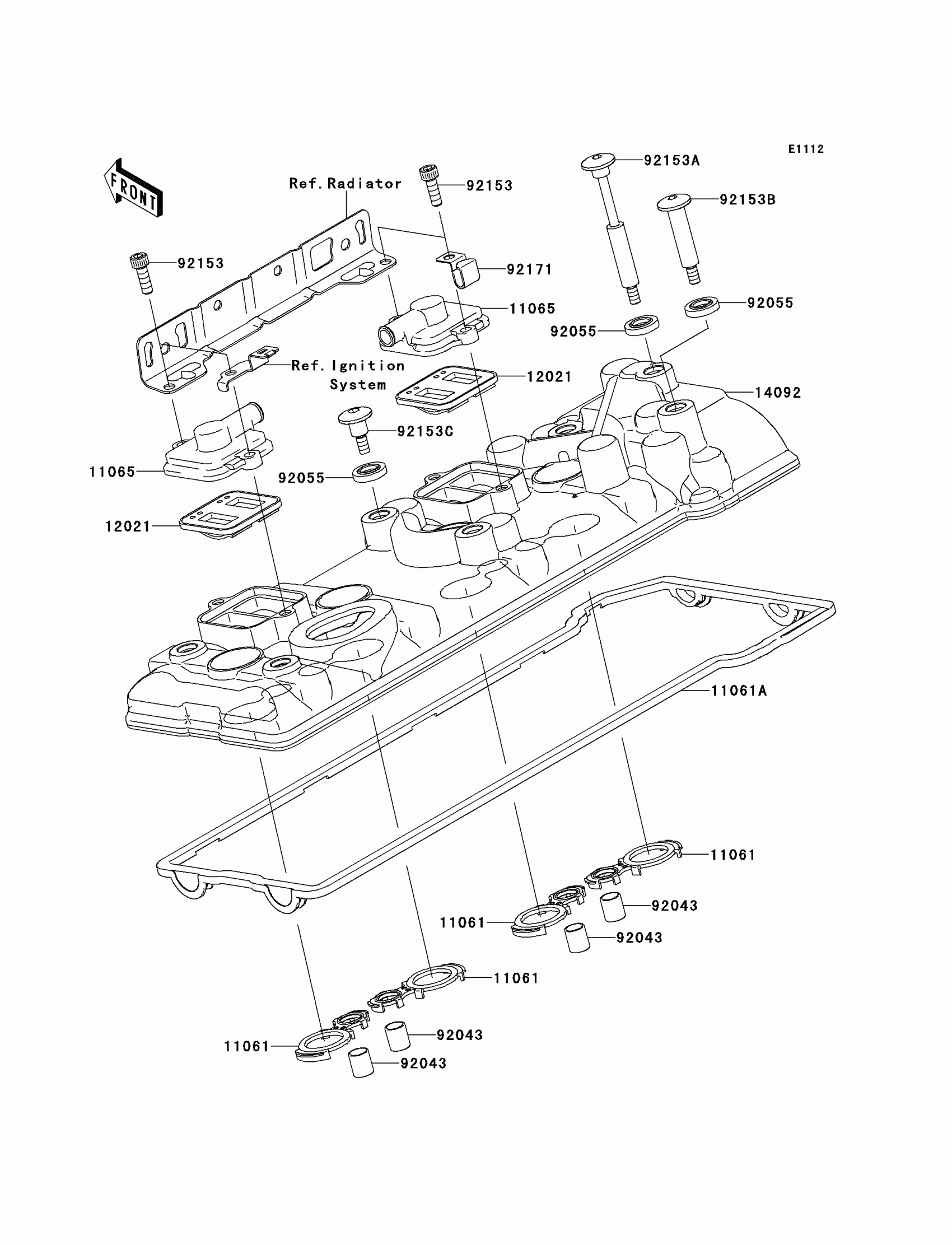

2009 Kawasaki Concours™ 14 Cylinder Head Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,HEAD HOLE

11061-0196

1
Out of stock

11061A

GASKET,HEAD COVER

11061-0263

1
Out of stock

11065

CAP

11065-1247

1
Out of stock

12021

VALVE-ASSY-REED

12021-1130

1
Out of stock

14091

COVER,HEAD

14091-0634

1
Out of stock

92043

PIN,10.1X12X14

92043-4009

1
Out of stock

92055

RING-O

92055-0143

1
Out of stock

92153

BOLT,SOCKET,6X18

92153-1559

1
Out of stock

92153A

BOLT,SOCKET,6X90

92153-1715

1
Out of stock

92153B

BOLT,SOCKET,6X50.8

92153-1753

1
Out of stock

92153C

BOLT,SOCKET,6X22.5

92153-1779

1
Out of stock

92171

CLAMP

92171-0766

1
Out of stock
