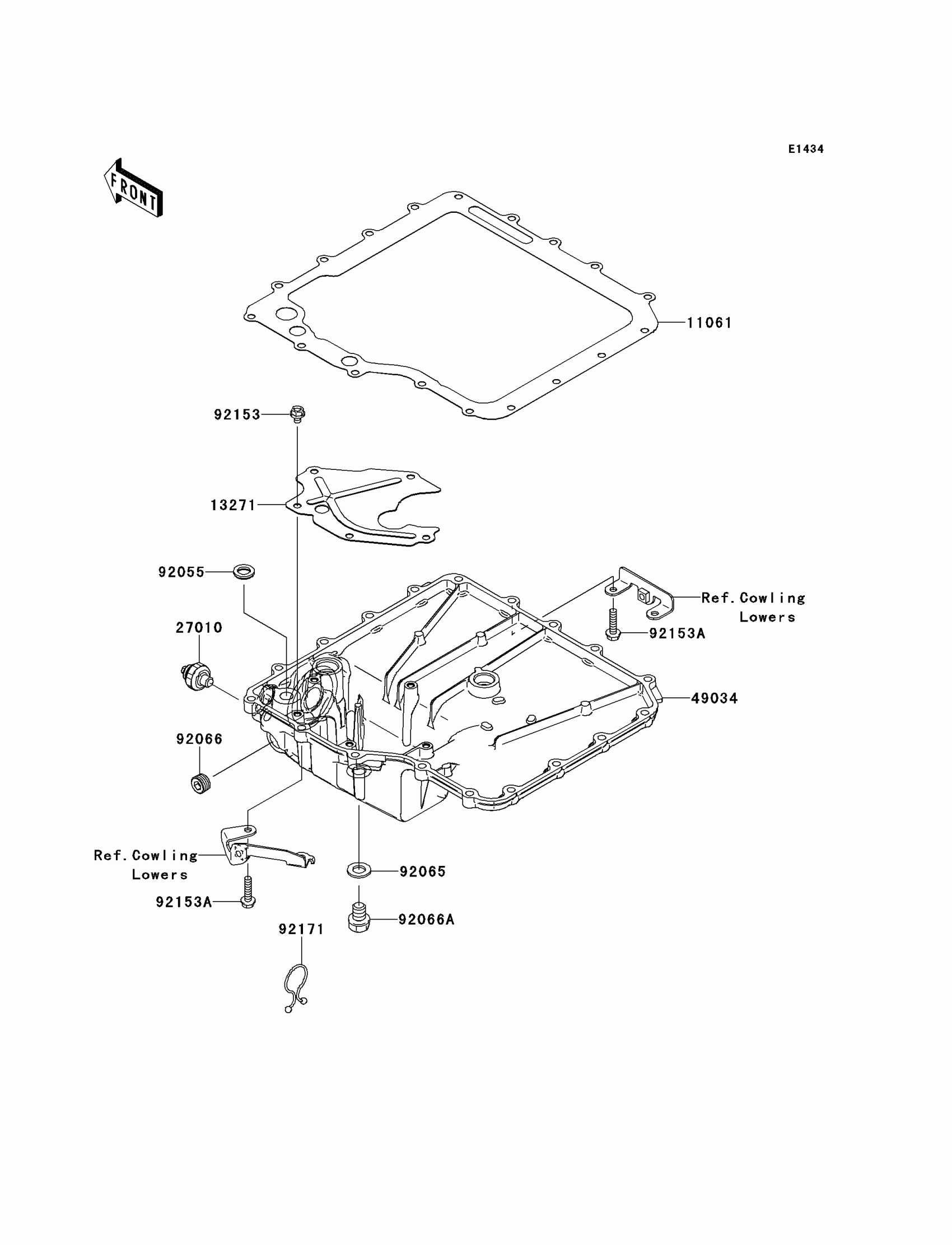

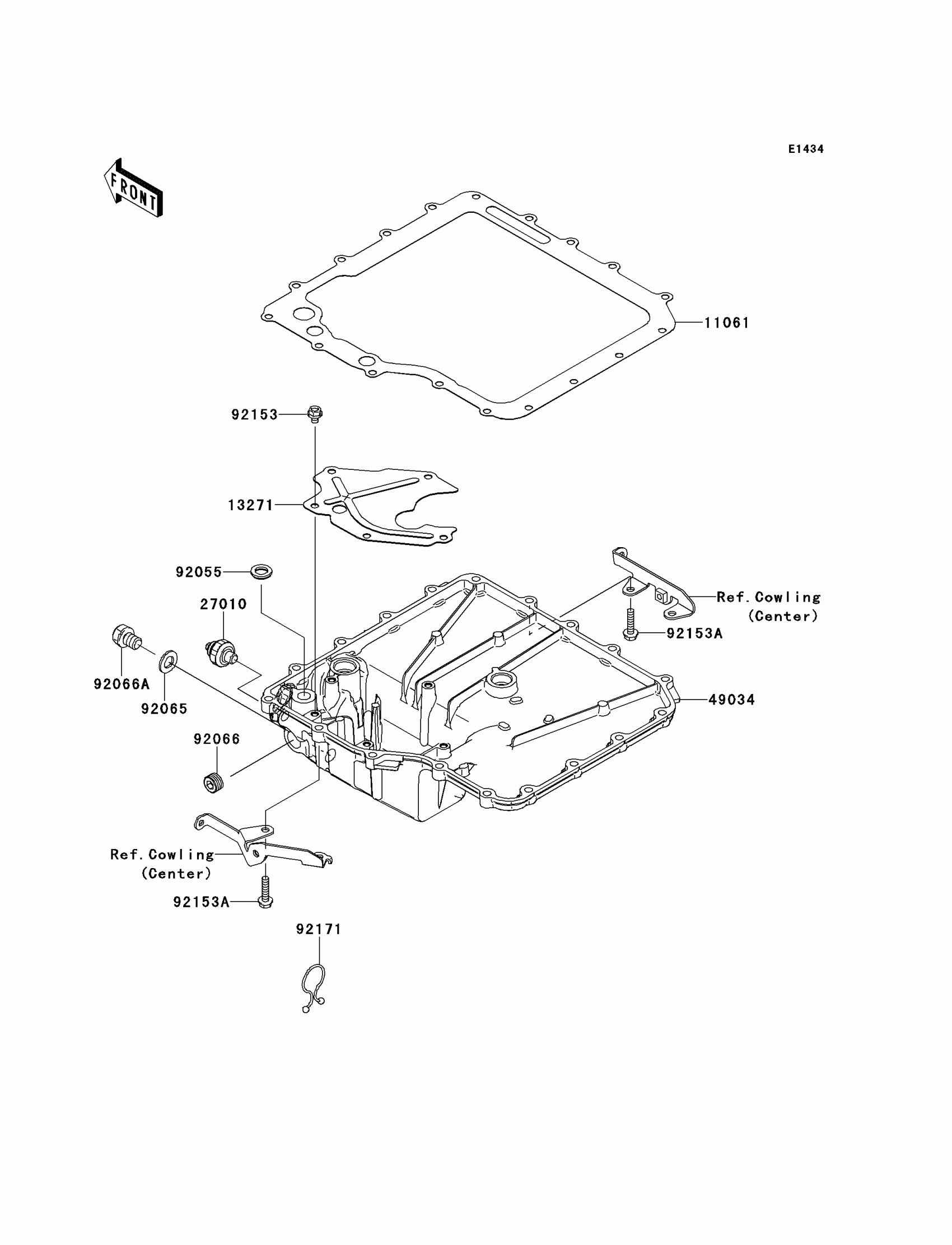

Kawasaki Concours™ 14 Oil Pan Diagram

#

Description
Price

11061

GASKET,OIL PAN

11061-0199

Unavailable

13271

PLATE

13271-0868

Unavailable

27010

SWITCH,OIL PRESSURE

27010-1313

$35.72

49034

PAN-OIL

49034-0022

Unavailable

92055

RING-O,19.5MM

92055-077

$4.47

92065

GASKET,12X22X2

92065-097

$0.66

92066

PLUG

92066-0064

$4.32

92066A

PLUG,12X15

92066-0079

$4.55

92153

BOLT,FLANGED,6X8

92153-1530

$1.04

92153A

BOLT,FLANGED,6X25

92153-1569

$1.32

92171

CLAMP

92171-1185

$2.03
