2009 Kawasaki Concours 14 ABS Rear Wheel/chain Diagram

← All diagrams

Find the part on the Rear Wheel/chain diagram for your 2009 Kawasaki Concours 14 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

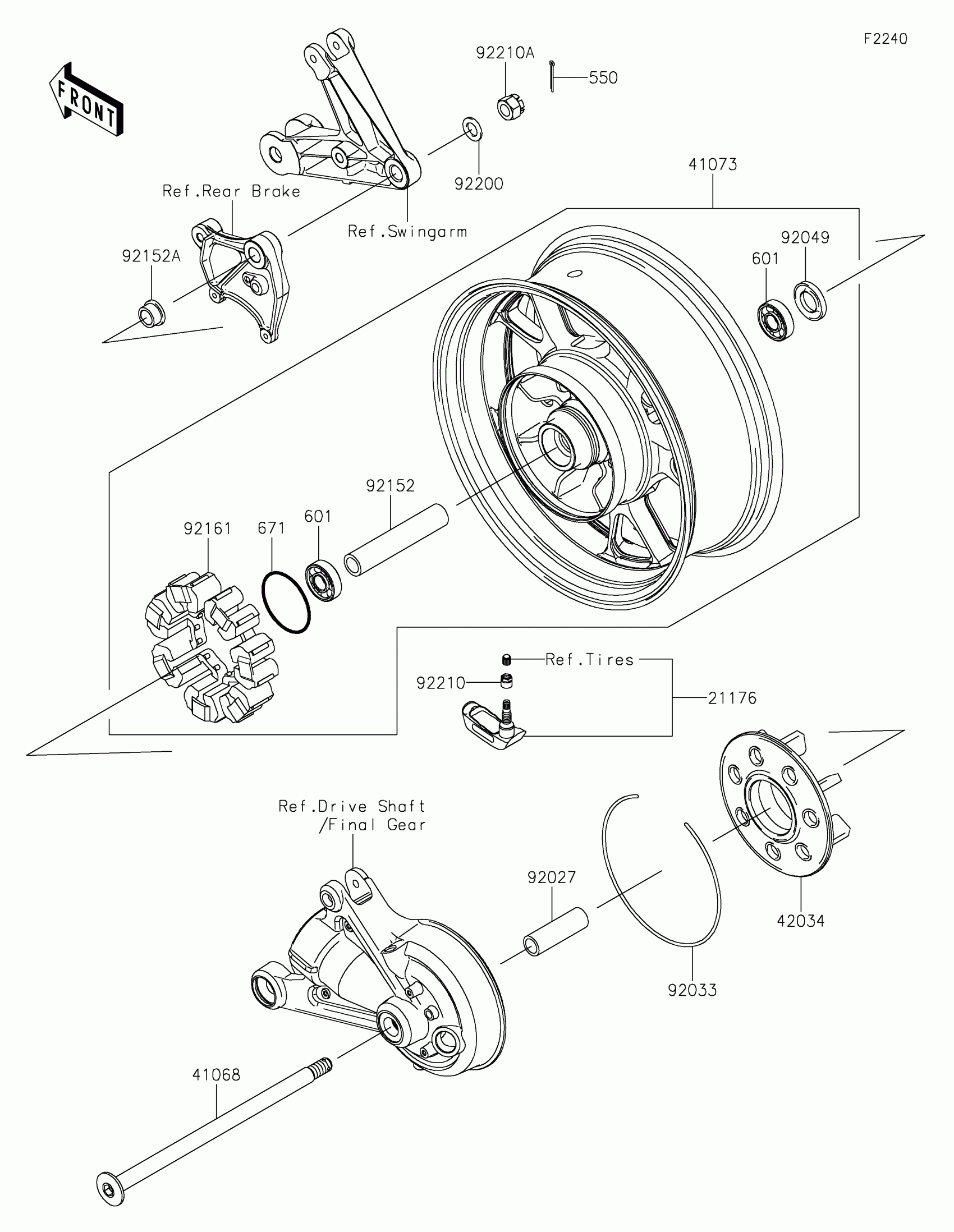

2009 Kawasaki Concours 14 ABS Rear Wheel/chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

550

PIN-COTTER,4.0X35

550AA4035

1
Out of stock

601

BEARING-BALL,#6304UUC3

601B6304UU

1
Out of stock

671

O RING,80MM

671B2580

1
Out of stock

16126

VALVE,TIRE PRESSURE SENSOR

16126-0040

1
Out of stock

21176

SENSOR,TPMS 315MHZ

21176-0107

1
Out of stock

41068

AXLE,RR

41068-0060

1
Out of stock

41073

WHEEL-ASSY,RR,M.F.P.SILVER

41073-0091-795

1
Out of stock

42034

COUPLING,RR HUB

42034-0002

1
Out of stock

92027

COLLAR,20.2X28X89

92027-1553

1
Out of stock

92033

RING-SNAP,220MM

92033-0012

1
Out of stock

92049

SEAL-OIL,28X52X5

92049-1061

1
Out of stock

92152

COLLAR,RR AXLE,RH,L=17

92152-0105

1
Out of stock

92152A

COLLAR,RR HUB,L=151

92152-0494

1
Out of stock

92161

DAMPER,SHOCK,RR HUB

92161-0409

1
Out of stock

92200

WASHER,19X32X2.6

92200-1489

1
Out of stock

92210

NUT,CASTLE,18MM

92210-1134

1
Out of stock
