2009 Kawasaki Concours 14 ABS Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 2009 Kawasaki Concours 14 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

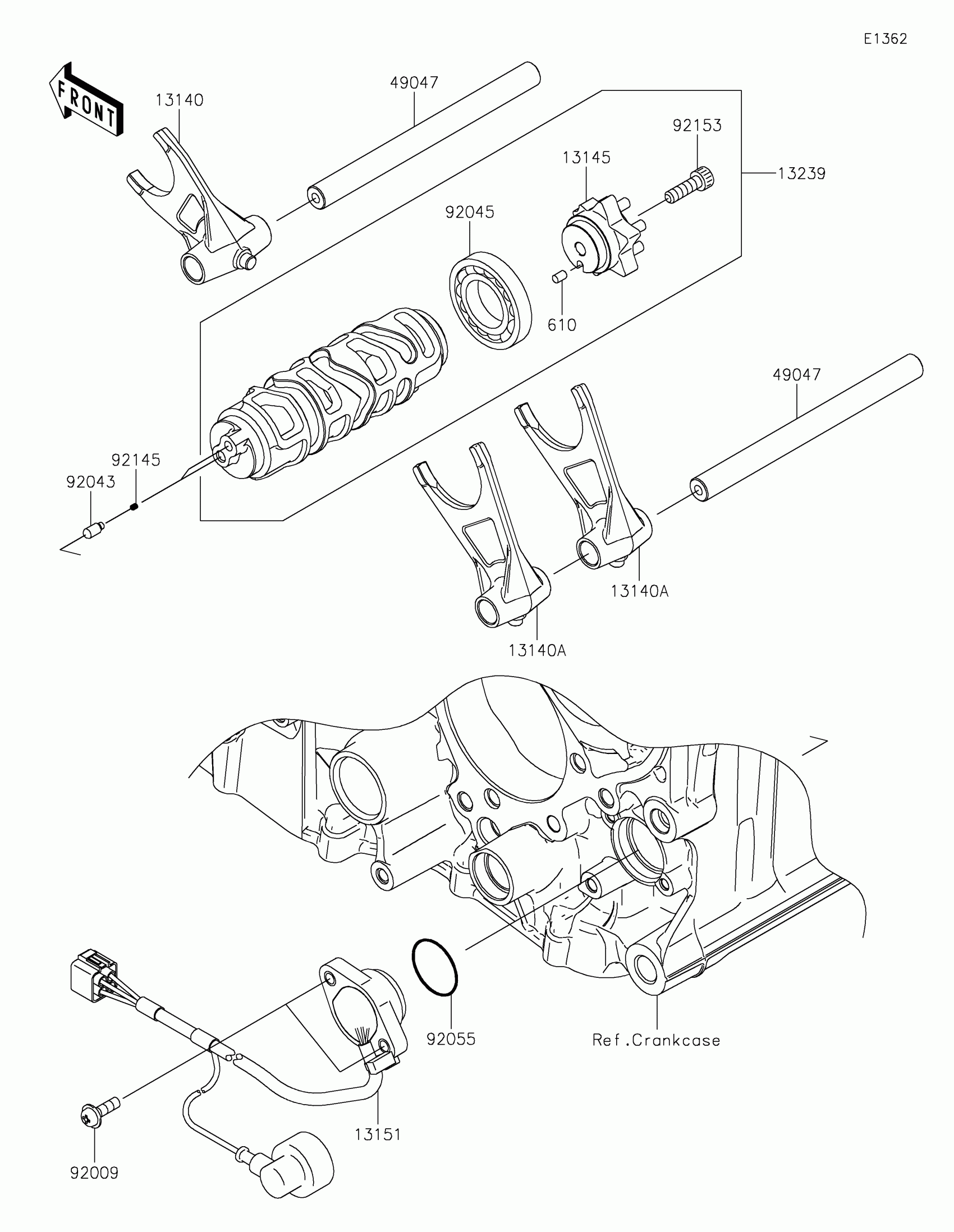

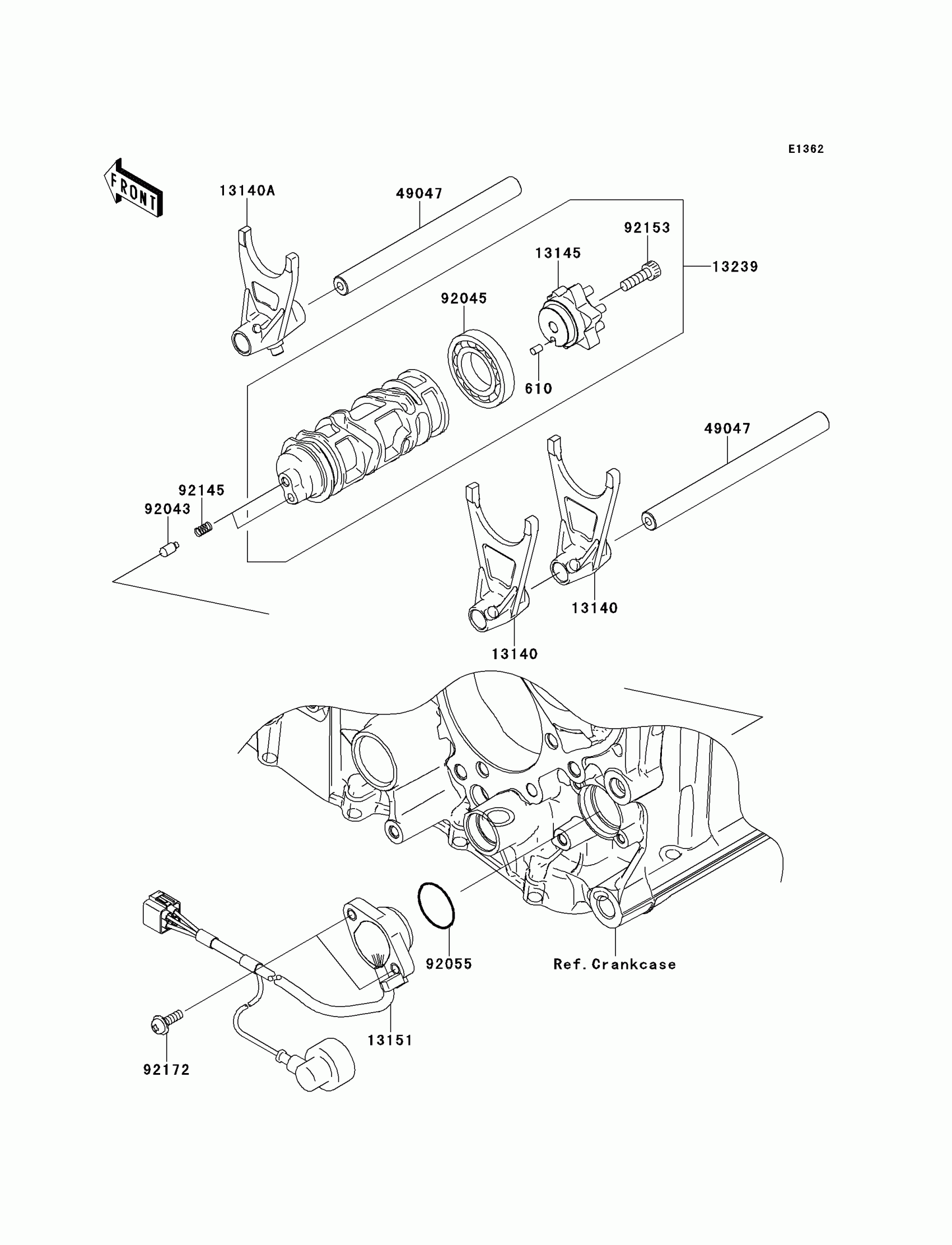

2009 Kawasaki Concours 14 ABS Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

610

ROLLER,4X6

610A0406

1
Out of stock

13140

FORK-SHIFT,OUTPUT

13140-0030

1
Out of stock

13140A

FORK-SHIFT,INPUT

13140-0046

1
Out of stock

13145

CAM-CHANGE DRUM

13145-0023

1
Out of stock

13151

SWITCH-COMP,NEUTRAL

13151-0031

1
Out of stock

13239

DRUM-ASSY-CHANGE

13239-0023

1
Out of stock

49047

ROD-SHIFT

49047-0023

1
Out of stock

92043

PIN

92043-1654

1
Out of stock

92045

BEARING-BALL,16005

92045-1045

1
Out of stock

92055

RING-O,27.7X2.4

92055-091

1
Out of stock

92145

SPRING

92145-1414

1
Out of stock

92153

BOLT,SOCKET,6X20

92153-1031

1
Out of stock

92172

SCREW-PAN-WS-CROS,5X16

92172-0270

1
Out of stock
← Front Bevel Gear Gear Change Mechanism →
