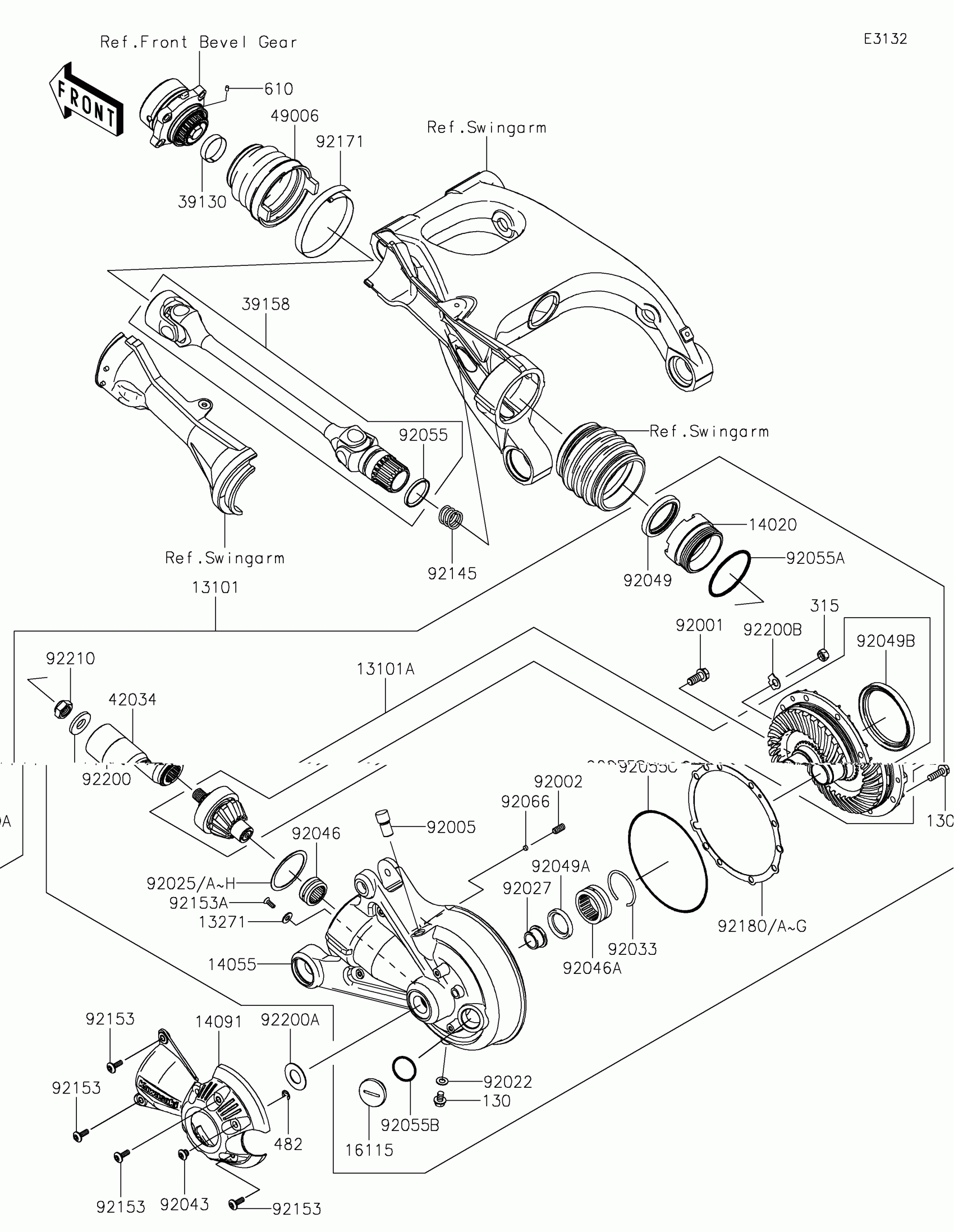

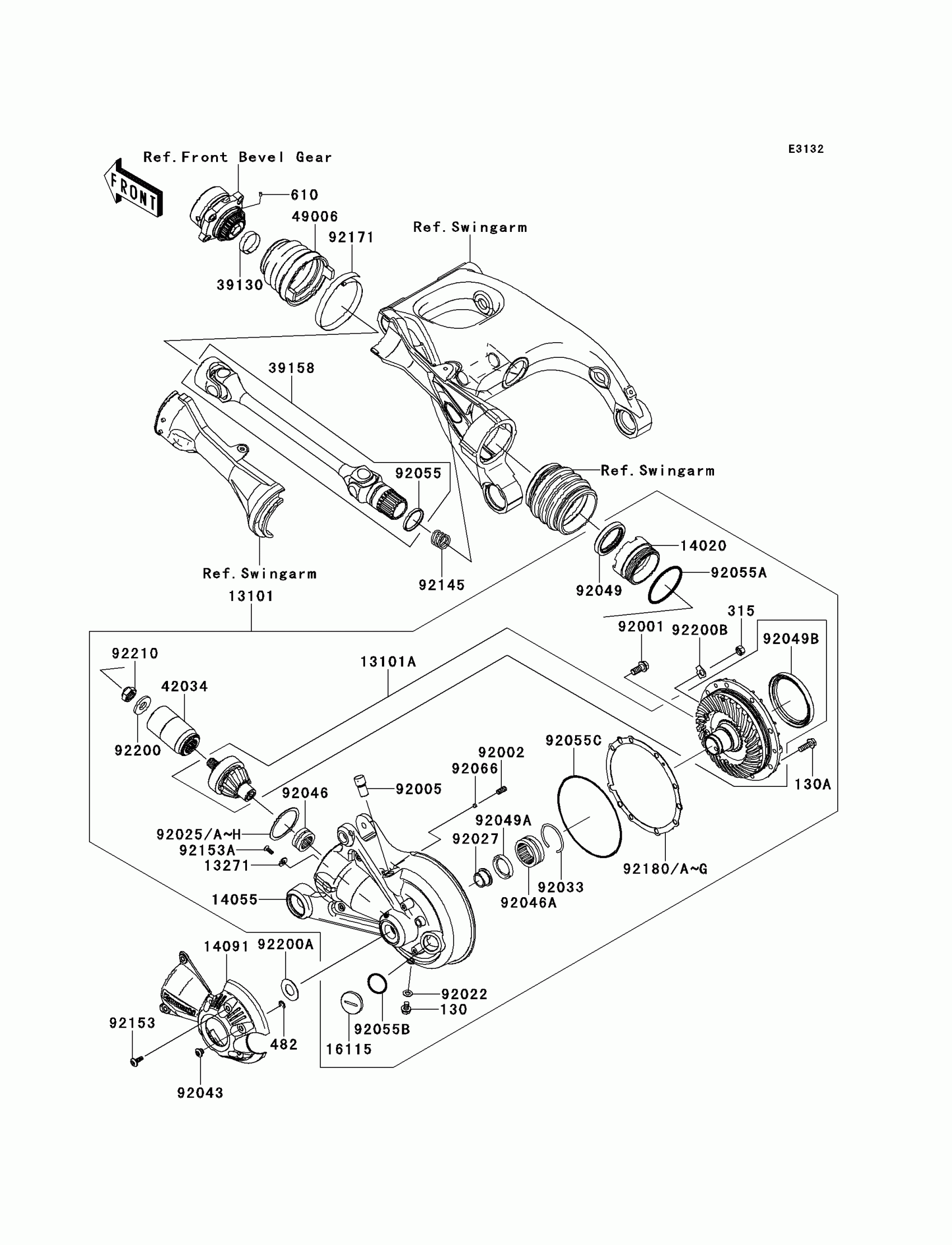

Find the part on the Drive Shaft/final Gear diagram for your 2009 Kawasaki Concours 14 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki Concours 14 ABS Drive Shaft/final Gear Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13101

GEAR-ASSY,P.SILVER

13101-0065-458

1
Out of stock

13101A

GEAR-ASSY,BEVEL,RR

13101-5091

1
Out of stock

13271

PLATE

13271-0930

1
Out of stock

14020

RETAINER

14020-0010

1
Out of stock

14055

CASE-GEAR,P.SILVER

14055-0034-458

1
Out of stock

14091

COVER,DRIVE SHAFT

14091-0908

1
Out of stock

16115

CAP-OIL FILLER

16115-1070

1
Out of stock

39130

SPRING-LEAF

39130-1002

1
Out of stock

39158

SHAFT-ASSY-DRIVE

39158-0004

1
Out of stock

42034

COUPLING

42034-0039

1
Out of stock

49006

BOOT

49006-0070

1
Out of stock

92001

BOLT,10X23

92001-1778

1
Out of stock

92002

SCREW-SET-SOCKET,8X18

92002-1836

1
Out of stock

92005

FITTING

92005-0094

1
Out of stock

92022

WASHER,8.2X16X1

92022-1086

1
Out of stock

92025

SHIM,T=0.10

92025-1733

—
Out of stock

92025A

SHIM,T=0.15

92025-1734

—
Out of stock

92025B

SHIM,T=0.50

92025-1735

—
Out of stock

92025C

SHIM,T=0.60

92025-1736

—
Out of stock

92025D

SHIM,T=0.70

92025-1737

—
Out of stock

92025E

SHIM,T=0.80

92025-1738

—
Out of stock

92025F

SHIM,T=0.90

92025-1739

—
Out of stock

92025G

SHIM,T=1.00

92025-1740

—
Out of stock

92025H

SHIM,T=1.20

92025-1741

—
Out of stock

92027

COLLAR

92027-1557

1
Out of stock

92033

RING-SNAP,52MM

92033-1074

1
Out of stock

92043

PIN

92043-0127

1
Out of stock

92046

BEARING-NEEDLE,RNA4904ARD

92046-1168

1
Out of stock

92046A

BEARING-NEEDLE,38NQ5020WD

92046-1169

1
Out of stock

92049

SEAL-OIL,HTC 50 65 9

92049-0085

1
Out of stock

92049A

SEAL-OIL,S-35477HS

92049-1025

1
Out of stock

92049B

SEAL-OIL,MHSA83X100X9XRT

92049-1280

1
Out of stock

92055

RING-O

92055-0115

1
Out of stock

92055A

RING-O,67.6X3.5

92055-0134

1
Out of stock

92055B

RING-O,31.5X2.6

92055-049

1
Out of stock

92055C

RING-O,OUTSIDE

92055-3771

1
Out of stock

92066

PLUG,6.2X3

92066-1272

1
Out of stock

92145

SPRING,25.8X4.0X86.2

92145-0549

1
Out of stock

92153

BOLT,6X18

92153-0816

1
Out of stock

92153A

BOLT,TORX,5X15

92153-1787

1
Out of stock

130

BOLT-FLANGED,8X12

130BB0812

1
Out of stock

130A

BOLT-FLANGED,8X25

130BD0825

1
Out of stock

315

NUT-HEX-FINE,10MM

315BA1000

1
Out of stock

482

CIRCLIP-TYPE-E

482EA7000

1
Out of stock

610

ROLLER,4X6

610A0406

1
Out of stock

92171

CLAMP

92171-1715

1
Out of stock

92180

SHIM,T=0.15

92180-0263

1
Out of stock

92180A

SHIM,T=0.50

92180-0264

—
Out of stock

92180B

SHIM,T=0.60

92180-0265

—
Out of stock

92180C

SHIM,T=0.70

92180-0266

—
Out of stock

92180D

SHIM,T=0.80

92180-0267

—
Out of stock

92180E

SHIM,T=0.90

92180-0268

—
Out of stock

92180F

SHIM,T=1.00

92180-0269

—
Out of stock

92180G

SHIM,T=1.20

92180-0270

—
Out of stock

92200

WASHER,16X36X4

92200-0320

1
Out of stock

92200A

WASHER,20.5X40X1.2

92200-0321

1
Out of stock

92200B

WASHER

92200-1003

1
Out of stock

92210

NUT,16MM

92210-0354

1
Out of stock
