2013 Kawasaki Concours® 14 ABS Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2013 Kawasaki Concours® 14 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

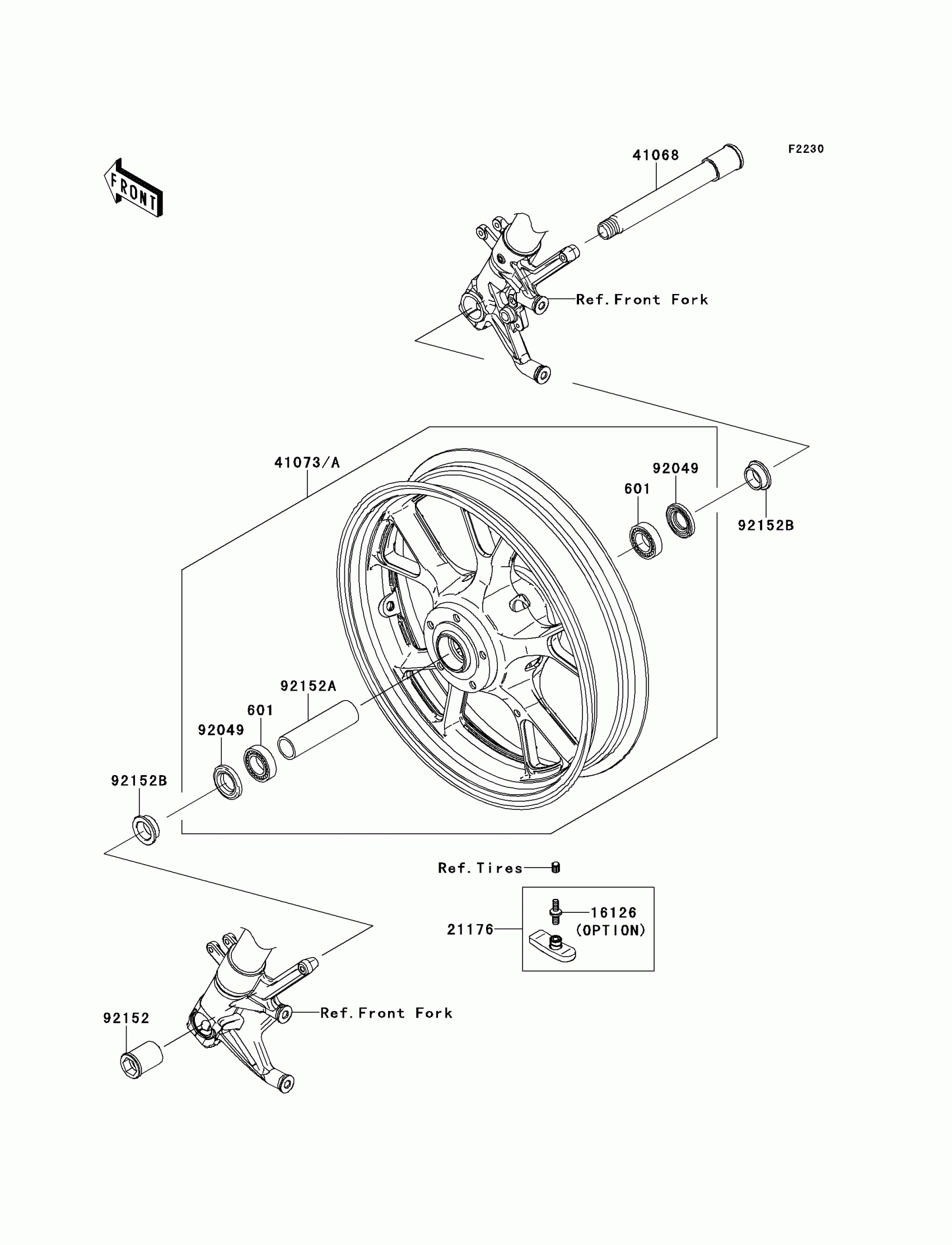

2013 Kawasaki Concours® 14 ABS Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

601

1

$24.49

In stock

16126

VALVE,TIRE PRESSURE SENSOR

16126-0040

1
Out of stock

21176

SENSOR,TPMS 315MHZ

21176-0125

1
Out of stock

41068

AXLE,FR

41068-0049

1

$114.47

In stock

41073

WHEEL-ASSY,FR,G.BLACK

41073-0105-18F

1
Out of stock

92049

SEAL-OIL,BJN-C2 32X47X5

92049-0050

1
Out of stock

92152

1

$56.82

In stock

92152A

COLLAR,FR HUB,L=115

92152-0242

1

$38.45

In stock

92152B

COLLAR,25X32X13

92152-0289

1

$34.56

In stock
