2014 Kawasaki Concours® 14 ABS Suspension/shock Absorber Diagram

← All diagrams

Find the part on the Suspension/shock Absorber diagram for your 2014 Kawasaki Concours® 14 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

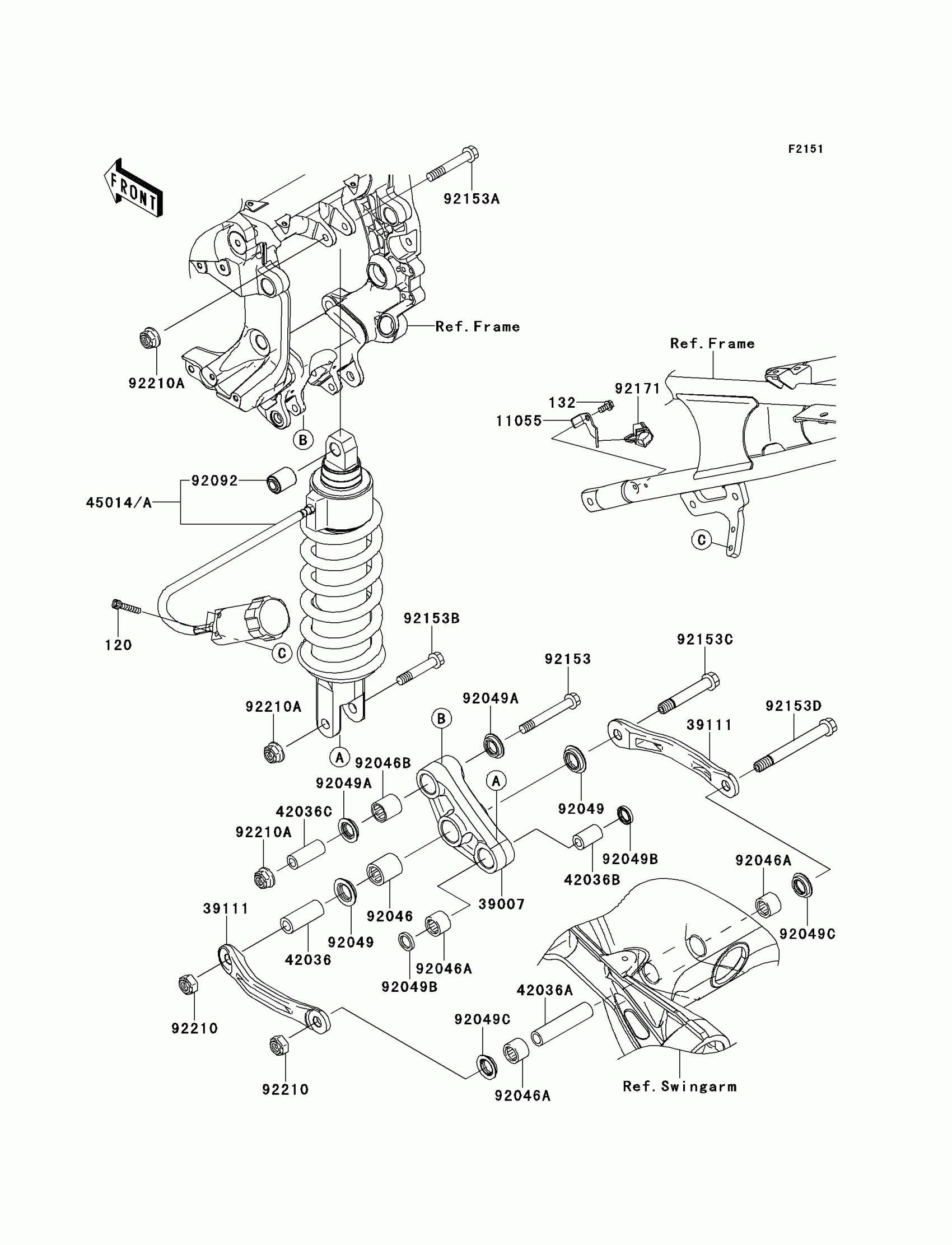

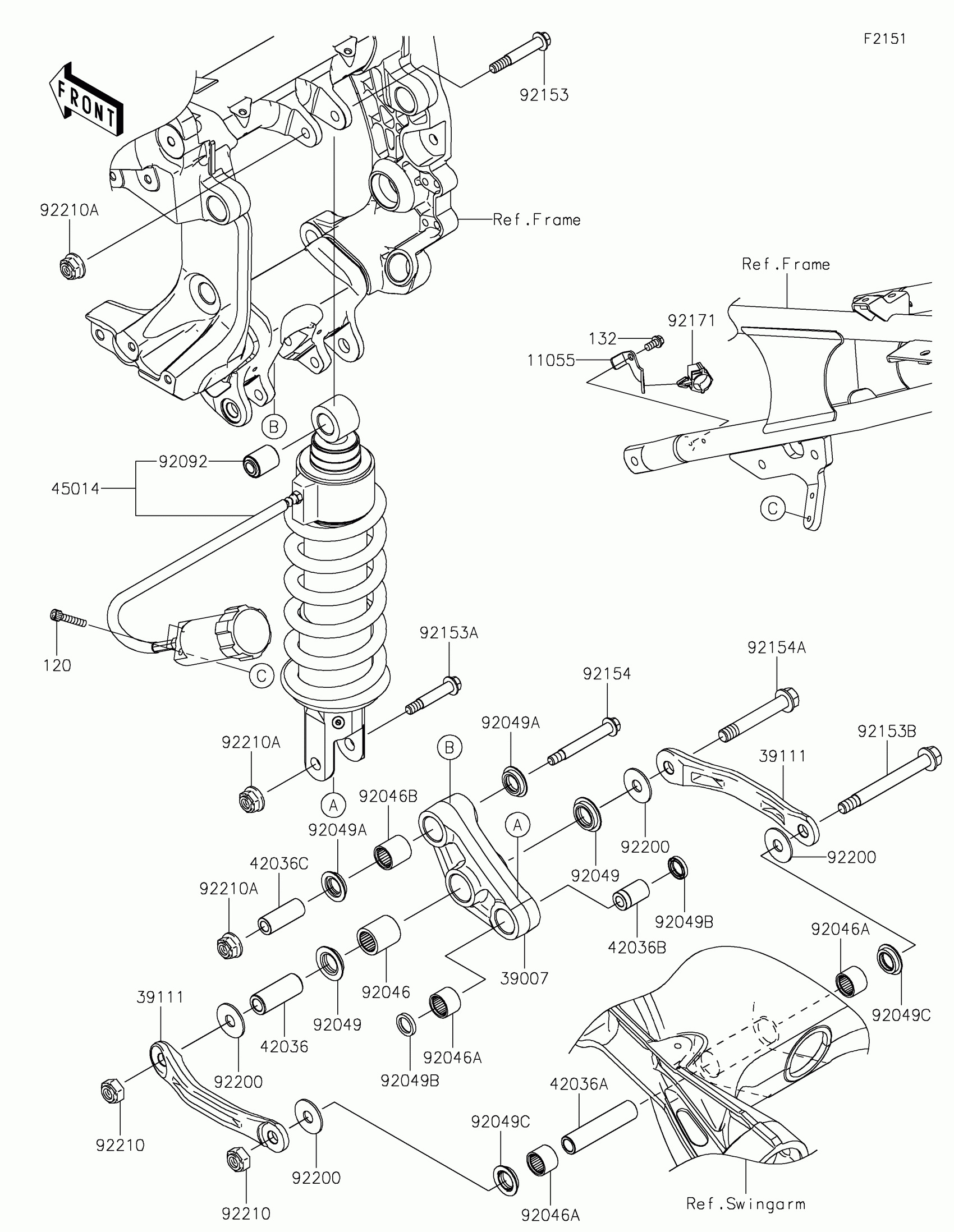

2014 Kawasaki Concours® 14 ABS Suspension/shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X30

120CA0630

1
Out of stock

132

1

$1.12

In stock

11055

BRACKET

11055-1298

1

$7.95

In stock

39007

ARM-SUSP

39007-0120

1

$285.83

In stock

39111

ROD-TIE,SUSPENSION

39111-0038

1

$36.84

In stock

42036

SLEEVE,12.1X20X50

42036-1111

1
Out of stock

42036A

SLEEVE,12.1X18X82

42036-1231

1
Out of stock

42036B

SLEEVE,10.1X18X30

42036-1258

1
Out of stock

42036C

SLEEVE,10.1X17X44.5

42036-1342

1
Out of stock

45014A

SHOCK,SPRING SIL+BODY BLK

45014-0410-23A

1
Out of stock

92046

BEARING-NEEDLE,7E-HVS20X27X30

92046-0029

1
Out of stock

92046A

BEARING-NEEDLE,SFYZM182417

92046-1272

1
Out of stock

92046B

BEARING-NEEDLE,SFYZM172425

92046-1273

1
Out of stock

92049

SEAL-OIL,ARM

92049-1109

1
Out of stock

92049A

SEAL-OIL,MHA17245.7F

92049-1223

1
Out of stock

92049B

SEAL-OIL,MHA18244

92049-1225

1
Out of stock

92049C

SEAL-OIL,KCR MF018N1

92049-1493

1
Out of stock

92092

BUSHING-RUBBER

92092-1058

1
Out of stock

92153

BOLT,FLANGED,10X77

92153-1613

1
Out of stock

92153A

BOLT,FLANGED,10X62

92153-1614

1
Out of stock

92153B

BOLT,FLANGED,10X55

92153-1615

1
Out of stock

92153C

BOLT,FLANGED,12X76

92153-1844

1
Out of stock

92153D

BOLT,FLANGED,12X111

92153-1845

1
Out of stock

92171

CLAMP,BRAKE HOSE

92171-0316

1

$3.08

In stock

92210

NUT,LOCK,12MM

92210-0274

1
Out of stock

92210A

NUT,LOCK,FLANGED,10MM

92210-1139

1
Out of stock
