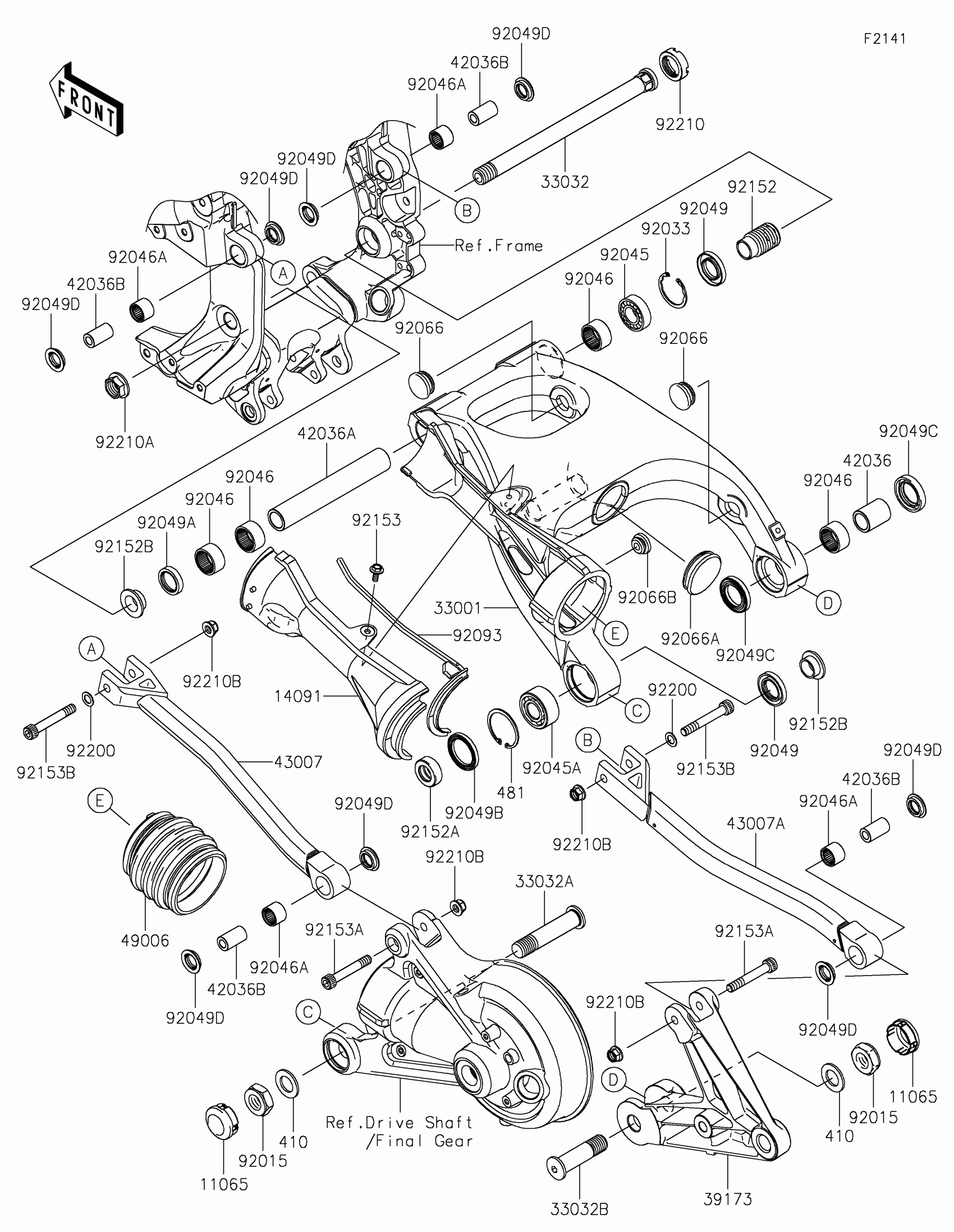

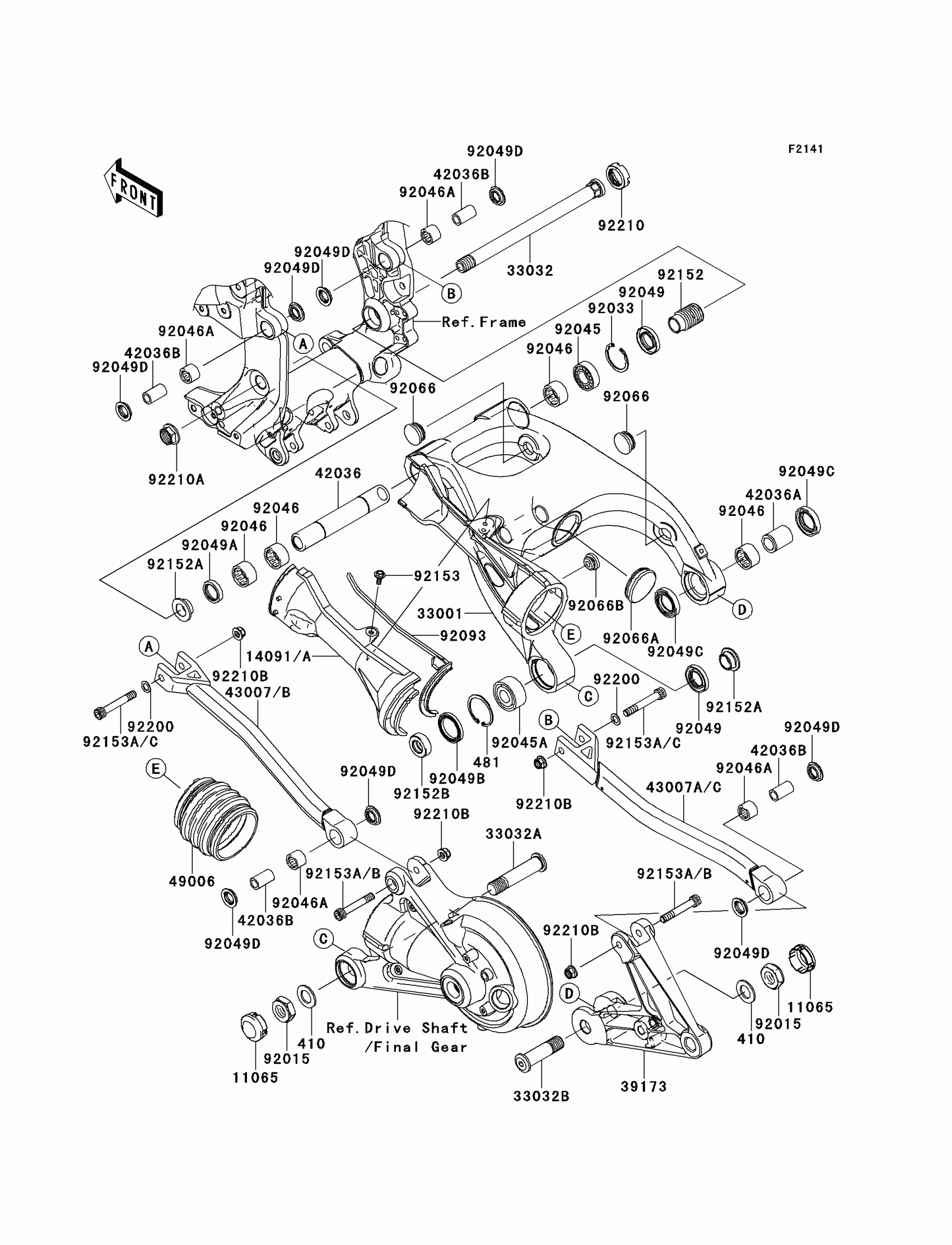

Kawasaki Concours 14 ABS Swingarm Diagram

#

Description
Price

11065

CAP

11065-0180

$6.13

14091A

COVER,DRIVE SHAFT

14091-1627

$41.05

33001

ARM-COMP-SWING,P.SILVER

33001-0145-458

$1,148.88

33032

SHAFT-SWING ARM,PIVOT

33032-0023

$114.20

33032A

SHAFT-SWING ARM,REAR GEAR CASE

33032-0024

$81.39

33032B

SHAFT-SWING ARM,AXLE BRACKET

33032-0025

$81.39

39173

BRACKET-AXLE,RH,P.SILVER

39173-0070-458

$228.27

42036

SLEEVE,SWING ARM PIVOT,L=178

42036-0042

$76.01

42036A

SLEEVE,20.15X28X36

42036-0044

$34.76

42036B

SLEEVE,10.1X18X32

42036-1344

$10.83

43007B

ROD-TORQUE,LH,P.SILVER

43007-0012-458

$228.02

43007C

ROD-TORQUE,RH,P.SILVER

43007-0013-458

$228.02

49006

BOOT,REAR GEAR CASE

49006-0067

$58.88

92015

NUT,LOCK,20MM

92015-1770

$28.80

92033

RING-SNAP,42MM

92033-1041

$4.64

92045

BEARING-BALL,6004UL11

92045-0017

$10.93

92045A

BEARING-BALL,#5204

92045-0064

$48.62

92046

BEARING-NEEDLE,7E-HVS 28X34X17

92046-0008

$17.41

92046A

BEARING-NEEDLE,SFYZM182417

92046-1272

$12.45

92049

SEAL-OIL,MHSA25X42X6

92049-1314

$10.44

92049A

SEAL-OIL,MHSA25X34X7

92049-1352

$7.08

92049B

SEAL-OIL,MHA 35X47X5

92049-1381

$13.00

92049C

SEAL-OIL

92049-1386

$7.67

92049D

SEAL-OIL,KCR MF018N1

92049-1493

$7.00

92066

PLUG

92066-0084

$7.86

92066A

PLUG

92066-0090

$7.86

92066B

PLUG,17MM

92066-1320

$3.68

92093

SEAL,DRIVE SHAFT COVER

92093-0122

$39.25

92152

COLLAR,SWING ARM,RH,L=47

92152-0362

$47.69

92152A

COLLAR,SWING ARM,LH,L=12.5

92152-0363

Unavailable

92152B

COLLAR

92152-0473

$28.88

410

WASHER-PLAIN-SMALL,20MM

410AA2000

$2.22

481

CIRCLIP-TYPE-C,47MM

481J4700

$3.22

92153

BOLT,UPSET-WP,6X16

92153-1587

$1.53

92153B

BOLT,SOCKET,10X63

92153-1943

$10.34

92153C

BOLT,SOCKET,10X67

92153-1944

$10.34

92200

WASHER,11X18X1

92200-0324

$7.92

92210

NUT,30MM

92210-0134

$25.26

92210A

NUT,FLANGED,20MM

92210-0320

$9.07

92210B

NUT,LOCK,FLANGED,10MM

92210-1139

$2.90
