2009 Kawasaki Concours 14 ABS Brake Pedal/torque Link Diagram

← All diagrams

Find the part on the Brake Pedal/torque Link diagram for your 2009 Kawasaki Concours 14 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

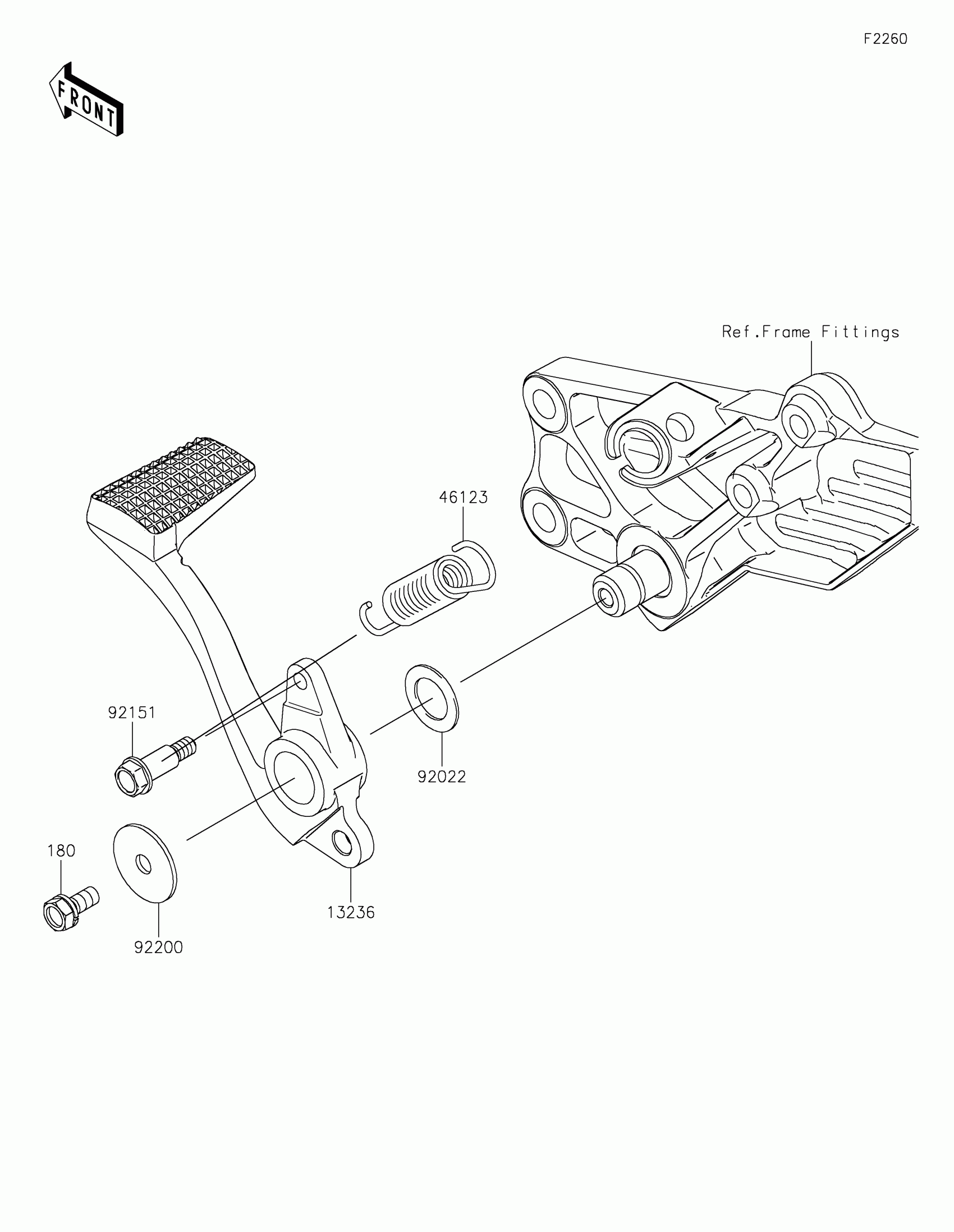

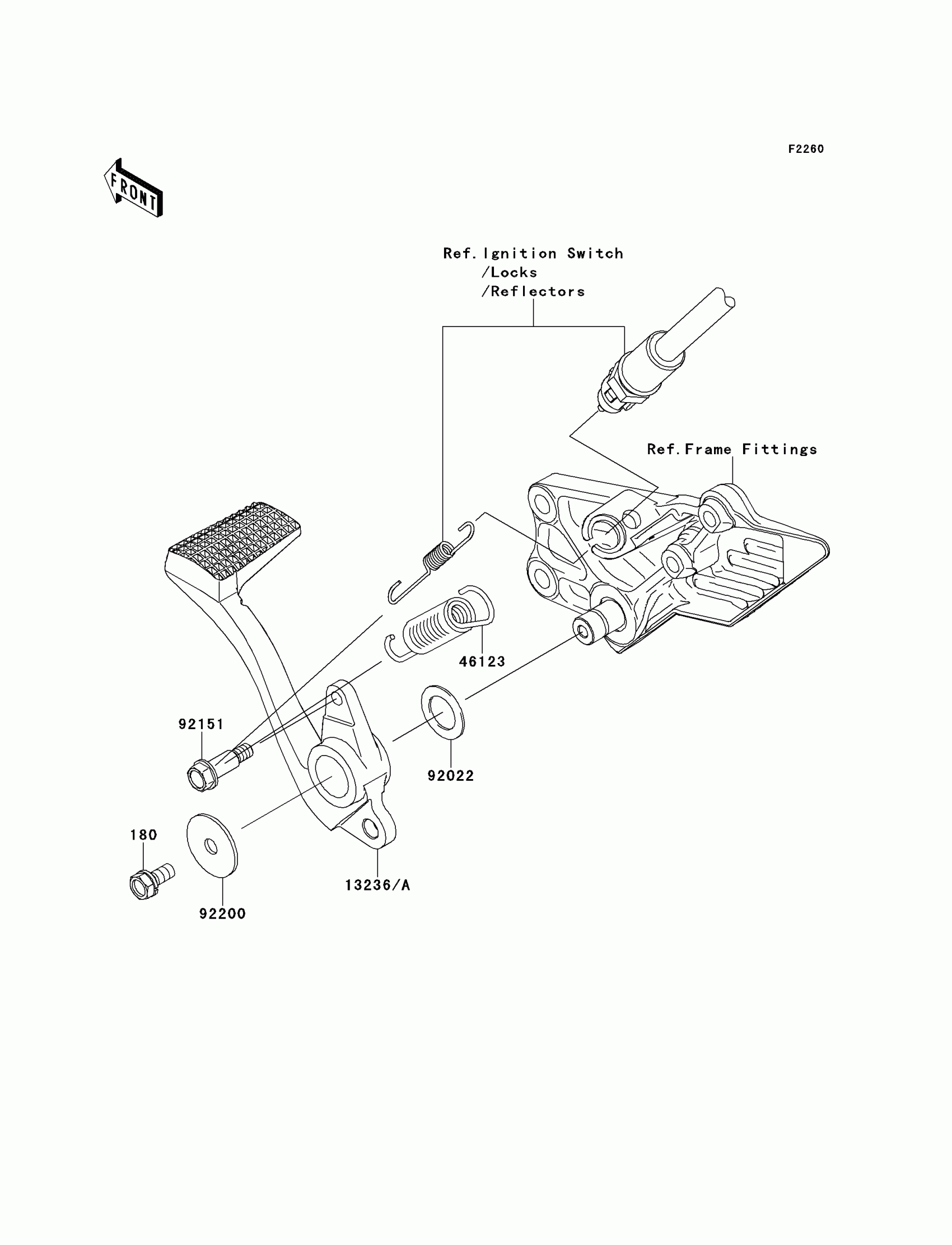

2009 Kawasaki Concours 14 ABS Brake Pedal/torque Link Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

180

BOLT-UPSET-WS,6X14

180BA0614

1

$1.17

In stock

13236A

1

$108.28

In stock

46123

1

$5.03

In stock

92022

WASHER,15.3X24X1

92022-326

1
Out of stock

92151

BOLT,6MM

92151-1295

1

$5.19

In stock

92200

WASHER,7X28X1.6

92200-0279

1
Out of stock
