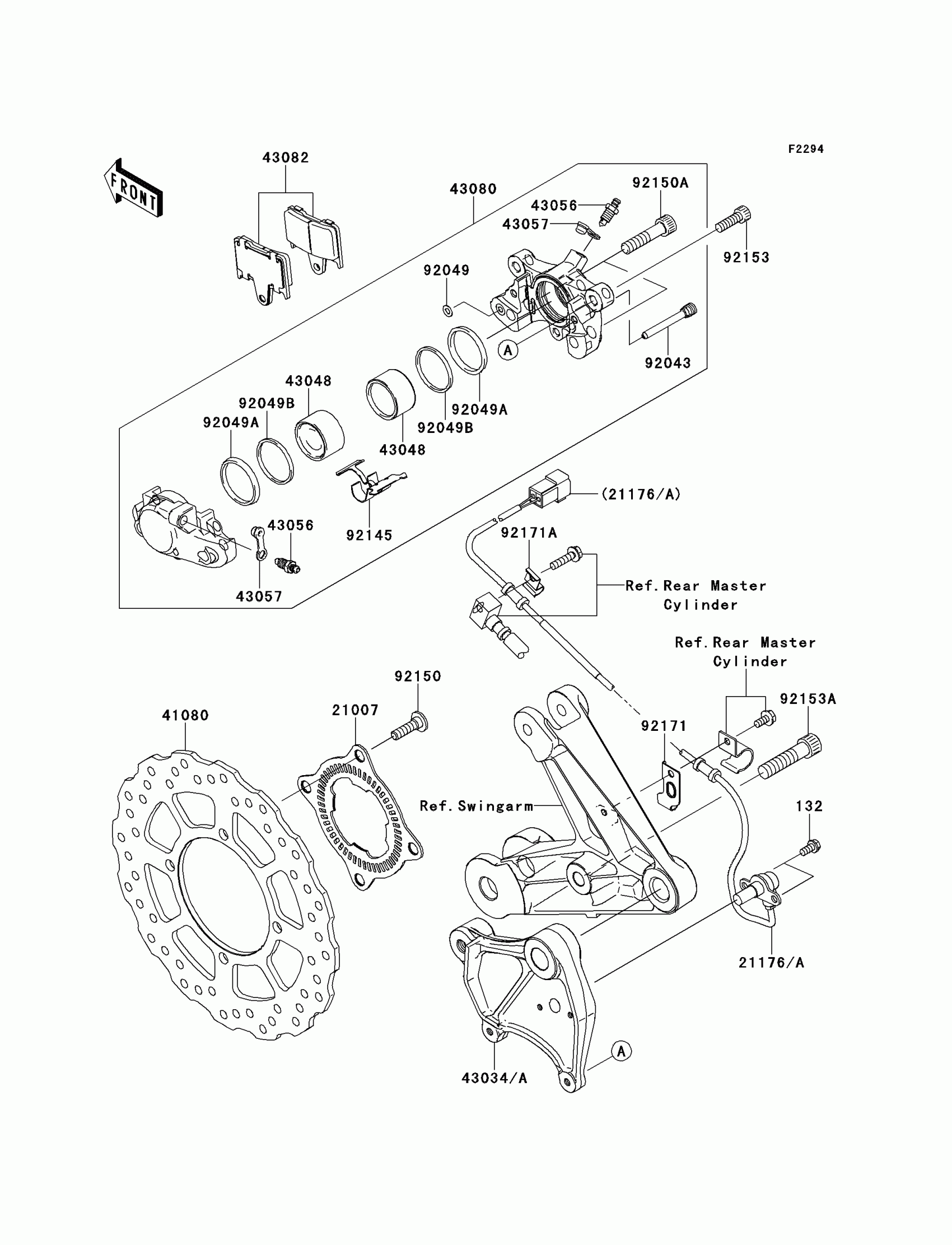

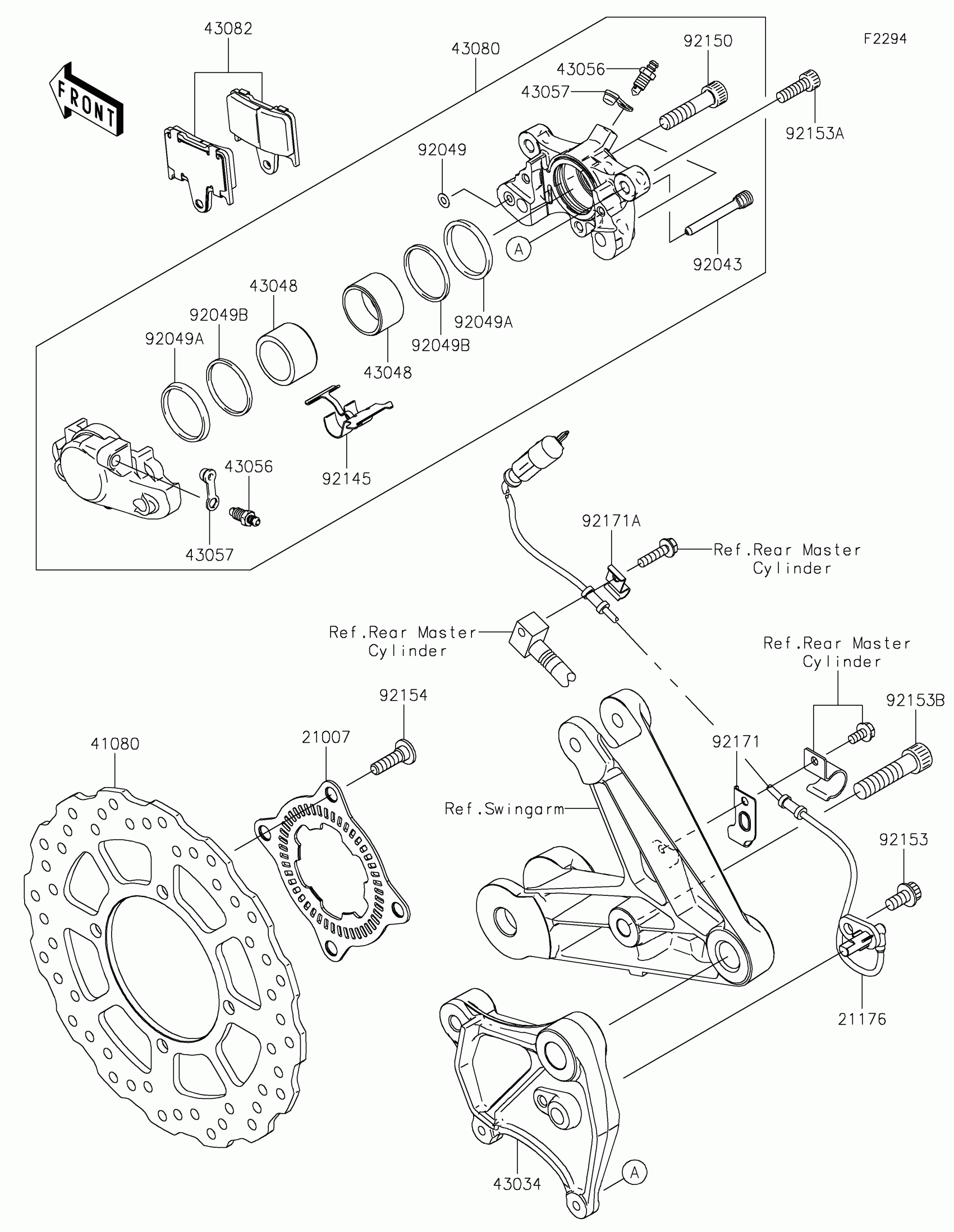

Kawasaki Concours 14 ABS Rear Brake Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$0.97

21007

ROTOR,SENSOR,RR

21007-0069

$104.38

21176A

SENSOR,SPEED,RR

21176-0098

Unavailable

41080

DISC,RR

41080-0106

$393.44

43034A

HOLDER-BRAKE,REAR CALIPER

43034-0044

$131.31

43048

PISTON-CALIPER

43048-0006

$41.38

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$3.73

43080

CALIPER-SUB-ASSY,RR,BLACK

43080-0040-DJ

$322.60

43082

PAD-ASSY-BRAKE

43082-0055

$80.61

92043

PIN,PAD

92043-0106

$5.91

92049

SEAL-OIL

92049-1448

$2.99

92049A

SEAL-OIL

92049-1449

$3.81

92049B

SEAL-OIL

92049-1450

$3.85

92145

SPRING,PAD

92145-0379

$4.92

92150

BOLT,SOCKET,8X30

92150-1771

$3.57

92150A

BOLT

92150-1972

$4.32

92153

BOLT,SOCKET,8X25

92153-1625

$3.54

92153A

BOLT,SOCKET,12X50

92153-1781

$10.34

92171

CLAMP

92171-0881

$7.92

92171A

CLAMP

92171-1702

$7.61
