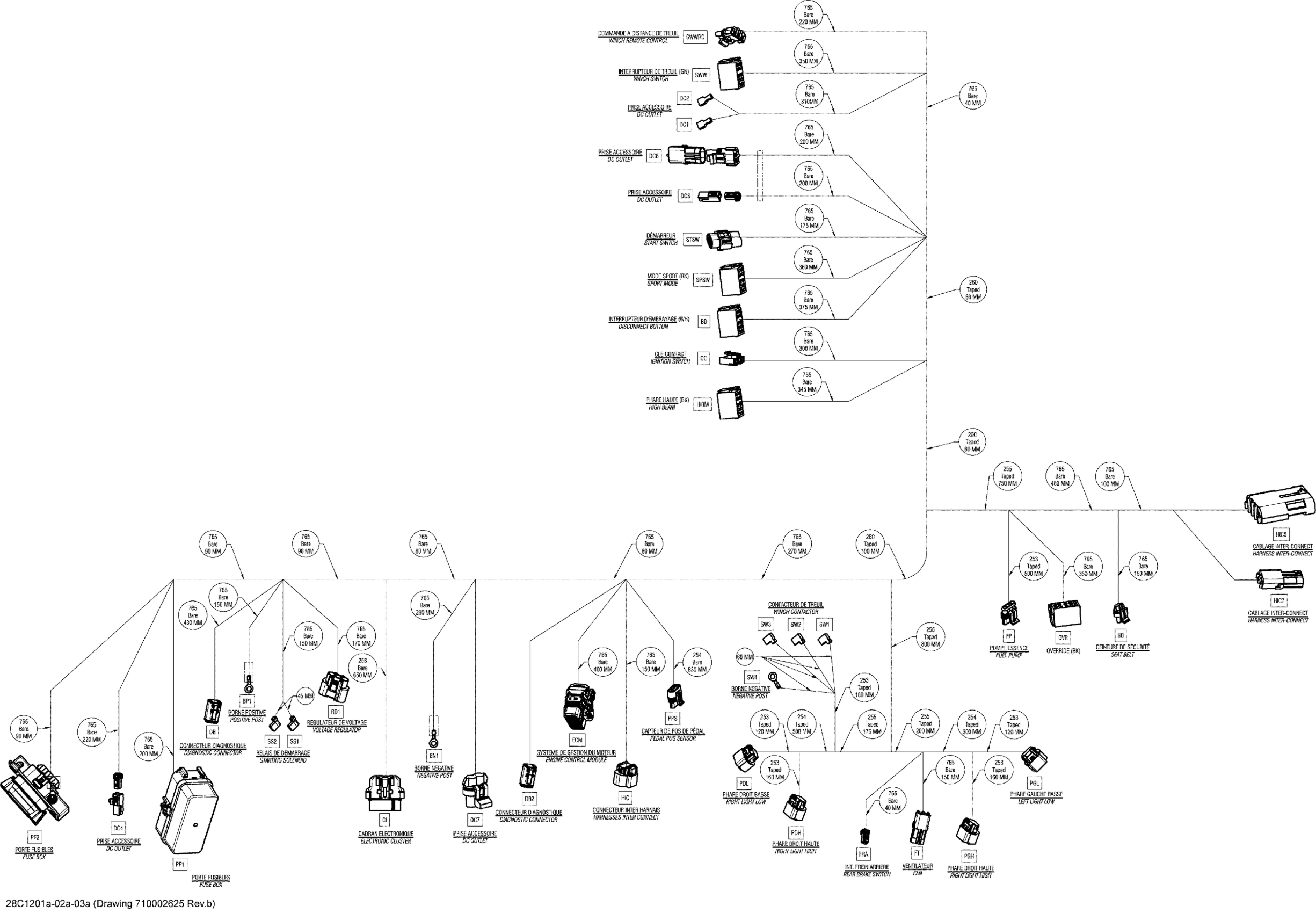

Can-Am Commander STD, XT, 800R EFI, 2012 Main Harness Diagram

#

Description
Price

1

Wiring Harness Ass'y

710002625

$1,015.35

33

Wire Seal

278000999

$2.55

44

Female Terminal

515175231

$4.12

62

Female Terminal

278001014

$2.72

70

Female Housing, 4 Circuits

409209700

$12.97

73

Wire Seal

278001013

$2.72

76

Female Terminal

409010800

$0.95

77

Female Terminal

409010300

$4.12

79

Female Terminal

710000038

$4.60

99

Open Barrel

278000992

$1.79

101

Open Barrel Terminal

278001392

$4.12

117

Male Terminal Housing, 6 Circuits

710001539

$15.57

138

Sealing Cap

293000052

$2.55

226

Male Terminal | XT Models

278000222

$2.55

227

Male Terminal

409004300

$5.46

228

Female Terminal

409007300

$0.36

229

Female Terminal

278000223

$2.55

231

Female Housing, 2 Circuits

278000217

$7.59

233

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278000394

Unavailable

237

Male Connector, 2 Circuits

278000220

$11.02

238

Male Housing, 3 Circuits

278000273

$7.59

242

Wire Seal

278000218

$3.48

244

Wire Seal

278000216

$2.55

253

Tubing 6 Mm 3000Mm Long

219704425

$13.14

254

Was 409901700 Tubing (9 mm)

219704399

$79.97

255

Was 409901800 Tubing (13 mm)

219704400

$9.40

256

Tubing 16 Mm 1000Mm Long

219704408

$6.23

257

Was 409901600 Tubing 19mm

219704398

$89.97

258

Tubing 10 MM 1000MM Long

219704407

$2.20

260

Was 515175319 Tubing 22 mm

219704423

$11.84

280

Female Terminal

409012100

$3.73

283

Female Terminal Housing, 2 Circuits

409209200

Unavailable

286

Seal

409012300

$4.38

301

Diode

409012700

$10.83

355

Female Housing, 2 Circuits

515175658

$15.35

366

Male Housing, 6 Circuits

515175673

$13.05

371

Male Wedge, 6 Circuits

515175678

$5.11

387

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

409

Plug

515175812

$1.70

410

Female Housing, 24 Circuits

515175801

$9.00

411

Retainer Block

515175802

$10.66

412

Wire Seal

515175803

$2.41

476

Seal

278001482

$2.55

484

Seal

415128501

$1.51

498

Female Housing

710000399

$14.02

504

Wire Seal

278001065

$6.03

504

Wire Seal

278001065

$6.03

588

Protector Cap

710000526

$10.14

624

Female Terminal

710000221

Unavailable

641

Male Housing, 2 Circuits

710000667

$7.48

666

Little Fuse, 5 Amperes

710000742

$7.24

667

Little Fuse, 7.5 Amperes

710000743

$8.02

668

Little Fuse, 10 Amperes

710000744

$7.24

669

Little Fuse, 15 Ampere

710000745

$6.77

671

Little Fuse, 30 Amperes

710000747

$6.77

675

Fuse Box Base Ass´y

415129856

$41.57

684

Fuse Puller

710000781

$8.29

702

Female Terminal

710000836

$5.46

703

Female Terminal

710000837

$4.32

706

Cap

710000840

$5.49

709

Lock

710000848

$3.98

711

Male Housing, 6 Circuits

710000849

$7.55

734

Female Housing, 3 Circuits

710000879

$21.42

737

Cap

710000882

$9.19

750

Terminal

710000913

$5.46

757

Female Terminal

278001665

$3.73

764

Clip

710000992

$4.00

765

Adhesive Tape

293740027

Unavailable

773

Fuse Cover

710001026

$17.52

783

Fuse, 50 AMP

710001048

$5.52

807

Female Terminal

710001134

$6.03

827

Female Terminal

710001119

$4.32

831

Female Terminal

710001131

$7.00

832

TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership

710001142

Unavailable

836

FEMALE TERMINAL - Call your local BRP dealership | Model-Australia, Brezil, Europe

710001143

Unavailable

847

Housing

710001157

$17.66

849

Wire Seal

710001159

$6.45

850

Female Terminal

710001160

$5.14

881

Fuse 30 amp.

710001200

$7.37

888

Seal

710001230

$2.75

889

Seal

710001233

$2.55

890

Terminal

710001229

$3.02

891

Terminal

710001228

$2.72

894

Cap

710001225

$7.27

898

LOCK - Call your local BRP dealership

710001221

$8.68

917

Lock

710001323

$6.15

921

Female Terminal

710001340

$5.11

930

Wire Seal

515176621

$7.00

938

Female Terminal Housing 6 Circuits

278002299

$8.85

965

Wire Seal

710001427

$1.83

965

Wire Seal

710001427

$1.83

965

Wire Seal

710001427

$1.83

965

Wire Seal

710001427

$1.83

965

Wire Seal

710001427

$1.83

967

Foam

278002172

$5.49

981

Relay, 30 AMP

515176774

$19.20

999

Not Available As Spare Part - Friction Washer

Unavailable

1001

LOCK - Call your local BRP dealership

710001633

Unavailable

1003

Terminal

710001636

$3.98

1005

Cap

710001631

$1.37

1006

Female Terminal Housing, 48 Circuits

710001588

$39.62

1007

Female Terminal

710001589

$1.79

1009

Cover, 48 positions

710001591

$10.05

1010

Plug

710001592

$2.12

1011

Plug

710001593

$2.12

1028

Terminal | Canada/Usa

710001635

$3.98

1032

Female Terminal

710001727

$2.55

1037

Relay

715900824

$16.22

1042

Hex. Flange Elastic Nut M6

233261494

$1.26

1052

Housing

710002177

$3.98

1087

Terminal Joint

710001905

$1.83

1092

Housing

710001928

$14.97

1095

Terminal

710001931

$1.65

1096

Terminal

710001934

$4.51

1098

Seal

710001932

$3.15

1122

Housing

710002000

$5.86

1123

Housing Connector

710002001

$12.68

1125

Housing Connector

710002003

$12.68

1131

Lock

710002043

$0.85

1144

Fuse, 60 AMP

710002054

$23.05

1173

Housing

710001996

$46.12

1244

Heat Shrink

710002589

Unavailable

1245

Fuse, 25 Amps

710002590

$18.43

1246

Heat Shrink Tubing

710002588

Unavailable

1296

Female Housing 6 Circuits

710002706

$16.22

1297

Lock

710002705

$3.61

1302

Shrink Tubing

710002711

Unavailable

1308

Logo Fuse Relay

710002715

$10.66

BD

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

BD

Terminal

710001931

$1.65

BD

Housing Connector

710002001

$12.68

BN1

Heat Shrink

710002589

Unavailable

BN1

Terminal

710000913

$5.46

BP1

Heat Shrink

710002589

Unavailable

BP1

Terminal

710000913

$5.46

CC

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

CC

Lock

710000848

$3.98

CC

Male Housing, 6 Circuits

710000849

$7.55

CC

Terminal | Canada/Usa

710001635

$3.98

CI

Plug

515175812

$1.70

CI

Female Housing, 24 Circuits

515175801

$9.00

CI

Retainer Block

515175802

$10.66

CI

Wire Seal

515175803

$2.41

CI

Female Housing

710000399

$14.02

CI

Female Terminal

710001131

$7.00

D2

Diode

409012700

$10.83

D2

Heat Shrink

710002589

Unavailable

D4

Diode

409012700

$10.83

D4

Heat Shrink

710002589

Unavailable

D5

Diode

409012700

$10.83

D5

Heat Shrink

710002589

Unavailable

DB

Male Housing, 6 Circuits

515175673

$13.05

DB

Male Wedge, 6 Circuits

515175678

$5.11

DB

Female Terminal

278001665

$3.73

DB2

Sealing Cap

293000052

$2.55

DB2

Female Housing 6 Circuits

710002706

$16.22

DB2

Lock

710002705

$3.61

DB2

Male Terminal Housing, 6 Circuits

710001539

$15.57

DB2

Female Terminal

278001665

$3.73

DC1

Female Terminal

409010800

$0.95

DC1

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

DC2

Female Terminal

409010800

$0.95

DC2

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

DC3

Female Terminal

515175231

$4.12

DC3

Female Housing, 2 Circuits

515175658

$15.35

DC3

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

DC3

Male Housing, 2 Circuits

710000667

$7.48

DC4

Female Terminal

515175231

$4.12

DC4

Female Housing, 2 Circuits

515175658

$15.35

DC4

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

DC4

Male Housing, 2 Circuits

710000667

$7.48

DC6

Female Terminal

409007300

$0.36

DC6

Female Housing, 2 Circuits

278000217

$7.59

DC6

Male Connector, 2 Circuits

278000220

$11.02

DC6

Wire Seal

278000218

$3.48

DC6

Wire Seal

278000216

$2.55

DC6

Clip

710000992

$4.00

DC7

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

DC7

Housing

710001157

$17.66

DC7

Wire Seal

710001159

$6.45

DC7

Female Terminal

710001160

$5.14

DC7

Lock

710001323

$6.15

ECM

Female Terminal Housing, 48 Circuits

710001588

$39.62

ECM

Female Terminal

710001589

$1.79

ECM

Cover, 48 positions

710001591

$10.05

ECM

Plug

710001592

$2.12

ECM

Plug

710001593

$2.12

ECM

Female Terminal

710001727

$2.55

FP

Female Terminal

278001014

$2.72

FP

Female Housing, 4 Circuits

409209700

$12.97

FP

Wire Seal

278001013

$2.72

FP

Female Terminal

710001340

$5.11

FP

Wire Seal

515176621

$7.00

FRA

Female Terminal

515175231

$4.12

FRA

Female Housing, 2 Circuits

515175658

$15.35

FRA

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

FT

Male Terminal

409004300

$5.46

FT

Female Housing, 2 Circuits

278000217

$7.59

FT

Wire Seal

278000218

$3.48

FT

Clip

710000992

$4.00

HIBM

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

HIBM

Female Terminal

710000221

Unavailable

HIBM

Terminal

710001931

$1.65

HIBM

Housing

710002000

$5.86

HIC

Seal

710001230

$2.75

HIC

Seal

710001233

$2.55

HIC

Terminal

710001229

$3.02

HIC

Terminal

710001228

$2.72

HIC

Cap

710001225

$7.27

HIC

LOCK - Call your local BRP dealership

710001221

$8.68

HIC

Housing

710001928

$14.97

HIC5

Male Terminal | XT Models

278000222

$2.55

HIC5

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278000394

Unavailable

HIC5

Wire Seal

278001065

$6.03

HIC5

Clip

710000992

$4.00

HIC7

Male Terminal

409004300

$5.46

HIC7

Female Housing, 2 Circuits

278000217

$7.59

HIC7

Wire Seal

278000218

$3.48

HIC7

Clip

710000992

$4.00

OVR

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

OVR

Terminal

710001931

$1.65

OVR

Housing

710002000

$5.86

PDH

TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership

710001142

Unavailable

PDH

FEMALE TERMINAL - Call your local BRP dealership | Model-Australia, Brezil, Europe

710001143

Unavailable

PDH

Wire Seal

710001427

$1.83

PDL

TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership

710001142

Unavailable

PDL

FEMALE TERMINAL - Call your local BRP dealership | Model-Australia, Brezil, Europe

710001143

Unavailable

PDL

Wire Seal

710001427

$1.83

PF1

Wire Seal

278000999

$2.55

PF1

Seal

415128501

$1.51

PF1

Little Fuse, 5 Amperes

710000742

$7.24

PF1

Little Fuse, 5 Amperes

710000742

$7.24

PF1

Little Fuse, 5 Amperes

710000742

$7.24

PF1

Little Fuse, 5 Amperes

710000742

$7.24

PF1

Little Fuse, 5 Amperes

710000742

$7.24

PF1

Little Fuse, 5 Amperes

710000742

$7.24

PF1

Little Fuse, 5 Amperes

710000742

$7.24

PF1

Little Fuse, 5 Amperes

710000742

$7.24

PF1

Little Fuse, 7.5 Amperes

710000743

$8.02

PF1

Little Fuse, 7.5 Amperes

710000743

$8.02

PF1

Little Fuse, 10 Amperes

710000744

$7.24

PF1

Little Fuse, 10 Amperes

710000744

$7.24

PF1

Little Fuse, 15 Ampere

710000745

$6.77

PF1

Little Fuse, 15 Ampere

710000745

$6.77

PF1

Little Fuse, 15 Ampere

710000745

$6.77

PF1

Little Fuse, 30 Amperes

710000747

$6.77

PF1

Little Fuse, 30 Amperes

710000747

$6.77

PF1

Fuse Box Base Ass´y

415129856

$41.57

PF1

Fuse Puller

710000781

$8.29

PF1

Female Terminal

710000836

$5.46

PF1

Female Terminal

710000837

$4.32

PF1

Cap

710000840

$5.49

PF1

Fuse Cover

710001026

$17.52

PF1

Foam

278002172

$5.49

PF1

Relay, 30 AMP

515176774

$19.20

PF1

Relay, 30 AMP

515176774

$19.20

PF1

Relay

715900824

$16.22

PF1

Relay

715900824

$16.22

PF1

Relay

715900824

$16.22

PF1

Logo Fuse Relay

710002715

$10.66

PF1

Fuse, 25 Amps

710002590

$18.43

PF2

Fuse, 50 AMP

710001048

$5.52

PF2

Fuse, 60 AMP

710002054

$23.05

PF2

Fuse 30 amp.

710001200

$7.37

PF2

Not Available As Spare Part - Friction Washer

Unavailable

PF2

LOCK - Call your local BRP dealership

710001633

Unavailable

PF2

Terminal

710001636

$3.98

PF2

Hex. Flange Elastic Nut M6

233261494

$1.26

PF2

Cap

710001631

$1.37

PF2

Terminal Joint

710001905

$1.83

PF2

Housing

710001996

$46.12

PF21

Open Barrel Terminal

278001392

$4.12

PF21

Heat Shrink

710002589

Unavailable

PF21

Protector Cap

710000526

$10.14

PGH

TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership

710001142

Unavailable

PGH

FEMALE TERMINAL - Call your local BRP dealership | Model-Australia, Brezil, Europe

710001143

Unavailable

PGH

Wire Seal

710001427

$1.83

PGL

TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership

710001142

Unavailable

PGL

FEMALE TERMINAL - Call your local BRP dealership | Model-Australia, Brezil, Europe

710001143

Unavailable

PGL

Wire Seal

710001427

$1.83

PPS

Female Terminal

710001119

$4.32

PPS

Female Terminal Housing 6 Circuits

278002299

$8.85

RD1

Female Housing, 3 Circuits

710000879

$21.42

RD1

Cap

710000882

$9.19

RD1

Terminal

710001934

$4.51

RD1

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

RD1

Seal

710001932

$3.15

SB

Seal

278001482

$2.55

SB

Female Terminal

710001134

$6.03

SB

Housing

710002177

$3.98

SB

Lock

710002043

$0.85

SPSW

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

SPSW

Terminal

710001931

$1.65

SPSW

Housing

710002000

$5.86

SS1

Female Terminal

409010300

$4.12

SS2

Female Terminal

409010300

$4.12

STSW

Female Terminal

409012100

$3.73

STSW

Female Terminal Housing, 2 Circuits

409209200

Unavailable

STSW

Seal

409012300

$4.38

SW1

Female Terminal

409010300

$4.12

SW1

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

SW2

Female Terminal

409010300

$4.12

SW2

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

SW3

Female Terminal

710000038

$4.60

SW3

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

SW4

Open Barrel

278000992

$1.79

SW4

Heat Shrink Tubing

710002588

Unavailable

SWW

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

SWW

Terminal

710001931

$1.65

SWW

Housing Connector

710002003

$12.68

SWWRC

Female Terminal

278000223

$2.55

SWWRC

Male Housing, 3 Circuits

278000273

$7.59

SWWRC

Wire Seal

278001065

$6.03
