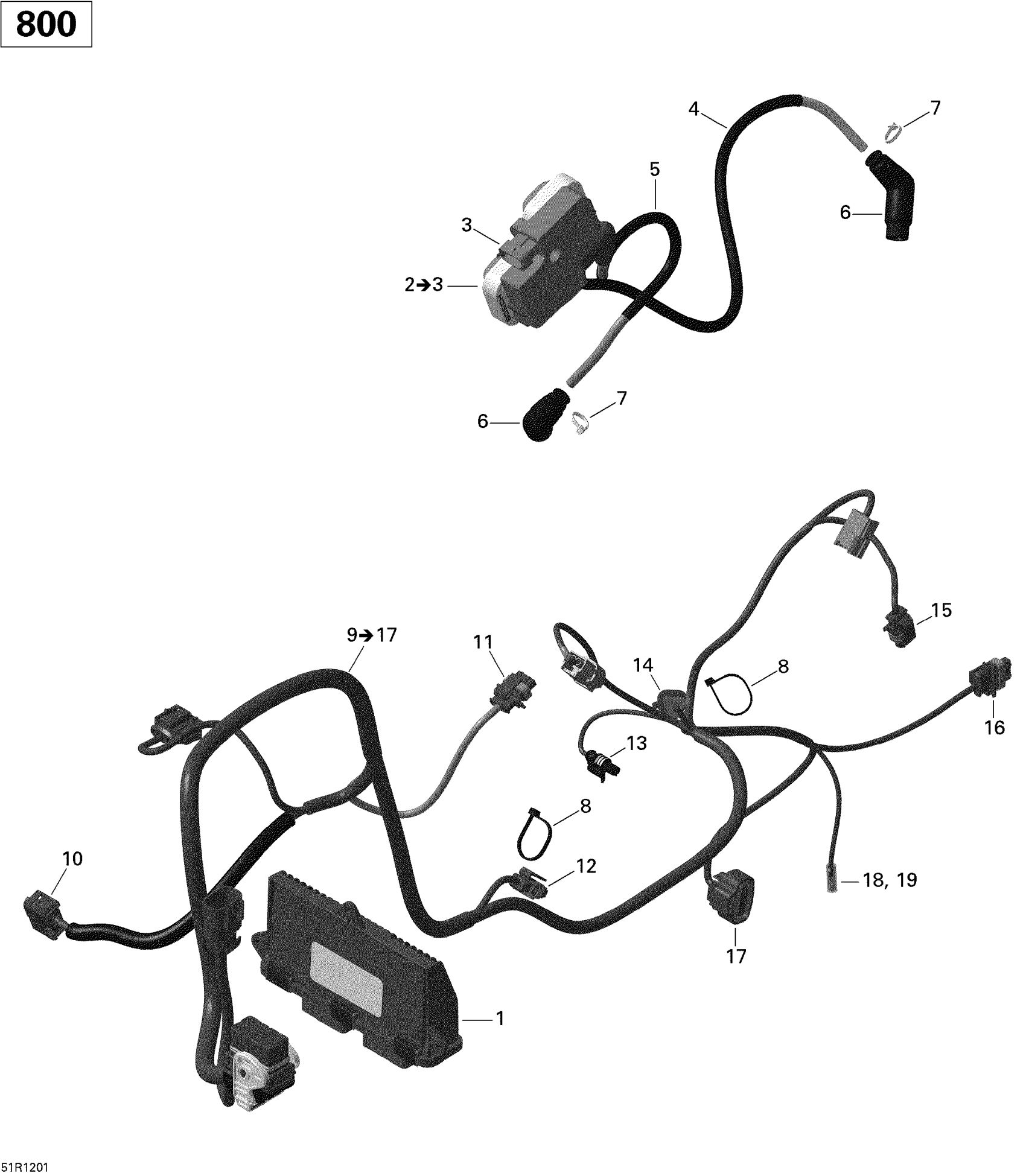

Can-Am Commander STD, XT, 800R EFI, 2012 Engine Harness And Electronic Module Diagram

ECM CONNECTOR - Call your local BRP dealership | Except Europe

420266992

Unavailable

ECM Connector | Europe

420266993

$1,453.82

Ignition Coil

278001546

$129.32

Housing

710000568

$10.83

Spark Plug Cable, 790 mm, Rear

420665333

$54.58

Spark Plug Cable, 790 mm, Rear

420665333

$54.58

Spark Plug Connector

420265248

$31.34

Tie Rap

420866710

$4.36

Tie Rap

420866714

$1.56

Engine Wiring Harness | Includes 9 to 17

420666333

$673.82

Housing

710003731

$7.37

Male Housing, 3 Circuits

278000997

$15.57

Male Housing, 2 Circuits

278001005

$15.57

Male Housing, 1 Circuit

278001012

$12.65

Male Housing

278002378

$10.91

Male Housing, 2 Circuits

278001005

$15.57

Male Housing, 3 Circuits

278000997

$15.57

Male Housing, 4 Circuits

710000329

$14.75

Female Terminal | DS 650 X

278001009

$2.55

Insulated Sheath

278001007

$3.22
